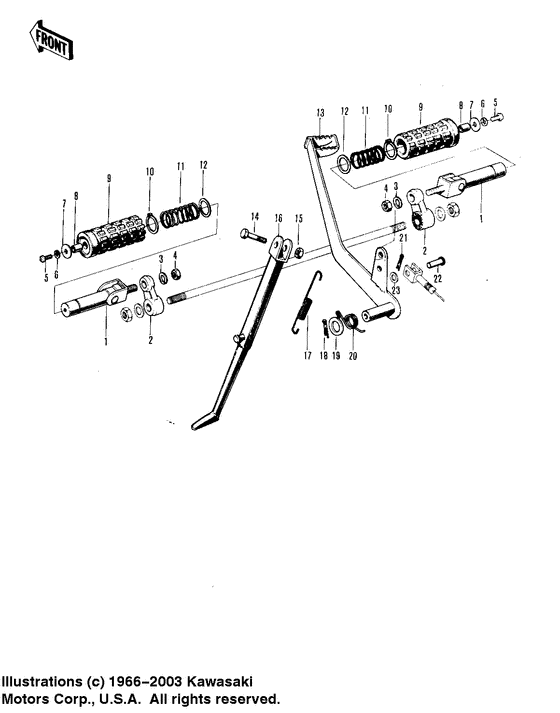

Footrests/stand/brake pedal ('71-'72 f8/f8-a) Diagram Kawasaki Model "F" F8 Bison
- Year
- 1972
- Model code
- F8-A
- Sales region
- USA
- Engine Capacity
- 250
- Model
- F8
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34002-051
BAR ASSY,FOOTREST
Bar assy,footrest; |
34002-051 |
— | ||
|
2
|
2
34002-051
BAR ASSY,FOOTREST
Bar assy,footrest; |
34002-051 |
— | ||
|
3
|
3
461F1000 WASHER SPRING 10MMWasher spring 10mm; |
461F1000 |
US $0.95 |
||
| replacement | |||||
|
3
|
3
461DA1000 WASHER-SPRINGWasher spring 10mm; |
461DA1000 |
from US $0.90 |
||
|
4
|
4
315B1000 NUT 10MMNut 10mm; |
315B1000 |
US $1.11 |
||
| replacement | |||||
|
4
|
4
315AA1000 NUT-HEX-FINENut 10mm; |
315AA1000 |
from US $0.92 |
||
|
5
|
5
112G0618
BOLT-UPSET
|
112G0618 |
— | ||
| replacement | |||||
|
5
|
5
112BA0618 BOLT-UPSET |
112BA0618 |
from US $0.95 |
||
|
6
|
6
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
6
|
6
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
7
|
7
92022-125
WASHER 6.5X20X1.6T
Washer 6.5x20x1.6t; |
92022-125 |
— | ||
| replacement | |||||
|
7
|
7
92200-0283 WASHER,6.5X20X1.6Washer 6.5x20x1.6t; |
92200-0283 |
from US $0.72 |
||
|
8
|
8
92027-103 COLLAR |
92027-103 |
from US $2.38 |
||
|
9
|
9
92076-023
RUBBER-FOOTREST
|
92076-023 |
— | ||
|
10
|
10
480J1600 CIRCLIP 16MMCirclip 16mm; |
480J1600 |
from US $1.43 |
||
|
11
|
11
34006-002
SPRING FOOTREST PEG
|
34006-002 |
— | ||
|
12
|
12
92022-049
WASHER FOLDING PEG
|
92022-049 |
— | ||
|
13
|
13
43001-036-10
PEDAL-BRAKE,BLACK
Pedal-brake,black; |
43001-036-10 |
— | ||
|
14
|
14
92001-1252
BOLT,HEX HEAD 10X35
Bolt,hex head 10x35; |
92001-1252 |
— | ||
|
15
|
15
315B1000 NUT 10MMNut 10mm; |
315B1000 |
US $1.11 |
||
| replacement | |||||
|
15
|
15
315AA1000 NUT-HEX-FINENut 10mm; |
315AA1000 |
from US $0.92 |
||
|
16
|
16
34024-025
STAND-SIDE
|
34024-025 |
— | ||
|
17
|
17
34023-005 SPRING MAIN STAND |
34023-005 |
from US $8.31 |
||
|
18
|
18
550D3030 PIN COTTER 3.0X30Pin cotter 3.0x30; |
550D3030 |
US $1.27 |
||
| replacement | |||||
|
18
|
18
550AA3030 PIN-COTTER,3.0X30Pin cotter 3.0x30; |
550AA3030 |
from US $0.95 |
||
|
19
|
19
92022-085 WASHER BRAKE PEDALWasher brake pedal; |
92022-085 |
from US $3 |
||
|
20
|
20
43005-013
SPRING-BRAKE PEDAL
|
43005-013 |
— | ||
|
21
|
21
550D2015
PIN-COTTER,2.0X15
Pin cotter 2.0x15; |
550D2015 |
— | ||
| replacement | |||||
|
21
|
21
550AA2015 PIN-COTTER,2.0X15Pin cotter 2.0x15; |
550AA2015 |
from US $0.63 |
||
|
23
|
23
410B0600
WASHER-PLAIN-SMALL
Washer plain 6mm; |
410B0600 |
— | ||
| replacement | |||||
|
23
|
23
410AA0600 WASHER-PLAIN-SMALLWasher plain 6mm; |
410AA0600 |
from US $0.79 |
||
