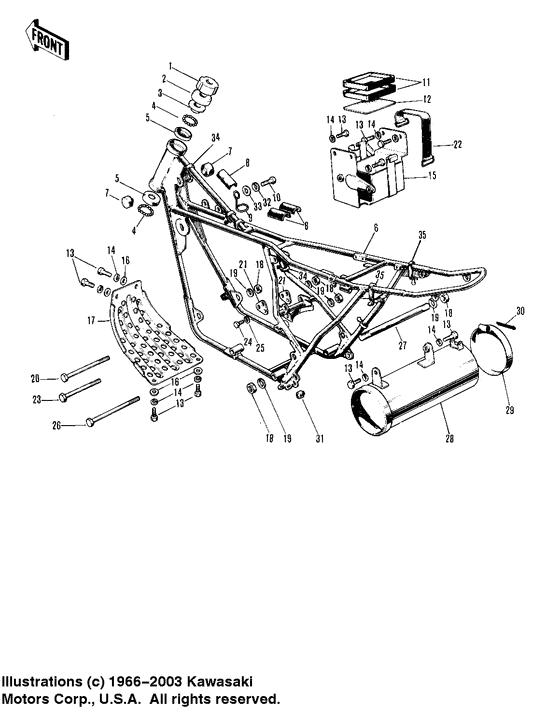

Frame/frame fittings ('71-'72 f8/f8-a) Diagram Kawasaki Model "F" F8 Bison
- Year
- 1972
- Model code
- F8-A
- Sales region
- USA
- Engine Capacity
- 250
- Model
- F8
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
92090-006 NUT STEERING STEM LCK |
92090-006 |
from US $10.67 |
||
|
2
|
2
46098-005
CAP STEERING STEM
|
46098-005 |
— | ||
|
3
|
3
92047-003
CONE STERNG BERG UPP
|
92047-003 |
— | ||
|
4
|
4
600A0800 BALL,6.35MMBall steel 1/4'; |
600A0800 |
from US $0.91 |
||
|
5
|
5
92048-005 RACE STEERING BEARINGRace steering bearing; |
92048-005 |
from US $10.77 |
||
|
6
|
6
32002-032 FRAMEE/no 11287~ |
32002-032 |
US $547.11 |
||
|
7
|
7
92075-050
DAMPER RUBB FUEL TANK
|
92075-050 |
— | ||
|
8
|
8
51067-002
MAT FUEL TANK
|
51067-002 |
— | ||
|
9
|
9
92037-108
CLAMP
|
92037-108 |
— | ||
|
10
|
10
112G0610
BOLT,6X10
Bolt,6x10; |
112G0610 |
— | ||
| replacement | |||||
|
10
|
10
112BA0610 BOLT-UPSETBolt,6x10; |
112BA0610 |
from US $0.92 |
||
|
11
|
11
32103018
MAT-BATTERY
|
32103018 |
— | ||
|
12
|
12
32103-017 MAT-BATTERY |
32103-017 |
US $1.37 |
||
|
13
|
13
112G0612
BOLT-UPSET,6X12
Bolt-upset,6x12; |
112G0612 |
— | ||
| replacement | |||||
|
13
|
13
112BA0612 BOLT-UP SETBolt-upset,6x12; |
112BA0612 |
from US $1.25 |
||
|
14
|
14
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
14
|
14
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
15
|
15
32097-018 CASE-BATTERY |
32097-018 |
US $31.52 |
||
|
16
|
16
92022-125
WASHER 6.5X20X1.6T
Washer 6.5x20x1.6t; |
92022-125 |
— | ||
| replacement | |||||
|
16
|
16
92200-0283 WASHER,6.5X20X1.6Washer 6.5x20x1.6t; |
92200-0283 |
from US $0.72 |
||
|
17
|
17
55011-011
GUARD-ENGINE
|
55011-011 |
— | ||
|
18
|
18
314B1200
NUT-HEX-FINE
|
314B1200 |
— | ||
| replacement | |||||
|
18
|
18
314AA1200 NUT-HEX-FINE |
314AA1200 |
from US $1.09 |
||
|
19
|
19
461F1200 WASHER-SPRING,12MMWasher spring 12mm; |
461F1200 |
US $1.30 |
||
| replacement | |||||
|
19
|
19
461DA1200 WASHER-SPRING,12MMWasher spring 12mm; |
461DA1200 |
from US $0.86 |
||
|
20
|
20
113B12163A
BOLT-HEX HEAD,12X163
Bolt-hex head,12x163; |
113B12163A |
— | ||
|
21
|
21
32030-020
PLATE-ENGINE MOUNT
|
32030-020 |
— | ||
|
22
|
22
92072-012 BAND TOOLBand tool; |
92072-012 |
from US $4.80 |
||
|
23
|
23
113B12151A
BOLT-HEX HEAD,12X151
Bolt-hex head,12x151; |
113B12151A |
— | ||
|
24
|
24
115G0820 BOLT-SMALL-UPSETBolt,8x20; |
115G0820 |
US $48.10 |
||
| replacement | |||||
|
24
|
24
115BA0820 BOLT-SMALL-UPSETBolt,8x20; |
115BA0820 |
from US $1.12 |
||
|
25
|
25
461F0800
WASHER-SPRING,8MM
Washer spring 8mm; |
461F0800 |
— | ||
| replacement | |||||
|
25
|
25
461DA0800 WASHER-SPRING,8MMWasher spring 8mm; |
461DA0800 |
from US $0.48 |
||
|
26
|
26
113B12254A
BOLT HEX HEAD 12X254
|
113B12254A |
— | ||
|
27
|
27
92006-002
STUD
|
92006-002 |
— | ||
|
28
|
28
32098-012 BOX-TOOLL=200 m/m, l=187 m/m |
32098-012 |
US $29.34 |
||
|
29
|
29
32099-005
CAP-TOOL CASE
|
32099-005 |
— | ||
|
30
|
30
550D2030 PIN COTTER 2.0X30 |
550D2030 |
US $1.10 |
||
|
31
|
31
92074-005
PLUG RUBBER
|
92074-005 |
— | ||
|
32
|
32
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
32
|
32
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
33
|
33
410B0600
WASHER-PLAIN-SMALL
Washer plain 6mm; |
410B0600 |
— | ||
| replacement | |||||
|
33
|
33
410AA0600 WASHER-PLAIN-SMALLWasher plain 6mm; |
410AA0600 |
from US $0.79 |
||
|
34
|
34
92072-013
BAND RUBBER
|
92072-013 |
— | ||
|
35
|
35
92072-018
BAND RUBBER
|
92072-018 |
— | ||
