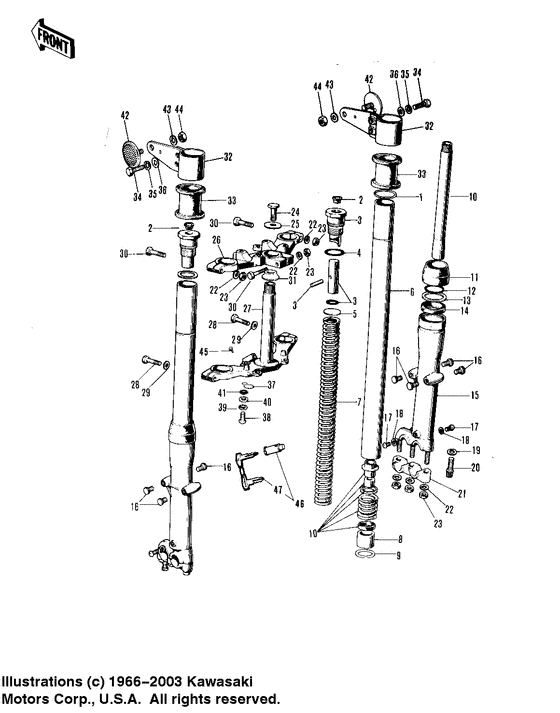

Front fork ('71-'72 f8/f8-a) Diagram Kawasaki Model "F" F8 Bison
- Year
- 1972
- Model code
- F8-A
- Sales region
- USA
- Engine Capacity
- 250
- Model
- F8
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44044-009
CIRCLIP
|
44044-009 |
— | ||
|
2
|
2
14039001 CAP CARB MOUNT HOLECap carb mount hole; |
14039001 |
US $61.20 |
||
|
3
|
3
44041-030 BOLT-FORK TOP |
44041-030 |
US $63.38 |
||
|
4
|
4
44046-015
'O' RING FORK TOP
|
44046-015 |
— | ||
|
5
|
5
44029-015 WASHER-FORK SPRG SEAT |
44029-015 |
US $0.45 |
||
|
6
|
6
44013-022
TUBE-FORK INNER
|
44013-022 |
— | ||
|
7
|
7
44026-028 SPRING-FORK |
44026-028 |
US $32.40 |
||
|
8
|
8
44018-003 PISTON FORK |
44018-003 |
US $15.64 |
||
|
9
|
9
44044-008 CIRCLIP FORK PISTON |
44044-008 |
US $9.36 |
||
|
10
|
10
44022-003 CYLINDER-FORK |
44022-003 |
US $127.98 |
||
|
11
|
11
44010-017
DUST SHIELD
|
44010-017 |
— | ||
|
12
|
12
44044-005 CIRCLIP OIL SEAL FIT |
44044-005 |
US $9.05 |
||
|
13
|
13
44043-023 WASHER OIL SEAL FIT |
44043-023 |
US $2.95 |
||
|
14
|
14
44009-020
OIL SEAL
Oil seal,fork; |
44009-020 |
— | ||
| replacement | |||||
|
14
|
14
44009-026 OIL SEALOil seal,fork; |
44009-026 |
from US $26.76 |
||
|
15
|
15
44005-030-80 TUBE,LH,FORK OUTERTube,lh,fork outer; |
44005-030-80 |
US $282.82 |
||
|
16
|
16
44062-002 CAP |
44062-002 |
US $2.41 |
||
|
17
|
17
220B0408
SCREW-PAN-CROS
Screw pan head 4x8; |
220B0408 |
— | ||
| replacement | |||||
|
17
|
17
220AA0408 SCREW-PAN-CROSScrew pan head 4x8; |
220AA0408 |
from US $0.79 |
||
|
18
|
18
44045002 GASKET FORK DRAIN PLGGasket fork drain plg; |
44045002 |
from US $3.96 |
||
|
19
|
19
44045-030 GASKET FORK CYL BOLT |
44045-030 |
US $3.35 |
||
|
20
|
20
44041-027 BOLT FORK CYLINDER |
44041-027 |
US $4.82 |
||
| replacement | |||||
|
20
|
20
120CA0820 BOLT-SOCKET |
120CA0820 |
from US $1.27 |
||
|
21
|
21
44063-001 HOLDER-FRONT AXLE |
44063-001 |
US $23.26 |
||
|
22
|
22
461F0800
WASHER-SPRING,8MM
Washer spring 8mm; |
461F0800 |
— | ||
| replacement | |||||
|
22
|
22
461DA0800 WASHER-SPRING,8MMWasher spring 8mm; |
461DA0800 |
from US $0.48 |
||
|
23
|
23
311B0800
Nut,8mm
Nut,8mm; |
311B0800 |
— | ||
| replacements | |||||
|
23
|
23
317AA0800 NUT-HEX-SMALLNut,8mm; |
317AA0800 |
from US $0.94 |
||
|
23
|
23
311AA0800 NUT-HEX-SMALLNut,8mm; |
311AA0800 |
US $0.40 |
||
|
24
|
24
44041007 BOLT STRNG STEM HEAD |
44041007 |
US $14.89 |
||
|
25
|
25
44043016
WASHER STRNG STEM HD
|
44043016 |
— | ||
|
26
|
26
44039-032 HEAD-STEERING STEM |
44039-032 |
US $132.19 |
||
|
27
|
27
44037-032 STEM-STEERING |
44037-032 |
US $179.26 |
||
|
28
|
28
113B1236A BOLT-HEX HEAD,12X36Bolt-hex head,12x36; |
113B1236A |
US $24.10 |
||
|
29
|
29
461F1200 WASHER-SPRING,12MMWasher spring 12mm; |
461F1200 |
US $1.30 |
||
| replacement | |||||
|
29
|
29
461DA1200 WASHER-SPRING,12MMWasher spring 12mm; |
461DA1200 |
from US $0.86 |
||
|
30
|
30
92001-1578
BOLT,FLANGED,8X40
|
92001-1578 |
— | ||
| replacement | |||||
|
30
|
30
92002-1838 BOLT,FLANGED,8X40 |
92002-1838 |
from US $4.12 |
||
|
31
|
31
92047-010 CONE STERNG BERG LOWCone sterng berg low; |
92047-010 |
from US $9.66 |
||
|
32
|
32
23064-001
BRACKET-HEAD LAMP
Flat black |
23064-001 |
— | ||
|
33
|
33
92075-059
DAMPER RUBBER
|
92075-059 |
— | ||
|
34
|
34
112G0618
BOLT-UPSET
|
112G0618 |
— | ||
| replacement | |||||
|
34
|
34
112BA0618 BOLT-UPSET |
112BA0618 |
from US $0.95 |
||
|
35
|
35
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
35
|
35
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
36
|
36
410B0600
WASHER-PLAIN-SMALL
Washer plain 6mm; |
410B0600 |
— | ||
| replacement | |||||
|
36
|
36
410AA0600 WASHER-PLAIN-SMALLWasher plain 6mm; |
410AA0600 |
from US $0.79 |
||
|
37
|
37
92037-046
CLAMP-CABLE
Clamp-cable; |
92037-046 |
— | ||
|
38
|
38
112B0614
BOLT-UPSET
Bolt-upset 6x14; |
112B0614 |
— | ||
| replacements | |||||
|
38
|
38
112AA0614 BOLT-UPSETBolt-upset 6x14; |
112AA0614 |
from US $0.82 |
||
|
38
|
38
112BA0614 BOLT-UPSETBolt-upset 6x14; |
112BA0614 |
from US $1.43 |
||
|
39
|
39
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
39
|
39
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
40
|
40
410B0600
WASHER-PLAIN-SMALL
Washer plain 6mm; |
410B0600 |
— | ||
| replacement | |||||
|
40
|
40
410AA0600 WASHER-PLAIN-SMALLWasher plain 6mm; |
410AA0600 |
from US $0.79 |
||
|
41
|
41
464H0600
WASHER LOCK 6MM
|
464H0600 |
— | ||
|
42
|
42
28012-004
Reflector-reflex
|
28012-004 |
— | ||
|
43
|
43
461F0500
WASHER-SPRING
Washer spring 5mm; |
461F0500 |
— | ||
| replacement | |||||
|
43
|
43
461DA0500 WASHER-SPRINGWasher spring 5mm; |
461DA0500 |
from US $0.48 |
||
|
44
|
44
311B0500
NUT-HEX,5MM
Nut,5mm; |
311B0500 |
— | ||
| replacement | |||||
|
44
|
44
311AA0500 NUT-HEX,5MMNut,5mm; |
311AA0500 |
from US $0.78 |
||
|
45
|
45
92099-001 SCREW RIVETScrew rivet; |
92099-001 |
from US $2.53 |
||
|
46
|
46
27016-5025
LOCK ASSY,STEERING
Lock assy,steering; |
27016-5025 |
— | ||
|
47
|
47
27008-034-35 KEY SET NO.235Ref. grid f6, #14 for key blanks. |
27008-034-35 |
US $7.07 |
||
|
