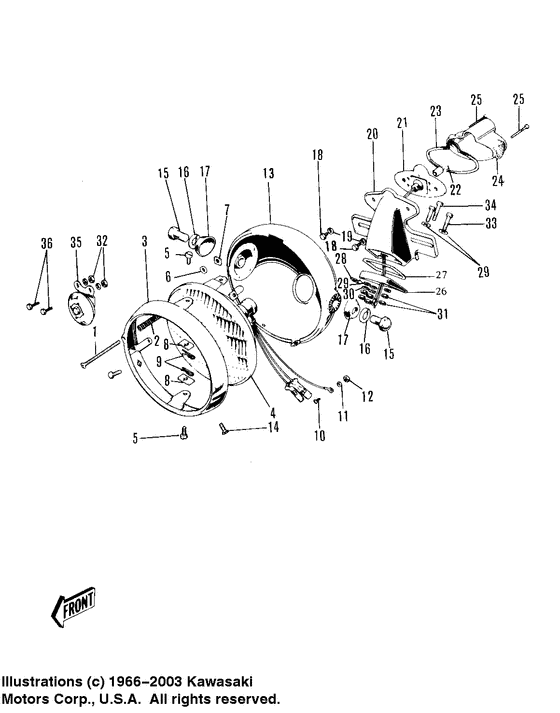

Headlight/taillight Diagram Kawasaki Model "F" F8 Bison
- Year
- 1972
- Model code
- F8-A
- Sales region
- USA
- Engine Capacity
- 250
- Model
- F8
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
23019021 SCREW FORCUS ADJUSTScrew forcus adjust; |
23019021 |
from US $3.17 |
||
|
2
|
2
23014005 SPRING FOCUS ADJUSTSpring focus adjust; |
23014005 |
from US $3.01 |
||
|
3
|
3
23006-014
RIM HEAD LAMP
|
23006-014 |
— | ||
|
4
|
4
23007-022
SEALED BEAM UNIT
|
23007-022 |
— | ||
|
5
|
5
23019-018
SCREW LENS UNIT FITT
|
23019-018 |
— | ||
|
6
|
6
23021004 WASHER |
23021004 |
from US $3.48 |
||
|
7
|
7
23020-016
NUT
|
23020-016 |
— | ||
|
8
|
8
23020-009 NUT LENS UNIT FITTING |
23020-009 |
US $3.15 |
||
|
9
|
9
23022-001 PIN LENS UNIT FITTING |
23022-001 |
US $2.93 |
||
|
10
|
10
220B0306
SCREW-PAN-CROS,3X6
Screw-pan-head 3x6; |
220B0306 |
— | ||
| replacement | |||||
|
10
|
10
220AA0306 SCREW-PAN-CROS,3X6Screw-pan-head 3x6; |
220AA0306 |
from US $0.78 |
||
|
11
|
11
461F0300
WASHER SPRING 3MM
Washer spring 3mm; |
461F0300 |
— | ||
| replacement | |||||
|
11
|
11
461DA0300 WASHER-SPRINGWasher spring 3mm; |
461DA0300 |
from US $0.78 |
||
|
12
|
12
311B0300 NUT-HEX |
311B0300 |
from US $0.16 |
||
| replacement | |||||
|
12
|
12
311AA0300 NUT-HEX |
311AA0300 |
from US $0.73 |
||
|
13
|
13
23005-022-21
BODY-HEAD LAMP,BLACK
Body-head lamp,black; Flat black |
23005-022-21 |
— | ||
|
14
|
14
222E0510
SCREW OVL CNTSNK 5X10
Screw ovl cntsnk 5x10; |
222E0510 |
— | ||
|
15
|
15
92007-045
BOLT,HEX HEAD,10X25
Bolt,hex head,10x25; |
92007-045 |
— | ||
|
16
|
16
411B1000 WASHER-PLAIN,10MMWasher plain 10mm; |
411B1000 |
from US $1.26 |
||
| replacement | |||||
|
16
|
16
411AA1000 WASHER-PLAIN,10MMWasher plain 10mm; |
411AA1000 |
from US $0.72 |
||
|
17
|
17
92075-058
DAMPER RUBBER N.L.A.
|
92075-058 |
— | ||
|
18
|
18
110N0510A BOLT HEX HEAD 5X10 |
110N0510A |
US $26.60 |
||
|
19
|
19
461F0500
WASHER-SPRING
Washer spring 5mm; |
461F0500 |
— | ||
| replacement | |||||
|
19
|
19
461DA0500 WASHER-SPRINGWasher spring 5mm; |
461DA0500 |
from US $0.48 |
||
|
20
|
20
23036-007-10 BKT LICENSE PLT BLACKBlack |
23036-007-10 |
US $59.31 |
||
|
21
|
21
23027-009
SOCKET TAIL LAMP N.L.A.
|
23027-009 |
— | ||
|
22
|
22
92069-023
BULB 6V 3/21CP
|
92069-023 |
— | ||
|
23
|
23
23028-008
GASKET TAIL LAMP
|
23028-008 |
— | ||
|
24
|
24
23026-010
LENS TAIL LAMP
|
23026-010 |
— | ||
|
25
|
25
220E0450 SCREW PAN HEAD 4X50Screw pan head 4x50; |
220E0450 |
from US $1.24 |
||
|
26
|
26
35031-005 STAY-TAIL LAMP |
35031-005 |
US $14.09 |
||
|
27
|
27
35016-004 DAMPER RUBBER |
35016-004 |
US $2.32 |
||
|
28
|
28
35024-002 CLIP WIRING HARNESS |
35024-002 |
US $2.21 |
||
|
29
|
29
92022-125
WASHER 6.5X20X1.6T
Washer 6.5x20x1.6t; |
92022-125 |
— | ||
| replacement | |||||
|
29
|
29
92200-0283 WASHER,6.5X20X1.6Washer 6.5x20x1.6t; |
92200-0283 |
from US $0.72 |
||
|
30
|
30
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
30
|
30
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
31
|
31
312B0600 NUT-HEXNut 6mm; |
312B0600 |
US $0.95 |
||
| replacement | |||||
|
31
|
31
312AA0600 NUT-HEXNut 6mm; |
312AA0600 |
from US $0.94 |
||
|
32
|
32
311B0600
NUT-HEX,6MM
Nut 6mm; |
311B0600 |
— | ||
| replacement | |||||
|
32
|
32
311AA0600 NUT-HEX,6MMNut 6mm; |
311AA0600 |
from US $0.63 |
||
|
33
|
33
110N0632
BOLT-HEX HEAD,6X32
Bolt-hex head,6x32; |
110N0632 |
— | ||
|
34
|
34
112G0640
BOLT-UPSET,6X40
Bolt-upset,6x40; |
112G0640 |
— | ||
|
35
|
35
27003-062 HORN |
27003-062 |
US $44.06 |
||
|
36
|
36
112G0620
BOLT-UPSET
Bolt-upset,6x20; |
112G0620 |
— | ||
| replacement | |||||
|
36
|
36
112BA0620 BOLT-UPSETBolt-upset,6x20; |
112BA0620 |
from US $0.95 |
||
