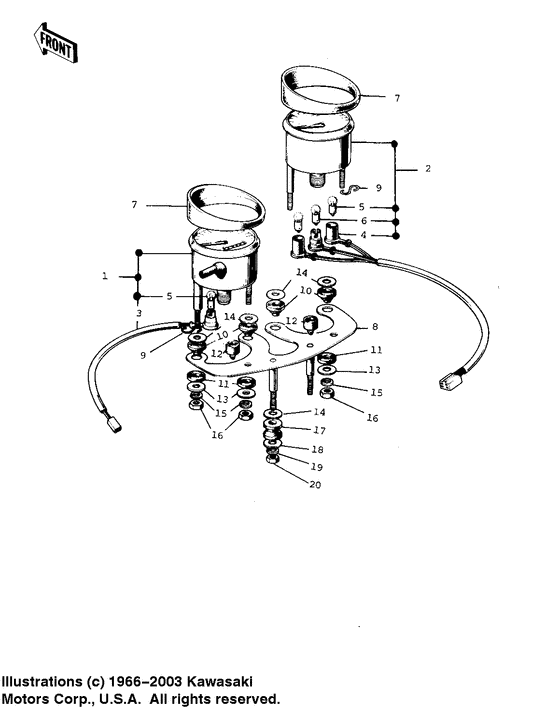

Meters Diagram Kawasaki Model "F" F8 Bison
- Year
- 1972
- Model code
- F8-A
- Sales region
- USA
- Engine Capacity
- 250
- Model
- F8
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
25001-045
SPEEDOMETER ASSY,MPH
Speedometer assy,mph; Mile/h indicator |
25001-045 |
— | ||
|
2
|
2
25015-009
TACHOMETER ASSY
|
25015-009 |
— | ||
|
3
|
3
25011-015
SOCKET-SPEEDOMETER
|
25011-015 |
— | ||
|
4
|
4
25011-016
SOCKET-TACHOMETER
|
25011-016 |
— | ||
|
5
|
5
92069-053 BULB-6V 3WBulb-6v 3w; |
92069-053 |
US $5.44 |
||
|
6
|
6
92069-024 BULB 6V 1.5WBulb 6v 1.5w; |
92069-024 |
from US $2.95 |
||
| replacement | |||||
|
6
|
6
92069-053 BULB-6V 3WBulb 6v 1.5w; |
92069-053 |
US $5.44 |
||
|
7
|
7
25012-003 COVER-SPEEDOMETER |
25012-003 |
US $21.15 |
||
|
8
|
8
25008-009
BRACKET SPEEDOMETER
|
25008-009 |
— | ||
|
9
|
9
25022-002
CLAMP CABLE
|
25022-002 |
— | ||
|
10
|
10
92075-065
DAMPER RUBBER
|
92075-065 |
— | ||
|
11
|
11
92075-066
DAMPER RUBBER
|
92075-066 |
— | ||
|
12
|
12
92075-035 DAMPER, RUBBERDamper rubb speedmetr; |
92075-035 |
from US $3.32 |
||
|
13
|
13
92022-104 WASHER,5.5X20X1.2Washer pl 5.5x20x1.2; I.d=5.5 |
92022-104 |
from US $2.69 |
||
| replacement | |||||
|
13
|
13
92022-1405 WASHER,5.5X20X1.2Washer pl 5.5x20x1.2; I.d=5.5 |
92022-1405 |
from US $2.69 |
||
|
14
|
14
411B0800
WASHER PLAIN 8MM
Washer plain 8mm; |
411B0800 |
— | ||
| replacement | |||||
|
14
|
14
411AA0800 WASHER-PLAINWasher plain 8mm; |
411AA0800 |
from US $0.72 |
||
|
15
|
15
461F0500
WASHER-SPRING
Washer spring 5mm; |
461F0500 |
— | ||
| replacement | |||||
|
15
|
15
461DA0500 WASHER-SPRINGWasher spring 5mm; |
461DA0500 |
from US $0.48 |
||
|
16
|
16
311B0500
NUT-HEX,5MM
Nut,5mm; |
311B0500 |
— | ||
| replacement | |||||
|
16
|
16
311AA0500 NUT-HEX,5MMNut,5mm; |
311AA0500 |
from US $0.78 |
||
|
17
|
17
92075-024 DAMPER RUBB SPEEDMETRDamper rubb speedmetr; |
92075-024 |
from US $3.33 |
||
|
18
|
18
92022-125
WASHER 6.5X20X1.6T
Washer 6.5x20x1.6t; |
92022-125 |
— | ||
| replacement | |||||
|
18
|
18
92200-0283 WASHER,6.5X20X1.6Washer 6.5x20x1.6t; |
92200-0283 |
from US $0.72 |
||
|
19
|
19
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
19
|
19
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
20
|
20
311B0600
NUT-HEX,6MM
Nut 6mm; |
311B0600 |
— | ||
| replacement | |||||
|
20
|
20
311AA0600 NUT-HEX,6MMNut 6mm; |
311AA0600 |
from US $0.63 |
||
