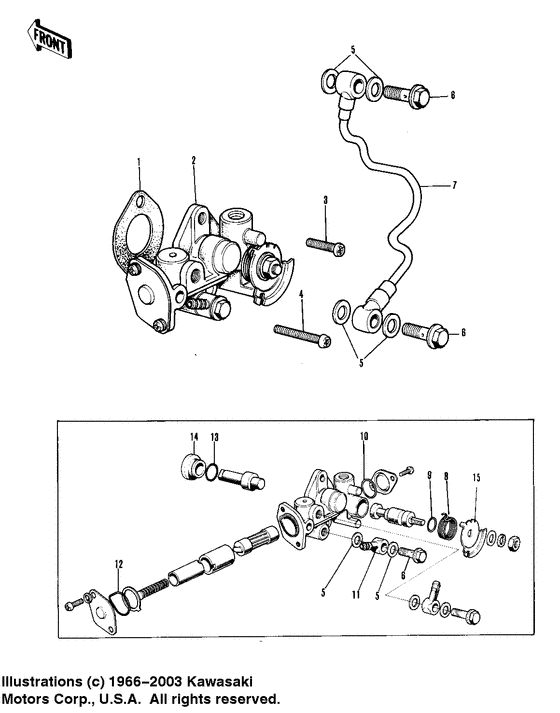

Oil pump Diagram Kawasaki Model "F" F8 Bison
- Year
- 1972
- Model code
- F8-A
- Sales region
- USA
- Engine Capacity
- 250
- Model
- F8
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11060-1160 GASKET,OIL PUMPGasket,oil pump; |
11060-1160 |
from US $3.31 |
||
|
2
|
2
16082-028 OIL PUMP ASSY |
16082-028 |
US $143.62 |
||
|
3
|
3
220B0514
SCREW-PAN-CROS
|
220B0514 |
— | ||
| replacement | |||||
|
3
|
3
220AA0514 SCREW-PAN HEAD,5X14 |
220AA0514 |
from US $0.79 |
||
|
4
|
4
220B0528 SCREW-PAN-CROSScrew pan cross,5x28; |
220B0528 |
US $0.63 |
||
| replacement | |||||
|
4
|
4
220AA0528 SCREW-PAN-CROSScrew pan cross,5x28; |
220AA0528 |
from US $0.62 |
||
|
5
|
5
92022-077 WASHER,6.1X12X1Washer oil pump banjo; |
92022-077 |
from US $2.53 |
||
|
6
|
6
92060-013 BOLT,BANJO,6X16Bolt-banjo,6mm; |
92060-013 |
from US $4.59 |
||
| replacement | |||||
|
6
|
6
92150-1982 BOLT,BANJO,6X16Bolt-banjo,6mm; |
92150-1982 |
from US $3.80 |
||
|
7
|
7
16134-010
PIPE-OIL
|
16134-010 |
— | ||
|
8
|
8
16093-004
SPRING OIL PUMP LEVER
|
16093-004 |
— | ||
|
10
|
10
16090-003
0 RING,LOWER CAP
"0" ring,lower cap; |
16090-003 |
— | ||
|
11
|
11
92061-009 CONNECTOR BANJOConnector banjo; |
92061-009 |
from US $10.77 |
||
|
12
|
12
16088-002 0 RING,UPPER CAP"0" ring,upper cap; |
16088-002 |
from US $6.06 |
||
|
13
|
13
16090-002 0 RING,OIL PUMP SHT"0" ring,oil pump sht; |
16090-002 |
from US $4.35 |
||
|
14
|
14
16091-001 OIL SEAL OIL PUMP SHTOil seal oil pump sht; |
16091-001 |
from US $4.35 |
||
|
15
|
15
16096-008
LEVER-OIL PUMP CABLE
|
16096-008 |
— | ||
