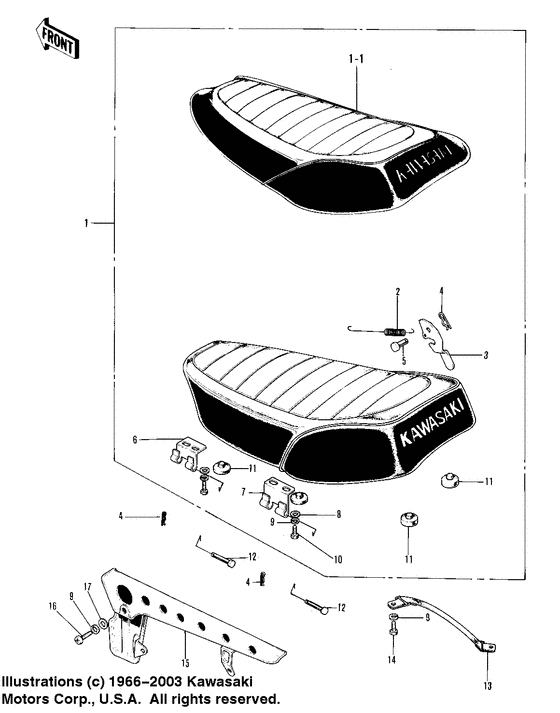

Seat/chain cover Diagram Kawasaki Model "F" F8 Bison
- Year
- 1972
- Model code
- F8-A
- Sales region
- USA
- Engine Capacity
- 250
- Model
- F8
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53002-033 SEAT ASSY-DUAL |
53002-033 |
US $202.37 |
||
|
2
|
2
53012-013
SPRING,HOOK
.spring,hook; |
53012-013 |
— | ||
|
3
|
3
53008-008
HOOK
.hook; |
53008-008 |
— | ||
|
4
|
4
92041-003 COTTER PIN.cotter pin; |
92041-003 |
from US $3.02 |
||
| replacement | |||||
|
4
|
4
554DA0600 PIN-SNAP.cotter pin; |
554DA0600 |
from US $1.36 |
||
|
5
|
5
53011-001
PIN DUAL SEAT PIVOT
.pin dual seat pivot; |
53011-001 |
— | ||
|
6
|
6
53009-015
HINGE
.hinge; L=.32 mm |
53009-015 |
— | ||
|
7
|
7
53009-016
HINGE
L=38 mm |
53009-016 |
— | ||
|
8
|
8
411B0600 WASHER-PLAIN,6.5X13X1.washer plain 6mm; |
411B0600 |
US $1.90 |
||
| replacement | |||||
|
8
|
8
411AA0600 WASHER-PLAIN,(6.5x13x1).washer plain 6mm; |
411AA0600 |
from US $2.13 |
||
|
9
|
9
461F0600
WASHER-SPRING,6MM
.washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
9
|
9
461DA0600 WASHER-SPRING,6MM.washer spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
10
|
10
112B0614
BOLT-UPSET
.bolt-upset 6x14; |
112B0614 |
— | ||
| replacements | |||||
|
10
|
10
112AA0614 BOLT-UPSET.bolt-upset 6x14; |
112AA0614 |
from US $0.82 |
||
|
10
|
10
112BA0614 BOLT-UPSET.bolt-upset 6x14; |
112BA0614 |
from US $1.43 |
||
|
11
|
11
92075-023 DAMPER RUBB DUAL SEAT.damper rubb dual seat; |
92075-023 |
from US $3.81 |
||
|
12
|
12
53011002 PIN |
53011002 |
US $7.57 |
||
|
13
|
13
92072-028
BAND-SEAT
|
92072-028 |
— | ||
|
14
|
14
112G0610
BOLT,6X10
Bolt,6x10; |
112G0610 |
— | ||
| replacement | |||||
|
14
|
14
112BA0610 BOLT-UPSETBolt,6x10; |
112BA0610 |
from US $0.92 |
||
|
15
|
15
36014-030-21
CASE-CHAIN
|
36014-030-21 |
— | ||
|
16
|
16
220B0614
SCREW-PAN-CROS,6X14
Screw pan head 6x14; |
220B0614 |
— | ||
| replacement | |||||
|
16
|
16
220AA0614 SCREW-PAN-CROS,6X14Screw pan head 6x14; |
220AA0614 |
from US $0.95 |
||
|
17
|
17
92022-125
WASHER 6.5X20X1.6T
Washer 6.5x20x1.6t; |
92022-125 |
— | ||
| replacement | |||||
|
17
|
17
92200-0283 WASHER,6.5X20X1.6Washer 6.5x20x1.6t; |
92200-0283 |
from US $0.72 |
||
