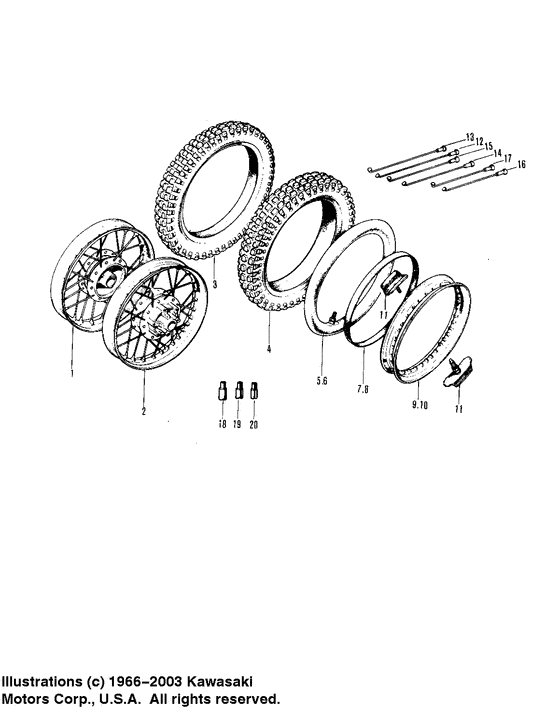

Wheels/tires ('71-'72 f8/f8-a) Diagram Kawasaki Model "F" F8 Bison
- Year
- 1972
- Model code
- F8-A
- Sales region
- USA
- Engine Capacity
- 250
- Model
- F8
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41074-026 WHEEL ASSY-FRONT1.85bx19w |
41074-026 |
US $252.25 |
||
|
2
|
2
42048-015
WHEEL ASSY-REAR
1.85bx18w |
42048-015 |
— | ||
|
3
|
3
41019-001 TIRE 3.25-19 Y620 |
41019-001 |
US $37.57 |
||
|
4
|
4
41019-002
New Genuine Part
|
41019-002 |
— | ||
| replacement | |||||
|
4
|
4
41017-015
*** n.l.a.***
|
41017-015 |
— | ||
|
5
|
5
41022-030
*** n.l.a.***
*** n.l.a.*** (canada); |
41022-030 |
— | ||
| replacements | |||||
|
5
|
5
41022-1019
TUBE,3.0/3.25/3.60-19
*** n.l.a.*** (canada); |
41022-1019 |
— | ||
|
5
|
5
41022-1129 TUBE-TIRE,FR,100/90-1*** n.l.a.*** (canada); |
41022-1129 |
from US $46.08 |
||
|
6
|
6
41022-031 TUBE-TIRE,100/100-18( |
41022-031 |
US $52.96 |
||
| replacement | |||||
|
6
|
6
41022-1119 TUBE-TIRE,100/100-18 |
41022-1119 |
from US $46.08 |
||
|
7
|
7
41023-015 BAND-RIM |
41023-015 |
US $13.55 |
||
| replacement | |||||
|
7
|
7
41023-1074 BAND-RIM |
41023-1074 |
from US $9.19 |
||
|
8
|
8
41023-1006
BAND-RIM,100/100-18(D
Band,rim,4.00/5.10-18; |
41023-1006 |
— | ||
| replacement | |||||
|
8
|
8
41023-1070 BAND-RIM,100/100-18(DBand,rim,4.00/5.10-18; |
41023-1070 |
from US $9.19 |
||
|
9
|
9
41025-031 RIM 1.85BX19W |
41025-031 |
US $67.59 |
||
|
*14
|
*14
41027-036
SPOKE-ASY,INNER
Spoke-asy,inner; #9x174.5m/m, #9x174.5m/m |
41027-036 |
— | ||
|
*15
|
*15
41028-035
SPOKE-ASY,OUTER
Spoke-asy,outer; #9x173.5m/m, #9x173.5m/m |
41028-035 |
— | ||
|
*16
|
*16
41027-037
SPOKE-ASY,INNER
Spoke-asy,inner; #9x164.5m/m, #9x164.5m/m |
41027-037 |
— | ||
|
*17
|
*17
41028-027
SPOKE ASSY-OUTER
#9x163.5m/m, #9x163.5m/m |
41028-027 |
— | ||
|
10
|
10
41025-045 RIM,1.85BX18WRim,1.85bx18w; |
41025-045 |
US $86.22 |
||
|
11
|
11
41024-007 PROTECTOR-BEAD 1.85B |
41024-007 |
US $43.58 |
||
|
12
|
12
41027-050 SPOKE-ASY,FR INNERSpoke-asy,fr inner; #9x172.5m/m |
41027-050 |
US $2.02 |
||
|
13
|
13
41028-049 SPOKE-ASY,FR OUTERSpoke-asy,fr outer; #9x173m/m |
41028-049 |
US $2.02 |
||
|
18
|
18
41075-1009
BALANCER-WHEEL,30G
Weight,balance,30g; |
41075-1009 |
— | ||
| replacement | |||||
|
18
|
18
41075-0013 BALANCER-WHEEL,30GWeight,balance,30g; |
41075-0013 |
from US $6.81 |
||
|
19
|
19
41075-1008
WEIGHT,BALANCE,20G
Weight,balance,20g; |
41075-1008 |
— | ||
| replacement | |||||
|
19
|
19
41075-0012 BALANCER-WHEEL,20GWeight,balance,20g; |
41075-0012 |
from US $6.81 |
||
|
20
|
20
41075-1007
BALANCER-WHEEL,10G
Weight,balance,10g; |
41075-1007 |
— | ||
| replacement | |||||
|
20
|
20
41075-0011 BALANCER-WHEEL,10GWeight,balance,10g; |
41075-0011 |
from US $6.81 |
||
