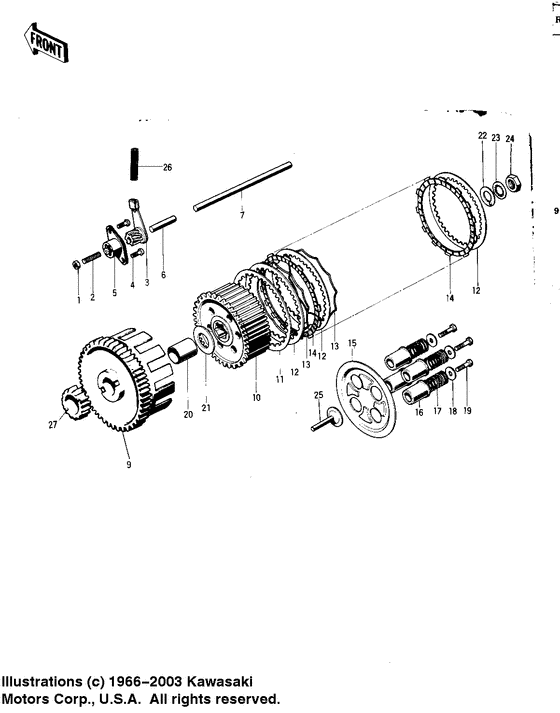

Clutch ('71 f81m) Diagram Kawasaki Model "F" F81 Green Streak
- Year
- 1971
- Model code
- F81M
- Sales region
- USA
- Engine Capacity
- 250
- Model
- F81
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
311B0600
NUT-HEX,6MM
Nut 6mm; |
311B0600 |
— | ||
| replacement | |||||
|
1
|
1
311AA0600 NUT-HEX,6MMNut 6mm; |
311AA0600 |
from US $0.63 |
||
|
2
|
2
92014-011 SCREW-CLUTCH ADJUST |
92014-011 |
US $8.50 |
||
|
3
|
3
13102-010
RELEASE INNER-CLUTCH
|
13102-010 |
— | ||
|
4
|
4
220B0614
SCREW-PAN-CROS,6X14
Screw pan head 6x14; |
220B0614 |
— | ||
| replacement | |||||
|
4
|
4
220AA0614 SCREW-PAN-CROS,6X14Screw pan head 6x14; |
220AA0614 |
from US $0.95 |
||
|
5
|
5
13118-005
RELEASE OUTER-CLUTCH
|
13118-005 |
— | ||
|
6
|
6
13116-013
PUSH ROD-CLUTCH,SHORT
Push rod-clutch,short; L=79 m/m |
13116-013 |
— | ||
|
7
|
7
13116-012 PUSH ROD-CLUTCH,LONGPush rod-clutch,long; L=152 m/m |
13116-012 |
US $17.10 |
||
|
8
|
8
92022-145
SPACER
Washer th 25.5x38x1t; |
92022-145 |
— | ||
| replacement | |||||
|
8
|
8
92026-1536 SPACERWasher th 25.5x38x1t; |
92026-1536 |
from US $3.96 |
||
|
9
|
9
13095-027
HOUSING-CLUTCH
|
13095-027 |
— | ||
|
10
|
10
13087-030
Hub-clutch
|
13087-030 |
— | ||
|
11
|
11
13086-013 WHEEL-CLUTCH |
13086-013 |
US $15.17 |
||
|
12
|
12
13089-013 PLATE CLUTCH STEELPlate clutch steel; |
13089-013 |
from US $11.09 |
||
|
13
|
13
13229-003
RING-CLUTCH STEEL
|
13229-003 |
— | ||
|
14
|
14
13088-021
PLATE-CLUTCH FRICTION
|
13088-021 |
— | ||
|
15
|
15
13187-005 PLATE-CLUTCH SPRING |
13187-005 |
US $41.72 |
||
|
16
|
16
13092-005 GUIDE CLUTCH SPRING |
13092-005 |
US $10.39 |
||
|
17
|
17
92081-042
SPRING CLUTCH
|
92081-042 |
— | ||
|
18
|
18
13091-009
HOLDER CL SPG6.5X20X2
|
13091-009 |
— | ||
|
19
|
19
112G0618
BOLT-UPSET
|
112G0618 |
— | ||
| replacement | |||||
|
19
|
19
112BA0618 BOLT-UPSET |
112BA0618 |
from US $0.95 |
||
|
20
|
20
92028-096
New Genuine Part
|
92028-096 |
— | ||
|
21
|
21
92026-022 WASHER TH 25.5X47X2.5Washer th 25.5x47x2.5; |
92026-022 |
from US $7.98 |
||
|
22
|
22
92022-074
WASHER PL 19X36.5X0.8
|
92022-074 |
— | ||
|
23
|
23
463G1800
WASHER LOCK 18MM
|
463G1800 |
— | ||
|
24
|
24
92015-019 NUT 18MMNut 18mm; |
92015-019 |
from US $4.80 |
||
|
25
|
25
13116-011 PUSHER-CLTCH SPRG PLT |
13116-011 |
US $34 |
||
|
26
|
26
92081-069 SPRING-CLUTCH RELEASESpring-clutch release; |
92081-069 |
from US $4.18 |
||
|
27
|
27
13075-007
PINION-KICKSTARTER
207 |
13075-007 |
— | ||
|
9
|
9
13081-034 CLUTCH-ASSY |
13081-034 |
US $385.16 |
||
|
10
|
10
13081-034 CLUTCH-ASSY |
13081-034 |
US $385.16 |
||
|
11
|
11
13081-034 CLUTCH-ASSY |
13081-034 |
US $385.16 |
||
|
12
|
12
13081-034 CLUTCH-ASSY |
13081-034 |
US $385.16 |
||
|
13
|
13
13081-034 CLUTCH-ASSY |
13081-034 |
US $385.16 |
||
|
14
|
14
13081-034 CLUTCH-ASSY |
13081-034 |
US $385.16 |
||
|
15
|
15
13081-034 CLUTCH-ASSY |
13081-034 |
US $385.16 |
||
|
16
|
16
13081-034 CLUTCH-ASSY |
13081-034 |
US $385.16 |
||
|
17
|
17
13081-034 CLUTCH-ASSY |
13081-034 |
US $385.16 |
||
|
18
|
18
13081-034 CLUTCH-ASSY |
13081-034 |
US $385.16 |
||
|
19
|
19
13081-034 CLUTCH-ASSY |
13081-034 |
US $385.16 |
||
