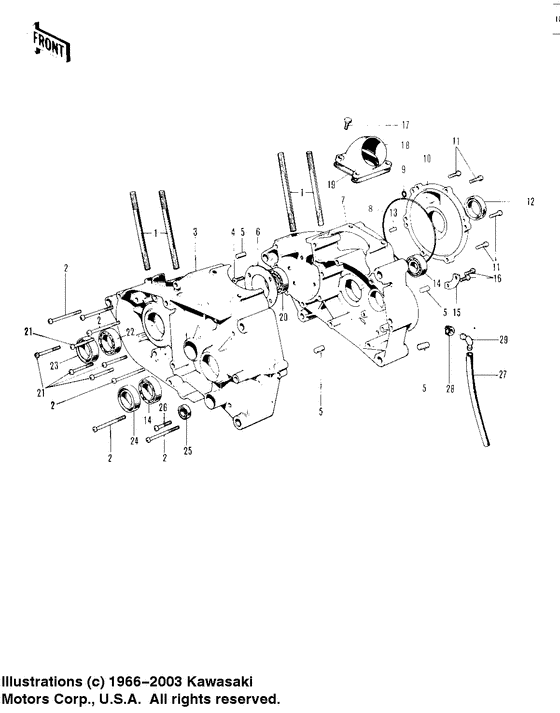

Crankcase ('71 f81m) Diagram Kawasaki Model "F" F81 Green Streak
- Year
- 1971
- Model code
- F81M
- Sales region
- USA
- Engine Capacity
- 250
- Model
- F81
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
172G1075
STUD 10X75
|
172G1075 |
— | ||
|
2
|
2
220B0675
SCREW-PAN HEAD,6X75
Screw pan head 6x75; |
220B0675 |
— | ||
| replacement | |||||
|
2
|
2
220AA0675 SCREW-PAN HEAD,6X75Screw pan head 6x75; |
220AA0675 |
from US $1.40 |
||
|
3
|
3
14001-065 CRANKCASE SET |
14001-065 |
US $477.20 |
||
|
4
|
4
221B0616 SCREW-CSK-CROSScrew cntsnk hd 6x16; |
221B0616 |
from US $0.34 |
||
| replacement | |||||
|
4
|
4
221AA0616 SCREW-CSK-CROSScrew cntsnk hd 6x16; |
221AA0616 |
from US $0.92 |
||
|
5
|
5
92043-1037 PIN,DOWEL,10X8.2X14Pin,dowel,10x8.2x14; |
92043-1037 |
from US $0.97 |
||
|
6
|
6
14014-019 HOLDER-CRANK BEARING |
14014-019 |
US $7.92 |
||
|
7
|
7
14003-056 CRANKCASE,R.HCrankcase,r.h; |
14003-056 |
US $110.47 |
||
|
8
|
8
92055-039
0 RING,134.5MM
"0" ring,134.5mm; |
92055-039 |
— | ||
|
9
|
9
670B1505 O RING,5MM"o" ring,5mm; |
670B1505 |
from US $2.53 |
||
|
11
|
11
220B0620 SCREW PAN HEAD 6X20Screw pan head 6x20; |
220B0620 |
US $1.27 |
||
| replacement | |||||
|
11
|
11
220AA0620 SCREW-PAN HEAD,6X20Screw pan head 6x20; |
220AA0620 |
from US $0.95 |
||
|
12
|
12
653B354808
OIL SEAL TB35488
|
653B354808 |
— | ||
|
13
|
13
610A0512 PIN DOWEL 5X12Pin dowel 5x12; |
610A0512 |
from US $0.94 |
||
|
14
|
14
601B6205 BEARING BALL #6205Bearing ball #6205; |
601B6205 |
from US $13.81 |
||
|
15
|
15
14014-020 HOLDER-MISSION BERNG |
14014-020 |
US $1.31 |
||
|
16
|
16
220B0614
SCREW-PAN-CROS,6X14
Screw pan head 6x14; |
220B0614 |
— | ||
| replacement | |||||
|
16
|
16
220AA0614 SCREW-PAN-CROS,6X14Screw pan head 6x14; |
220AA0614 |
from US $0.95 |
||
|
17
|
17
112G0620
BOLT-UPSET
Bolt-upset,6x20; |
112G0620 |
— | ||
| replacement | |||||
|
17
|
17
112BA0620 BOLT-UPSETBolt-upset,6x20; |
112BA0620 |
from US $0.95 |
||
|
18
|
18
11015-021 INLET PIPE |
11015-021 |
US $23.09 |
||
|
19
|
19
11017-005 GASKET-INLET PIPE |
11017-005 |
US $3.60 |
||
|
20
|
20
92045-016
BEARING-BALL
|
92045-016 |
— | ||
|
21
|
21
220B0650 SCREW-PAN HEAD,6X50Screw pan head 6x50; |
220B0650 |
from US $1.10 |
||
| replacement | |||||
|
21
|
21
220AA0650 SCREW-PAN HEAD,6X50Screw pan head 6x50; |
220AA0650 |
from US $1.24 |
||
|
22
|
22
601B6305 BEARING BALL #6305Bearing ball #6305; |
601B6305 |
from US $23.19 |
||
|
23
|
23
92049-1250
SEAL-OIL
|
92049-1250 |
— | ||
| replacement | |||||
|
23
|
23
92049-1482 SEAL-OIL |
92049-1482 |
from US $10.80 |
||
|
24
|
24
92050-033 OIL SEAL TB3040Oil seal tb3040; |
92050-033 |
from US $18.06 |
||
|
25
|
25
92049-004 OIL SEAL SB12205Oil seal sb12205; |
92049-004 |
from US $5.28 |
||
|
26
|
26
220B0630
SCREW-PAN HEAD,6X30
Screw pan head 6x30; |
220B0630 |
— | ||
| replacement | |||||
|
26
|
26
220AA0630 SCREW-PAN HEAD,6X30Screw pan head 6x30; |
220AA0630 |
from US $1.25 |
||
|
27
|
27
14069-1001 BREATHER |
14069-1001 |
US $21.40 |
||
| replacement | |||||
|
27
|
27
14069-1062 BREATHER |
14069-1062 |
from US $16.32 |
||
|
28
|
28
92071-042 GROMMET |
92071-042 |
from US $2.85 |
||
|
29
|
29
92059-061
PIPE-BREATHER
|
92059-061 |
— | ||
