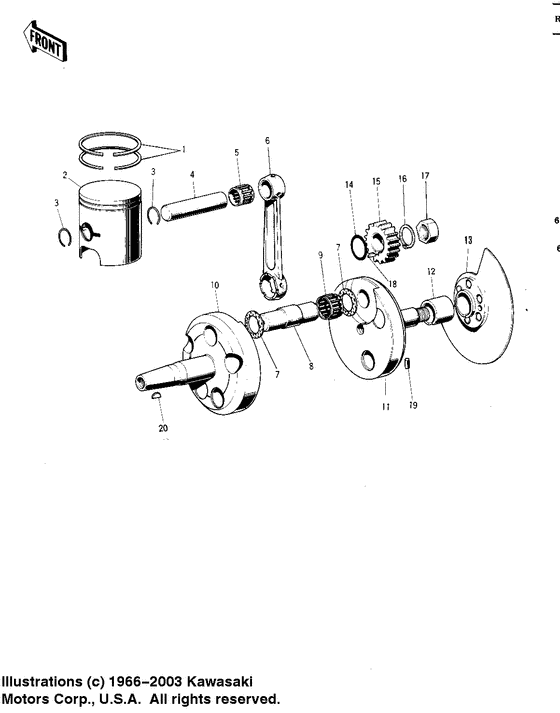

Crankshaft/piston/rotary valve Diagram Kawasaki Model "F" F81 Green Streak
- Year
- 1971
- Model code
- F81M
- Sales region
- USA
- Engine Capacity
- 250
- Model
- F81
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13008-030 RING SET,STDRing set,std; |
13008-030 |
US $41.47 |
||
|
1
|
1
13024-038 RING SET,0.040" O.SRing set,0.040" o.s; |
13024-038 |
US $31.23 |
||
|
2
|
2
13001-046 PISTON,STDPiston,std; |
13001-046 |
US $136.69 |
||
|
3
|
3
92036-015 CIRCLIP-PISTON PINCirclip-piston pin; |
92036-015 |
from US $3.33 |
||
|
4
|
4
13002017 PIN-PISTON |
13002017 |
US $21.39 |
||
|
5
|
5
13033-1010 BEARING-SMALL ENDBearing-small end; Kdk |
13033-1010 |
from US $21.23 |
||
|
7
|
7
92026-069 WASHER-CONROD SIDE |
92026-069 |
US $15.16 |
||
|
8
|
8
13035-026 CRANK PIN |
13035-026 |
US $72.70 |
||
|
9
|
9
13034-032
NEEDLE BRG-BIG END
Pk293817.8x |
13034-032 |
— | ||
|
11
|
11
13038-088
New Genuine Part
|
13038-088 |
— | ||
|
12
|
12
92027-097 CALLAR-CRANKSHAFT |
92027-097 |
US $18.72 |
||
|
13
|
13
12001-021 VALVE-ROTARY DISC |
12001-021 |
US $85.28 |
||
|
14
|
14
670B3022
0 RING,22MM
"0" ring,22mm; |
670B3022 |
— | ||
|
15
|
15
13121-028 PINION,PRIMARY 24TPinion,primary 24t; |
13121-028 |
US $101.81 |
||
|
16
|
16
92024-029 WASHER-LOCK,18MMWasher-lock,18mm; |
92024-029 |
US $0.90 |
||
|
17
|
17
92015-019 NUT 18MMNut 18mm; |
92015-019 |
from US $4.80 |
||
|
18
|
18
510A5100 WOODRUFF KEYWoodruff key; |
510A5100 |
from US $3.40 |
||
|
19
|
19
610A0412 PIN DOWEL 4X12Pin dowel 4x12; |
610A0412 |
from US $7.04 |
||
|
20
|
20
92038-001 WOODRUFF KEYWoodruff key; |
92038-001 |
from US $3.73 |
||
|
6
|
6
13044-016 CONNECTING ROD SET |
13044-016 |
US $149.42 |
||
|
7
|
7
13044-016 CONNECTING ROD SET |
13044-016 |
US $149.42 |
||
|
8
|
8
13044-016 CONNECTING ROD SET |
13044-016 |
US $149.42 |
||
|
9
|
9
13044-016 CONNECTING ROD SET |
13044-016 |
US $149.42 |
||
|
6
|
6
13036-029 CRANK-CONROD ASSY |
13036-029 |
US $466.34 |
||
|
7
|
7
13036-029 CRANK-CONROD ASSY |
13036-029 |
US $466.34 |
||
|
8
|
8
13036-029 CRANK-CONROD ASSY |
13036-029 |
US $466.34 |
||
|
9
|
9
13036-029 CRANK-CONROD ASSY |
13036-029 |
US $466.34 |
||
|
10
|
10
13036-029 CRANK-CONROD ASSY |
13036-029 |
US $466.34 |
||
|
11
|
11
13036-029 CRANK-CONROD ASSY |
13036-029 |
US $466.34 |
||
|
12
|
12
13036-029 CRANK-CONROD ASSY |
13036-029 |
US $466.34 |
||
|
13
|
13
13036-029 CRANK-CONROD ASSY |
13036-029 |
US $466.34 |
