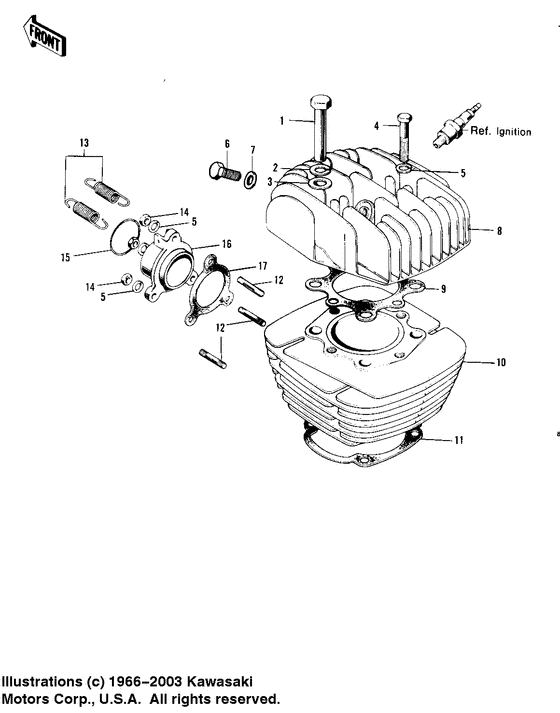

Cylinder head/cylinder ('71 f81m) Diagram Kawasaki Model "F" F81 Green Streak
- Year
- 1971
- Model code
- F81M
- Sales region
- USA
- Engine Capacity
- 250
- Model
- F81
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
92015-022 NUT 10MM |
92015-022 |
US $23.83 |
||
|
2
|
2
461F1400 WASHER SPRING 14MM |
461F1400 |
US $0.60 |
||
|
3
|
3
410B1400 WASHER PLAIN 14MMWasher plain 14mm; |
410B1400 |
from US $1.27 |
||
| replacement | |||||
|
3
|
3
410AA1400 WASHER-PLAIN-SMALL,14Washer plain 14mm; |
410AA1400 |
from US $0.95 |
||
|
4
|
4
92001-1182
BOLT,10X45
Bolt,10x45; |
92001-1182 |
— | ||
|
5
|
5
461F0800
WASHER-SPRING,8MM
Washer spring 8mm; |
461F0800 |
— | ||
| replacement | |||||
|
5
|
5
461DA0800 WASHER-SPRING,8MMWasher spring 8mm; |
461DA0800 |
from US $0.48 |
||
|
6
|
6
92067-005 PLUG-CYLINDER HEAD |
92067-005 |
US $5.80 |
||
|
7
|
7
92065-068
GASKET-CYL HEAD PLUG
|
92065-068 |
— | ||
|
8
|
8
11001-056
Cylinder head
|
11001-056 |
— | ||
|
9
|
9
11004-041 GASKET HEAD |
11004-041 |
US $4.97 |
||
|
10
|
10
11005-074 CYLINDER |
11005-074 |
US $385.16 |
||
|
11
|
11
11009-024 GASKET, CYLINDER BASE |
11009-024 |
US $8.33 |
||
| replacement | |||||
|
11
|
11
11060-1410
GASKET, CYLINDER BASE
|
11060-1410 |
— | ||
|
12
|
12
172G0820
STUD,8X20
Stud 8x20; |
172G0820 |
— | ||
| replacement | |||||
|
12
|
12
172BA0820 STUD,8X20Stud 8x20; |
172BA0820 |
from US $1.40 |
||
|
13
|
13
18071-001
SPRING CONNECTOR
L=42 mm, l=49 mm |
18071-001 |
— | ||
|
14
|
14
318B0800
NUT-HEX-SMALL
Nut 8mm; |
318B0800 |
— | ||
| replacement | |||||
|
14
|
14
318AA0800 NUT-HEX-SMALLNut 8mm; |
318AA0800 |
from US $0.92 |
||
|
15
|
15
56019-102
New Genuine Part
|
56019-102 |
— | ||
|
16
|
16
18062-004 HOLDER-EXHAUST PIPE |
18062-004 |
US $72.81 |
||
|
17
|
17
18050-004
GASKET-EXHAUST PIPE
|
18050-004 |
— | ||
