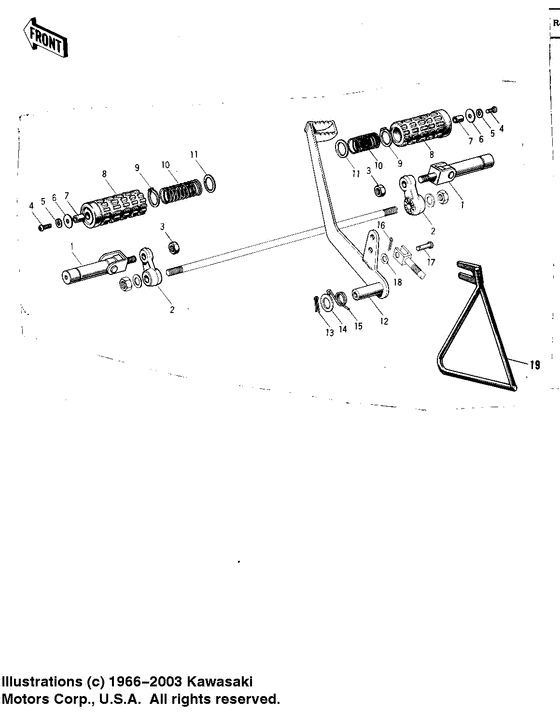

Footrests/stand/brake pedal ('71 f81m) Diagram Kawasaki Model "F" F81 Green Streak
- Year
- 1971
- Model code
- F81M
- Sales region
- USA
- Engine Capacity
- 250
- Model
- F81
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34002-051
BAR ASSY,FOOTREST
Bar assy,footrest; |
34002-051 |
— | ||
|
2
|
2
34007-009 BRACKET-FOOTREST BAR |
34007-009 |
US $34 |
||
|
3
|
3
92019-009 NUT-LOCK,12MMNut-lock,12mm; |
92019-009 |
US $8.91 |
||
| replacement | |||||
|
3
|
3
92210-1373 NUT,LOCK,12MMNut-lock,12mm; |
92210-1373 |
from US $3.96 |
||
|
4
|
4
112G0618
BOLT-UPSET
|
112G0618 |
— | ||
| replacement | |||||
|
4
|
4
112BA0618 BOLT-UPSET |
112BA0618 |
from US $0.95 |
||
|
5
|
5
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
5
|
5
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
6
|
6
92022-125
WASHER 6.5X20X1.6T
Washer 6.5x20x1.6t; |
92022-125 |
— | ||
| replacement | |||||
|
6
|
6
92200-0283 WASHER,6.5X20X1.6Washer 6.5x20x1.6t; |
92200-0283 |
from US $0.72 |
||
|
7
|
7
92027-103 COLLAR |
92027-103 |
from US $2.38 |
||
|
8
|
8
92076-023
RUBBER-FOOTREST
|
92076-023 |
— | ||
|
9
|
9
480J1600 CIRCLIP 16MMCirclip 16mm; |
480J1600 |
from US $1.43 |
||
|
10
|
10
34006-002
SPRING FOOTREST PEG
|
34006-002 |
— | ||
|
11
|
11
92022-049
WASHER FOLDING PEG
|
92022-049 |
— | ||
|
12
|
12
43001-036-10
PEDAL-BRAKE,BLACK
Pedal-brake,black; |
43001-036-10 |
— | ||
|
13
|
13
550D3030 PIN COTTER 3.0X30Pin cotter 3.0x30; |
550D3030 |
US $1.27 |
||
| replacement | |||||
|
13
|
13
550AA3030 PIN-COTTER,3.0X30Pin cotter 3.0x30; |
550AA3030 |
from US $0.95 |
||
|
14
|
14
92022-085 WASHER BRAKE PEDALWasher brake pedal; |
92022-085 |
from US $3 |
||
|
15
|
15
43005-013
SPRING-BRAKE PEDAL
|
43005-013 |
— | ||
|
16
|
16
550D2015
PIN-COTTER,2.0X15
Pin cotter 2.0x15; |
550D2015 |
— | ||
| replacement | |||||
|
16
|
16
550AA2015 PIN-COTTER,2.0X15Pin cotter 2.0x15; |
550AA2015 |
from US $0.63 |
||
|
17
|
17
92043-034
PIN R BRK CABLE JOINT
|
92043-034 |
— | ||
|
18
|
18
410B0600
WASHER-PLAIN-SMALL
Washer plain 6mm; |
410B0600 |
— | ||
| replacement | |||||
|
18
|
18
410AA0600 WASHER-PLAIN-SMALLWasher plain 6mm; |
410AA0600 |
from US $0.79 |
||
|
19
|
19
34033-011 STAND-PORTABLE |
34033-011 |
US $54.85 |
||
