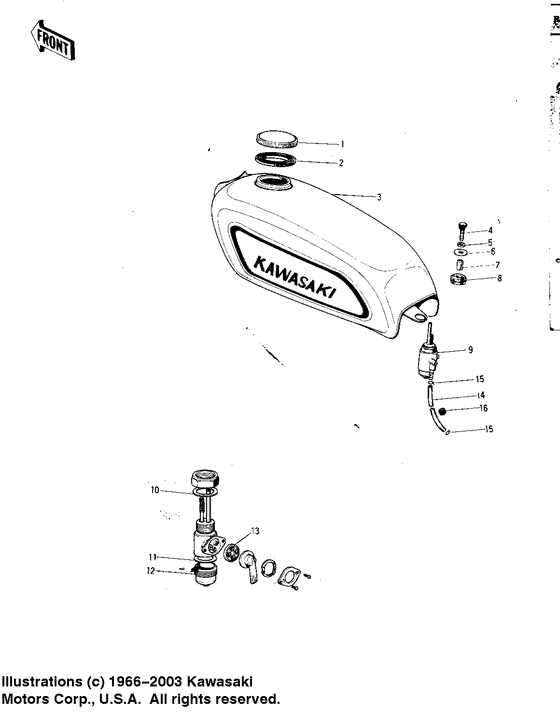

Fuel tank ('71 f81m) Diagram Kawasaki Model "F" F81 Green Streak
- Year
- 1971
- Model code
- F81M
- Sales region
- USA
- Engine Capacity
- 250
- Model
- F81
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51049-008
CAP FUEL TANK
|
51049-008 |
— | ||
|
2
|
2
51059-007
GASKET-FUEL TANK CAP
|
51059-007 |
— | ||
|
3
|
3
51001-055-54 FUEL TANK-LIME GREEN |
51001-055-54 |
US $408.56 |
||
|
4
|
4
115B0832
BOLT, 8X32
|
115B0832 |
— | ||
| replacement | |||||
|
4
|
4
92002-1241
BOLT, 8X32
|
92002-1241 |
— | ||
|
5
|
5
461F0800
WASHER-SPRING,8MM
Washer spring 8mm; |
461F0800 |
— | ||
| replacement | |||||
|
5
|
5
461DA0800 WASHER-SPRING,8MMWasher spring 8mm; |
461DA0800 |
from US $0.48 |
||
|
6
|
6
92022-1564 WASHER,8X26X2.3Washer,8x26x2.3; |
92022-1564 |
from US $2.49 |
||
|
7
|
7
92027-034 SPACER FUEL TANK REARSpacer fuel tank rear; |
92027-034 |
from US $3.11 |
||
|
8
|
8
92075-030
DAMPER RUBB TANK REAR
|
92075-030 |
— | ||
|
9
|
9
51023-044
COCK ASSY,FUEL
Cock assy,fuel; |
51023-044 |
— | ||
|
10
|
10
51032-001
GASKET FUEL COCK JONT
|
51032-001 |
— | ||
|
11
|
11
51037-007
GASKET FUEL COCK CUP
|
51037-007 |
— | ||
|
12
|
12
51036-003
CUP FUEL COCK
|
51036-003 |
— | ||
|
13
|
13
92065-019
GASKET FUEL COCK LEV
|
92065-019 |
— | ||
|
14
|
14
92059-072 PIPE-OILL=345 m/m |
92059-072 |
from US $19.01 |
||
|
15
|
15
92037-010 CLAMP FUEL PIPEClamp fuel pipe; |
92037-010 |
from US $2.69 |
||
|
16
|
16
92071-038 GROMMET PIPEGrommet pipe; |
92071-038 |
from US $2.88 |
||
