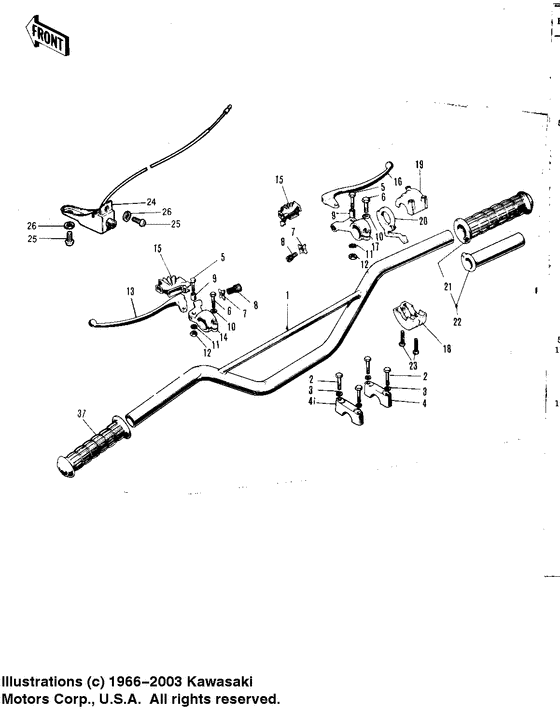

Handlebar ('71 f81m) Diagram Kawasaki Model "F" F81 Green Streak
- Year
- 1971
- Model code
- F81M
- Sales region
- USA
- Engine Capacity
- 250
- Model
- F81
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46004-017 HANDLEBAR |
46004-017 |
US $54.85 |
||
|
2
|
2
110N0835 BOLT HEX HEAD 8X35 |
110N0835 |
US $2.38 |
||
|
3
|
3
461F0800
WASHER-SPRING,8MM
Washer spring 8mm; |
461F0800 |
— | ||
| replacement | |||||
|
3
|
3
461DA0800 WASHER-SPRING,8MMWasher spring 8mm; |
461DA0800 |
from US $0.48 |
||
|
4
|
4
46012008 HOLDER-HANDLEBARHolder-handlebar; |
46012008 |
from US $24.53 |
||
|
5
|
5
92007-020
BOLT HEX HEAD 5X20
|
92007-020 |
— | ||
|
6
|
6
112N0620 BOLT-UPSET |
112N0620 |
US $11 |
||
| replacement | |||||
|
6
|
6
112BA0620 BOLT-UPSET |
112BA0620 |
from US $0.95 |
||
|
7
|
7
46056-001
NUT,CABLE ADJUST LOCK
|
46056-001 |
— | ||
| replacement | |||||
|
7
|
7
92210-1131
NUT,CABLE ADJUST LOCK
|
92210-1131 |
— | ||
|
8
|
8
46055003 SCREW CABLE ADJUSTScrew cable adjust; |
46055003 |
from US $11.09 |
||
|
9
|
9
46059-011
COLLAR LEVER
|
46059-011 |
— | ||
|
10
|
10
410B0600
WASHER-PLAIN-SMALL
Washer plain 6mm; |
410B0600 |
— | ||
| replacement | |||||
|
10
|
10
410AA0600 WASHER-PLAIN-SMALLWasher plain 6mm; |
410AA0600 |
from US $0.79 |
||
|
11
|
11
464H0500
Washer-lock,5mm
|
464H0500 |
— | ||
| replacement | |||||
|
11
|
11
464EA0500
Washer-toothed
|
464EA0500 |
— | ||
|
12
|
12
312B0500
NUT-HEX
Nut 5mm; |
312B0500 |
— | ||
| replacement | |||||
|
12
|
12
312AA0500 NUT-HEXNut 5mm; |
312AA0500 |
from US $0.78 |
||
|
13
|
13
46092015 LEVER-CLUTCHLever-clutch; |
46092015 |
from US $20.45 |
||
|
14
|
14
46094-010
HOLDER,CLUTCH LEVER
Holder,clutch lever; |
46094-010 |
— | ||
|
15
|
15
46071-001
DUST COVER
|
46071-001 |
— | ||
|
16
|
16
46058-004 LEVER, FRONT BRAKELever front brake; |
46058-004 |
from US $24.91 |
||
|
17
|
17
46060-006
HOLDER-FR BRAKE LEVER
|
46060-006 |
— | ||
|
18
|
18
46023-005 CASE-R.H LOWER |
46023-005 |
US $18.38 |
||
|
19
|
19
46041-005
CASE-R.H.UPPER
|
46041-005 |
— | ||
|
20
|
20
46096-006
LEVER-STARTER
|
46096-006 |
— | ||
|
21
|
21
46061-012
RUBBER-R.H GRIP
|
46061-012 |
— | ||
|
22
|
22
46019-013
GRIP ASSY-THROTTLE
|
46019-013 |
— | ||
|
23
|
23
220B0522 SCREW-PAN-CROSScrew pan head 5x22; |
220B0522 |
US $0.95 |
||
| replacement | |||||
|
23
|
23
220AA0522 SCREW-PAN-CROSScrew pan head 5x22; |
220AA0522 |
from US $0.82 |
||
|
24
|
24
46027-006
SWITCH ASSY-ENG STOP
|
46027-006 |
— | ||
|
25
|
25
220B0306
SCREW-PAN-CROS,3X6
Screw-pan-head 3x6; |
220B0306 |
— | ||
| replacement | |||||
|
25
|
25
220AA0306 SCREW-PAN-CROS,3X6Screw-pan-head 3x6; |
220AA0306 |
from US $0.78 |
||
|
26
|
26
461F0300
WASHER SPRING 3MM
Washer spring 3mm; |
461F0300 |
— | ||
| replacement | |||||
|
26
|
26
461DA0300 WASHER-SPRINGWasher spring 3mm; |
461DA0300 |
from US $0.78 |
||
|
5
|
5
46021-010
LEVER ASSY-FRNT BRAKE
|
46021-010 |
— | ||
|
6
|
6
46021-010
LEVER ASSY-FRNT BRAKE
|
46021-010 |
— | ||
|
7
|
7
46021-010
LEVER ASSY-FRNT BRAKE
|
46021-010 |
— | ||
|
8
|
8
46021-010
LEVER ASSY-FRNT BRAKE
|
46021-010 |
— | ||
|
9
|
9
46021-010
LEVER ASSY-FRNT BRAKE
|
46021-010 |
— | ||
|
10
|
10
46021-010
LEVER ASSY-FRNT BRAKE
|
46021-010 |
— | ||
|
11
|
11
46021-010
LEVER ASSY-FRNT BRAKE
|
46021-010 |
— | ||
|
12
|
12
46021-010
LEVER ASSY-FRNT BRAKE
|
46021-010 |
— | ||
|
5
|
5
46076-014 LEVER ASSY-CLUTCH |
46076-014 |
US $42.52 |
||
|
6
|
6
46076-014 LEVER ASSY-CLUTCH |
46076-014 |
US $42.52 |
||
|
7
|
7
46076-014 LEVER ASSY-CLUTCH |
46076-014 |
US $42.52 |
||
|
8
|
8
46076-014 LEVER ASSY-CLUTCH |
46076-014 |
US $42.52 |
||
|
9
|
9
46076-014 LEVER ASSY-CLUTCH |
46076-014 |
US $42.52 |
||
|
10
|
10
46076-014 LEVER ASSY-CLUTCH |
46076-014 |
US $42.52 |
||
|
11
|
11
46076-014 LEVER ASSY-CLUTCH |
46076-014 |
US $42.52 |
||
|
12
|
12
46076-014 LEVER ASSY-CLUTCH |
46076-014 |
US $42.52 |
||
|
13
|
13
46076-014 LEVER ASSY-CLUTCH |
46076-014 |
US $42.52 |
||
|
14
|
14
46076-014 LEVER ASSY-CLUTCH |
46076-014 |
US $42.52 |
||
|
15
|
15
46076-014 LEVER ASSY-CLUTCH |
46076-014 |
US $42.52 |
||
|
18
|
18
46018-019
CASE ASSY-R.H
|
46018-019 |
— | ||
|
19
|
19
46018-019
CASE ASSY-R.H
|
46018-019 |
— | ||
|
20
|
20
46018-019
CASE ASSY-R.H
|
46018-019 |
— | ||
|
21
|
21
46018-019
CASE ASSY-R.H
|
46018-019 |
— | ||
|
22
|
22
46018-019
CASE ASSY-R.H
|
46018-019 |
— | ||
|
23
|
23
46018-019
CASE ASSY-R.H
|
46018-019 |
— | ||
