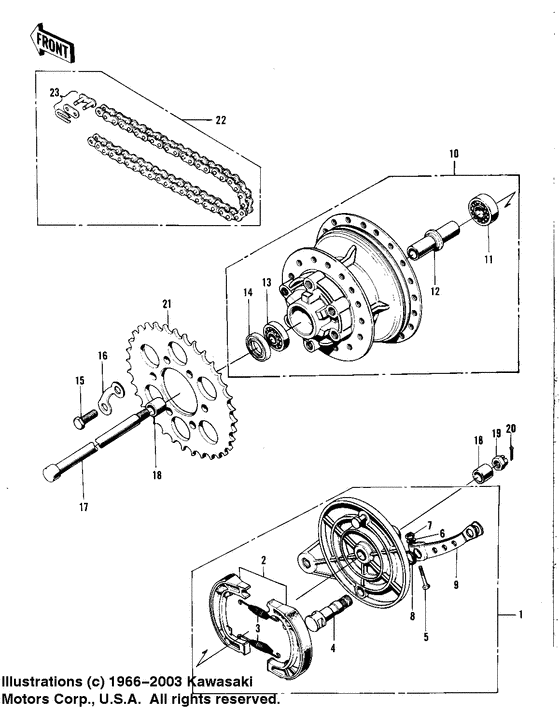

Rear hub/brake/chain ('71 f81m) Diagram Kawasaki Model "F" F81 Green Streak
- Year
- 1971
- Model code
- F81M
- Sales region
- USA
- Engine Capacity
- 250
- Model
- F81
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42006-016-21 PANEL-ASY,RR BRK,BLKPanel-asy,rr brk,blk; |
42006-016-21 |
US $183.49 |
||
|
2
|
2
42019-011
SHOE-BRAKE
.shoe,brake; |
42019-011 |
— | ||
| replacement | |||||
|
2
|
2
41048-1107
SHOE-BRAKE
.shoe,brake; |
41048-1107 |
— | ||
|
3
|
3
42020-004 SPRING-BRAKE SHOE.spring-brake shoe; |
42020-004 |
from US $6.18 |
||
|
4
|
4
42026-021 CAM SHAFT,REAR BRAKE.cam shaft,rear brake; |
42026-021 |
from US $18.68 |
||
|
5
|
5
112G0640
BOLT-UPSET,6X40
.bolt-upset,6x40; |
112G0640 |
— | ||
|
6
|
6
410B0600
WASHER-PLAIN-SMALL
.washer plain 6mm; |
410B0600 |
— | ||
| replacement | |||||
|
6
|
6
410AA0600 WASHER-PLAIN-SMALL.washer plain 6mm; |
410AA0600 |
from US $0.79 |
||
|
7
|
7
311B0600
NUT-HEX,6MM
.nut 6mm; |
311B0600 |
— | ||
| replacement | |||||
|
7
|
7
311AA0600 NUT-HEX,6MM.nut 6mm; |
311AA0600 |
from US $0.63 |
||
|
8
|
8
41051001 DUST SHIELD BRAKE CAM.dust shield brake cam; |
41051001 |
from US $3.17 |
||
|
9
|
9
42029-037
LEVER,REAR BRAKE CAM
.lever,rear brake cam; |
42029-037 |
— | ||
|
10
|
10
42005-019 DRUM ASSY-REAR BRAKEDrum assy-rear brake; |
42005-019 |
US $261 |
||
|
11
|
11
601B6303Z BEARING BALL #6303Z |
601B6303Z |
from US $16.79 |
||
|
12
|
12
42010-015
SPACER-RR HUB BEARING
L=116 mm |
42010-015 |
— | ||
|
13
|
13
601B6303 BEARING BALL #6303.bearing ball #6303; |
601B6303 |
from US $9.67 |
||
|
14
|
14
654A254708
OIL SEAL FRONT AXLE
|
654A254708 |
— | ||
|
15
|
15
92001-087
BOLT-HEX HEAD,10X25
Bolt-hex head,10x25; |
92001-087 |
— | ||
|
16
|
16
92088-007 WASHER LOCK |
92088-007 |
from US $5.44 |
||
|
17
|
17
42031-030
AXLE-REAR
|
42031-030 |
— | ||
|
18
|
18
42032-031 COLLAR-REAR AXLE |
42032-031 |
US $7.79 |
||
|
19
|
19
42045014 NUTNut castle 16m/m; |
42045014 |
US $8.41 |
||
| replacement | |||||
|
19
|
19
92015-1947 NUTNut castle 16m/m; |
92015-1947 |
from US $6.34 |
||
|
20
|
20
550D4035 PIN-COTTER,4.0X35Pin-cotter,4.0x35; |
550D4035 |
US $1.27 |
||
| replacement | |||||
|
20
|
20
550AA4035 PIN-COTTER,4.0X35Pin-cotter,4.0x35; |
550AA4035 |
from US $0.91 |
||
|
21
|
21
42041-088
REAR SPROCKET,45T
Rear sprocket,45t; Std, option, option |
42041-088 |
— | ||
|
22
|
22
695Z5296
New Genuine Part
|
695Z5296 |
— | ||
|
23
|
23
92058-006
CHAIN JOINT 525
|
92058-006 |
— | ||
