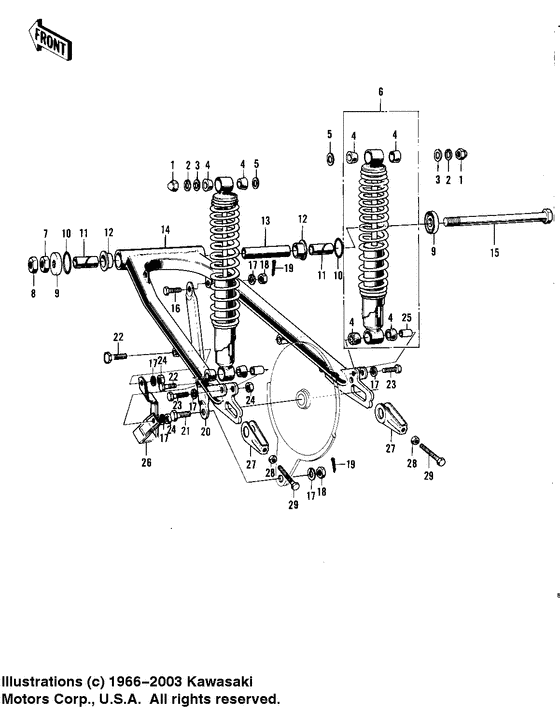

Swing arm shock absorbers Diagram Kawasaki Model "F" F81 Green Streak
- Year
- 1971
- Model code
- F81M
- Sales region
- USA
- Engine Capacity
- 250
- Model
- F81
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
92020-003 NUT SHOCK ABSORBERNut shock absorber; |
92020-003 |
from US $3.80 |
||
|
2
|
2
461F1000 WASHER SPRING 10MMWasher spring 10mm; |
461F1000 |
US $0.95 |
||
| replacement | |||||
|
2
|
2
461DA1000 WASHER-SPRINGWasher spring 10mm; |
461DA1000 |
from US $0.90 |
||
|
3
|
3
92022-044 WASHER-PL-10.5X26X2.3Washer-pl-10.5x26x2.3; I.d.=10.5 mm |
92022-044 |
from US $3.20 |
||
|
4
|
4
45017-003
BUSH SHOCK ABSORBER
|
45017-003 |
— | ||
|
5
|
5
410B1200 WASHER PLAIN 12MMWasher plain 12mm; |
410B1200 |
from US $0.95 |
||
| replacement | |||||
|
5
|
5
410AA1200 WASHER-PLAIN-SMALL,12Washer plain 12mm; |
410AA1200 |
from US $0.95 |
||
|
6
|
6
45014-060 SHOCK ABSBR RR |
45014-060 |
US $104.29 |
||
|
7
|
7
314B1400 NUT,14MMNut,14mm; |
314B1400 |
US $0.81 |
||
| replacement | |||||
|
7
|
7
314AA1400 NUT,14MMNut,14mm; |
314AA1400 |
from US $0.76 |
||
|
8
|
8
315B1400 NUT,14MMNut 14mm; |
315B1400 |
US $3.65 |
||
| replacement | |||||
|
8
|
8
315AA1400 NUT,14MMNut 14mm; |
315AA1400 |
from US $1.24 |
||
|
9
|
9
33035-004
CAP-SWING ARM
|
33035-004 |
— | ||
|
10
|
10
671B2530 0 RING,30MM"0" ring,30mm; |
671B2530 |
from US $3.17 |
||
|
11
|
11
33034-013
SLEEVE-SWING ARM,SHRT
Sleeve-swing arm,shrt; L=43 mm |
33034-013 |
— | ||
|
12
|
12
33033009
BUSHING-SWING ARM
|
33033009 |
— | ||
|
13
|
13
33034-012 SLEEVE-SWING ARM,LONGSleeve-swing arm,long; |
33034-012 |
US $12.02 |
||
|
14
|
14
33001-036 SWINGING ARM |
33001-036 |
US $105.37 |
||
|
15
|
15
33032-025
SHAFT-SWING ARM PIVOT
|
33032-025 |
— | ||
|
16
|
16
92003-017 BOLT TORQUE LINK FIT - N.L.A.Bolt torque link fit; |
92003-017 |
US $4.95 |
||
| replacement | |||||
|
16
|
16
92150-1873 BOLT,10X25Bolt torque link fit; |
92150-1873 |
from US $3.17 |
||
|
17
|
17
461F1000 WASHER SPRING 10MMWasher spring 10mm; |
461F1000 |
US $0.95 |
||
| replacement | |||||
|
17
|
17
461DA1000 WASHER-SPRINGWasher spring 10mm; |
461DA1000 |
from US $0.90 |
||
|
18
|
18
314B1000
NUT-HEX-FINE
Nut,10mm; |
314B1000 |
— | ||
| replacement | |||||
|
18
|
18
314AA1000 NUT-HEX-FINENut,10mm; |
314AA1000 |
from US $1.01 |
||
|
19
|
19
550D2015
PIN-COTTER,2.0X15
Pin cotter 2.0x15; |
550D2015 |
— | ||
| replacement | |||||
|
19
|
19
550AA2015 PIN-COTTER,2.0X15Pin cotter 2.0x15; |
550AA2015 |
from US $0.63 |
||
|
20
|
20
43007-018 TORQUE LINK REAR BRK |
43007-018 |
US $12.28 |
||
|
21
|
21
92003-003 BOLT,10X32Bolt hex head 10x25; |
92003-003 |
US $4.16 |
||
| replacement | |||||
|
21
|
21
92150-1872 BOLT,10X32Bolt hex head 10x25; |
92150-1872 |
from US $4.12 |
||
|
22
|
22
92001-1254
New Genuine Part
Bolt,hex head,10x50; |
92001-1254 |
— | ||
| replacement | |||||
|
22
|
22
92151-1369 BOLT,FLANGED,10X50Bolt,hex head,10x50; |
92151-1369 |
from US $2.69 |
||
|
23
|
23
113N1035 BOLT-UPSET |
113N1035 |
US $37.80 |
||
| replacement | |||||
|
23
|
23
112N1035 BOLT-UPSET |
112N1035 |
from US $1.40 |
||
|
24
|
24
315B1000 NUT 10MMNut 10mm; |
315B1000 |
US $1.11 |
||
| replacement | |||||
|
24
|
24
315AA1000 NUT-HEX-FINENut 10mm; |
315AA1000 |
from US $0.92 |
||
|
25
|
25
45016003
BUSH SHCK ABS PVT SFT
Bush shck abs pvt sft; |
45016003 |
— | ||
| replacement | |||||
|
25
|
25
45017-011
BUSHING,SHCK ABSORBER
Bush shck abs pvt sft; |
45017-011 |
— | ||
|
26
|
26
55037-001 GUARD-CHAIN |
55037-001 |
US $13 |
||
|
27
|
27
33040043 ADJUSTER-CHAIN |
33040043 |
US $18.69 |
||
| replacement | |||||
|
27
|
27
33040-1004 ADJUSTER-CHAIN |
33040-1004 |
from US $14 |
||
|
28
|
28
312B0800
NUT-HEX-SMALL
|
312B0800 |
— | ||
| replacement | |||||
|
28
|
28
318AA0800 NUT-HEX-SMALL |
318AA0800 |
from US $0.92 |
||
|
29
|
29
92001-1399
BOLT,8X50
Bolt,8x50; |
92001-1399 |
— | ||
| replacement | |||||
|
29
|
29
92002-1076 BOLT,8X50Bolt,8x50; |
92002-1076 |
from US $6.34 |
||
