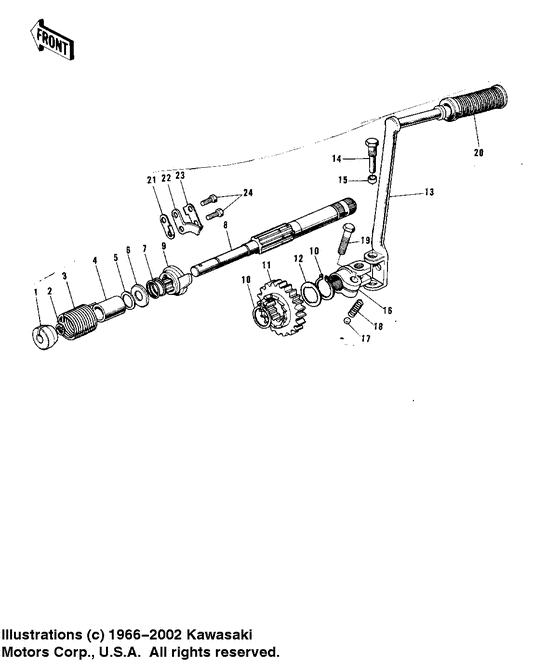

Kickstarter mechanism ('72-'73 f9/f9-a 350) Diagram Kawasaki Model "F" F9 Bighorn
- Year
- 1972
- Model code
- F9
- Sales region
- USA
- Engine Capacity
- 350
- Model
- F9
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13070-001 GUIDE KICK SPRING |
13070-001 |
from US $9.70 |
||
|
2
|
2
482J0100 CIRCLIP 10MMCirclip 10mm; |
482J0100 |
from US $0.91 |
||
|
3
|
3
92082-002 SPRING KICKSTARTER |
92082-002 |
from US $12.70 |
||
|
4
|
4
92027-126 COLLAR |
92027-126 |
US $2.35 |
||
|
5
|
5
92022-149 SHIM-KICK SHAFT,0.3TShim-kick shaft,0.3t; 0.3t, 0.7t, 0.9t |
92022-149 |
US $2.64 |
||
|
6
|
6
13077-003 HOLDER-KICK GEAR |
13077-003 |
US $0.88 |
||
|
7
|
7
92081-093 SPRING |
92081-093 |
US $2.35 |
||
|
8
|
8
13066-026 SHAFT-KICKSTARTER |
13066-026 |
US $65.56 |
||
|
9
|
9
13078-004 RATCHET |
13078-004 |
US $160.46 |
||
|
10
|
10
92033-026 CIRCLIPCirclip; |
92033-026 |
from US $4.90 |
||
|
11
|
11
13068-022 GEAR-KICKSTARTER |
13068-022 |
US $75.27 |
||
|
12
|
12
92024-033 WASHER-LOCKWasher-lock; |
92024-033 |
from US $3.93 |
||
|
14
|
14
92001-085
BOLT-HEX HEAD,10MM
Bolt-hex head,10mm; |
92001-085 |
— | ||
|
15
|
15
92027-101 COLLAR |
92027-101 |
US $5.57 |
||
|
16
|
16
13061-008 BOSS-KICK PEDAL |
13061-008 |
US $61.39 |
||
|
17
|
17
600A0800 BALL,6.35MMBall steel 1/4'; |
600A0800 |
from US $0.82 |
||
|
18
|
18
92081-020 SPRING KICK PEDALSpring kick pedal; |
92081-020 |
from US $2.52 |
||
|
19
|
19
114B1025
BOLT-HEX HEAD,10X25
Bolt-hex head,10x25; |
114B1025 |
— | ||
|
20
|
20
13063004 RUBBER KICK PEDALRubber kick pedal; |
13063004 |
US $6.86 |
||
| replacement | |||||
|
20
|
20
92161-2388 RUBBER KICK PEDALRubber kick pedal; |
92161-2388 |
US $8.92 |
||
|
21
|
21
13072-010 STOPPER-KICKSTARTER |
13072-010 |
US $3.06 |
||
|
22
|
22
13206-006 GUIDE-KICKSTARTER |
13206-006 |
US $3.97 |
||
|
23
|
23
92031-006 WASHER-KICK STOPPER |
92031-006 |
US $1.33 |
||
|
24
|
24
112G0616
BOLT-UPSET,6X16
Bolt-upset,6x16; |
112G0616 |
— | ||
| replacement | |||||
|
24
|
24
112BA0616 BOLT-UPSET,6X16Bolt-upset,6x16; |
112BA0616 |
from US $0.84 |
||
|
13
|
13
13058-027
PEDAL-KICKSTARTER
|
13058-027 |
— | ||
|
14
|
14
13058-027
PEDAL-KICKSTARTER
|
13058-027 |
— | ||
|
15
|
15
13058-027
PEDAL-KICKSTARTER
|
13058-027 |
— | ||
|
16
|
16
13058-027
PEDAL-KICKSTARTER
|
13058-027 |
— | ||
|
17
|
17
13058-027
PEDAL-KICKSTARTER
|
13058-027 |
— | ||
|
18
|
18
13058-027
PEDAL-KICKSTARTER
|
13058-027 |
— | ||
