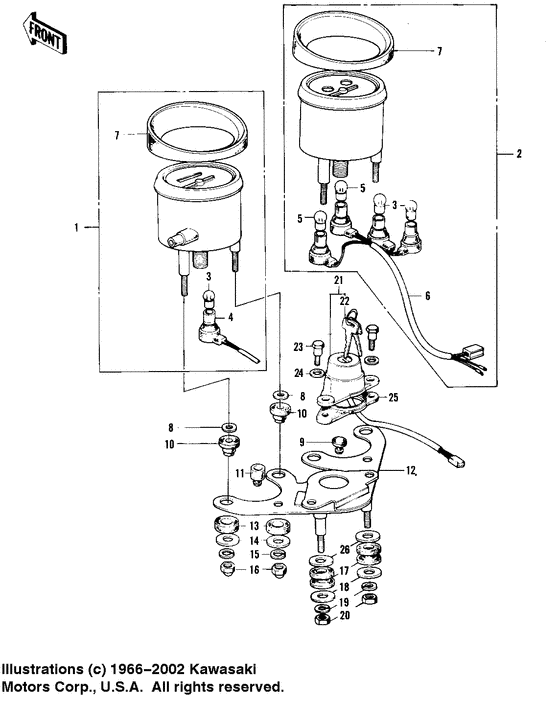

Meters/ignition switch (F9-a) Diagram Kawasaki Model "F" F9 Bighorn
- Year
- 1972
- Model code
- F9
- Sales region
- USA
- Engine Capacity
- 350
- Model
- F9
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
25001-045
SPEEDOMETER ASSY,MPH
Speedometer assy,mph; |
25001-045 |
— | ||
|
2
|
2
25015-020
TACHOMETER ASSY
|
25015-020 |
— | ||
|
3
|
3
92069-053 BULB-6V 3WBulb-6v 3w; |
92069-053 |
US $3.08 |
||
|
4
|
4
25011-015
SOCKET-SPEEDOMETER
|
25011-015 |
— | ||
|
5
|
5
92069-024 BULB 6V 1.5WBulb 6v 1.5w; |
92069-024 |
from US $2.87 |
||
| replacement | |||||
|
5
|
5
92069-053 BULB-6V 3WBulb 6v 1.5w; |
92069-053 |
US $3.08 |
||
|
6
|
6
25011-028 SOCKET-TACHOMETER |
25011-028 |
US $26.13 |
||
|
7
|
7
25012-003 COVER-SPEEDOMETER |
25012-003 |
US $20.57 |
||
|
8
|
8
92022-1561 WASHER,8.5X20X1.6Washer,8.5x20x1.6; |
92022-1561 |
from US $2.42 |
||
|
9
|
9
92075-155 DAMPER RUBBER |
92075-155 |
US $3.20 |
||
| replacement | |||||
|
9
|
9
92161-1084 DAMPER |
92161-1084 |
from US $1.36 |
||
|
10
|
10
92075-143 DAMPER RUBBER |
92075-143 |
US $1.80 |
||
|
11
|
11
92075-035 DAMPER, RUBBERDamper rubb speedmet; |
92075-035 |
from US $3.23 |
||
|
12
|
12
25008-015 BRACKET METER |
25008-015 |
US $23.05 |
||
|
13
|
13
92075-066
DAMPER RUBBER
|
92075-066 |
— | ||
|
14
|
14
92022-285 WASHER PL 5.2X18X1.2Washer pl 5.2x18x1.2; |
92022-285 |
from US $3.47 |
||
|
15
|
15
461F0500
WASHER-SPRING
Washer spring 5mm; |
461F0500 |
— | ||
| replacement | |||||
|
15
|
15
461DA0500 WASHER-SPRINGWasher spring 5mm; |
461DA0500 |
from US $0.42 |
||
|
16
|
16
322N0500 NUT-CAP,5MMNut-cap,5mm; |
322N0500 |
US $2.31 |
||
|
17
|
17
92075-024 DAMPER RUBB SPEEDMETRDamper rubb speedmet; |
92075-024 |
from US $2.58 |
||
|
18
|
18
92022-125
WASHER 6.5X20X1.6T
Washer 6.5x20x1.6t; |
92022-125 |
— | ||
| replacement | |||||
|
18
|
18
92200-0283 WASHER,6.5X20X1.6Washer 6.5x20x1.6t; |
92200-0283 |
from US $0.56 |
||
|
19
|
19
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
19
|
19
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.42 |
||
|
20
|
20
311B0600
NUT-HEX,6MM
Nut 6mm; |
311B0600 |
— | ||
| replacement | |||||
|
20
|
20
311AA0600 NUT-HEX,6MMNut 6mm; |
311AA0600 |
from US $0.73 |
||
|
21
|
21
27005-068
SWITCH ASSY,IGNITION
Switch assy,ignition; |
27005-068 |
— | ||
|
22
|
22
27008-042-55 KEY SET,#155Key set,#155; |
27008-042-55 |
US $8.87 |
||
|
23
|
23
92007-026
BOLT-HEX HEAD,6MM
Bolt-hex head,6mm; |
92007-026 |
— | ||
|
24
|
24
410B0800
WASHER-PLAIN-SMALL,8M
Washer plain 8mm; |
410B0800 |
— | ||
| replacement | |||||
|
24
|
24
410AA0800 WASHER-PLAIN-SMALL,8MWasher plain 8mm; |
410AA0800 |
from US $0.56 |
||
|
25
|
25
92075-077
DAMPER RUBBER
|
92075-077 |
— | ||
|
26
|
26
411B0800
WASHER PLAIN 8MM
Washer plain 8mm; |
411B0800 |
— | ||
| replacement | |||||
|
26
|
26
411AA0800 WASHER-PLAINWasher plain 8mm; |
411AA0800 |
from US $0.60 |
||
