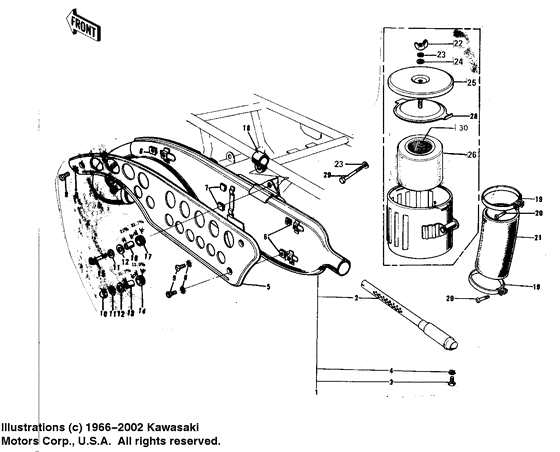

Air cleaner/muffler ('74-'75 f9-b/f9-c 350) Diagram Kawasaki Model "F" F9 Bighorn
- Year
- 1974
- Model code
- F9-B
- Sales region
- USA
- Engine Capacity
- 350
- Model
- F9
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
18033-079 BAFFLE TUBE |
18033-079 |
US $52.63 |
||
|
3
|
3
112G0612
BOLT-UPSET,6X12
Bolt-upset,6x12; |
112G0612 |
— | ||
| replacement | |||||
|
3
|
3
112BA0612 BOLT-UP SETBolt-upset,6x12; |
112BA0612 |
from US $1.25 |
||
|
4
|
4
463H0600 WASHER LOCK 6MM |
463H0600 |
US $0.45 |
||
|
5
|
5
18064-006 COVER-MUFFLER |
18064-006 |
US $32.40 |
||
|
6
|
6
18065009 INSULATOR-HEATInsulator-heat; |
18065009 |
US $3.37 |
||
|
7
|
7
18065007 INSULATOR |
18065007 |
US $4.12 |
||
|
8
|
8
463H0600 WASHER LOCK 6MM |
463H0600 |
US $0.45 |
||
|
9
|
9
220E0612 SCREW PAN HEAD 6X12 |
220E0612 |
from US $1.09 |
||
|
10
|
10
92020-007 NUT FUEL TANK FRONT |
92020-007 |
US $4.52 |
||
|
11
|
11
461F0800
WASHER-SPRING,8MM
Washer spring 8mm; |
461F0800 |
— | ||
| replacement | |||||
|
11
|
11
461DA0800 WASHER-SPRING,8MMWasher spring 8mm; |
461DA0800 |
from US $0.48 |
||
|
12
|
12
92022-035 WASHER,8X26X2.3 |
92022-035 |
US $3.29 |
||
| replacement | |||||
|
12
|
12
92022-1564 WASHER,8X26X2.3 |
92022-1564 |
from US $2.49 |
||
|
13
|
13
92027-102 COLLAR |
92027-102 |
from US $1.51 |
||
|
14
|
14
18063005 DAMPER RUBBER-MUFFLERDamper rubber-muffle; |
18063005 |
US $4.28 |
||
|
15
|
15
220B0840 SCREW-PAN HEAD,8X40Screw-pan head,8x40; |
220B0840 |
US $1.17 |
||
|
16
|
16
92027-146
COLLAR
|
92027-146 |
— | ||
|
17
|
17
18063-007
DAMPER RUBBER
|
18063-007 |
— | ||
|
18
|
18
32069-039
BRACKET,UPPER MUFFLER
Bracket,upper muffle; |
32069-039 |
— | ||
|
19
|
19
92037-129
CLAMP,AIR CLEANER
Clamp,air cleaner; |
92037-129 |
— | ||
|
1
|
1
18001-107-21
MUFFLER ASSY,F.BLACK
Muffler assy,f.black; |
18001-107-21 |
— | ||
|
2
|
2
18001-107-21
MUFFLER ASSY,F.BLACK
Muffler assy,f.black; |
18001-107-21 |
— | ||
|
3
|
3
18001-107-21
MUFFLER ASSY,F.BLACK
Muffler assy,f.black; |
18001-107-21 |
— | ||
|
4
|
4
18001-107-21
MUFFLER ASSY,F.BLACK
Muffler assy,f.black; |
18001-107-21 |
— | ||
|
20
|
20
220C0635 SCREW,6X35Screw-pan-cros,6x35,; |
220C0635 |
US $39.40 |
||
| replacement | |||||
|
20
|
20
92009-1357 SCREW,6X35Screw-pan-cros,6x35,; |
92009-1357 |
from US $3.11 |
||
|
21
|
21
11026-002 CONNECTOR |
11026-002 |
US $7.20 |
||
|
22
|
22
92015-030
NUT-WING,6MM
Nut-wing,6mm; |
92015-030 |
— | ||
|
23
|
23
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
23
|
23
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
24
|
24
411B0600 WASHER-PLAIN,6.5X13X1Washer plain 6mm; |
411B0600 |
US $1.90 |
||
| replacement | |||||
|
24
|
24
411AA0600 WASHER-PLAIN,(6.5x13x1)Washer plain 6mm; |
411AA0600 |
from US $2.13 |
||
|
25
|
25
11012-042 CAP,AIR CLEANERCap,air cleaner; |
11012-042 |
US $8.21 |
||
|
26
|
26
11013-045 ELEMENT,AIR,CLNRElement,air,clnr; |
11013-045 |
US $29.56 |
||
|
28
|
28
11018-001 HOLDER,AIR CLEANERHolder,air cleaner; |
11018-001 |
US $41.47 |
||
|
29
|
29
92001-1456 BOLT,EXCLUSIVEBolt,exclusive; |
92001-1456 |
from US $2.95 |
||
|
30
|
30
11013-015 ELEMENT AIR CLEANER |
11013-015 |
US $16.36 |
||
|
22
|
22
11010-072-21 AIR CLEANER ASSY,BLAKAir cleaner assy,bla; |
11010-072-21 |
US $85.28 |
||
|
23
|
23
11010-072-21 AIR CLEANER ASSY,BLAKAir cleaner assy,bla; |
11010-072-21 |
US $85.28 |
||
|
24
|
24
11010-072-21 AIR CLEANER ASSY,BLAKAir cleaner assy,bla; |
11010-072-21 |
US $85.28 |
||
|
25
|
25
11010-072-21 AIR CLEANER ASSY,BLAKAir cleaner assy,bla; |
11010-072-21 |
US $85.28 |
||
|
26
|
26
11010-072-21 AIR CLEANER ASSY,BLAKAir cleaner assy,bla; |
11010-072-21 |
US $85.28 |
||
|
27
|
27
11010-072-21 AIR CLEANER ASSY,BLAKAir cleaner assy,bla; |
11010-072-21 |
US $85.28 |
||
