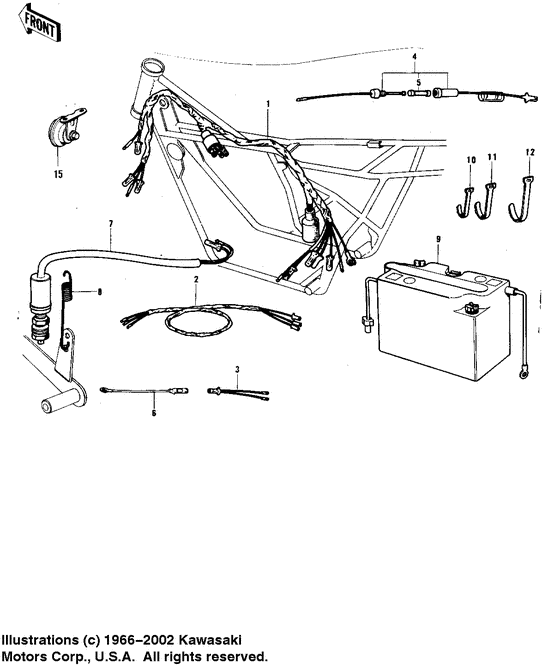

Chassis electrical equipment ('74-'75 f9-b/f9-c 350) Diagram Kawasaki Model "F" F9 Bighorn
- Year
- 1974
- Model code
- F9-B
- Sales region
- USA
- Engine Capacity
- 350
- Model
- F9
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
26001-091
WIRING HARNESS,MAIN
Wiring harness,main; |
26001-091 |
— | ||
|
2
|
2
26002-029
WIRING HARNESS-REAR
|
26002-029 |
— | ||
|
3
|
3
26011-042
LEAD WIRE
|
26011-042 |
— | ||
|
4
|
4
26004008 FUES ASSYF9c, f9c |
26004008 |
from US $17.71 |
||
|
5
|
5
26006003 FUSE,GLASS TUBE,6.4X2Fuse 10a; |
26006003 |
from US $3.48 |
||
|
6
|
6
26011-093
WIRE,LEAD
Wire,lead; |
26011-093 |
— | ||
|
7
|
7
27010-018 Superceded |
27010-018 |
US $19.30 |
||
| replacements | |||||
|
7
|
7
27010-1482 SWITCH,REAR BRAKE |
27010-1482 |
from US $27.33 |
||
|
7
|
7
27010-015
SWITCH,REAR BRAKE
|
27010-015 |
— | ||
|
8
|
8
27011004 SPRING,BRAKE LAMP SWISpring brake lamp sw; |
27011004 |
from US $3.71 |
||
| replacement | |||||
|
8
|
8
92145-0683 SPRING,BRAKE LAMP SWISpring brake lamp sw; |
92145-0683 |
from US $1.90 |
||
|
9
|
9
26012-035
YUA BAT 6N4B-2A-3
|
26012-035 |
— | ||
|
10
|
10
92072-030 BAND,SHORTBand,short; |
92072-030 |
from US $3.01 |
||
|
11
|
11
92072-031 BAND,MIDDLEBand,middle; |
92072-031 |
from US $3.01 |
||
|
12
|
12
92072-032 BAND,LONGBand,long; |
92072-032 |
from US $3.01 |
||
|
13
|
13
92072-056 BAND,WIRING HARNESSBand,wiring harness; F9c l=186m/m, f9c l=186m/m |
92072-056 |
from US $3.01 |
||
|
14
|
14
26016003
HOLDER,SPARE FUSE
Holder,spare fuse; F9c, f9c |
26016003 |
— | ||
|
15
|
15
27003-057 HORN |
27003-057 |
US $40.82 |
||
