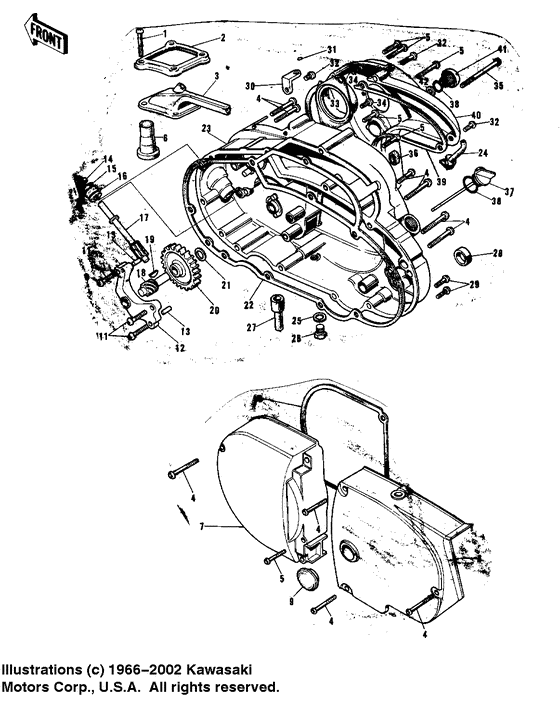

Engine covers ('74-'75 f9-b/f9-c 350) Diagram Kawasaki Model "F" F9 Bighorn
- Year
- 1974
- Model code
- F9-B
- Sales region
- USA
- Engine Capacity
- 350
- Model
- F9
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
220B0512
SCREW-PAN-CROS
Screw pan head 5x12; |
220B0512 |
— | ||
| replacement | |||||
|
1
|
1
220AA0512 SCREW-PAN-CROSScrew pan head 5x12; |
220AA0512 |
from US $0.78 |
||
|
2
|
2
14065-006
HOLDER,CARBURETOR CAP
Holder,carburetor ca; |
14065-006 |
— | ||
|
3
|
3
14038-038 CAP,CARBURETORCap,carburetor; |
14038-038 |
US $9.56 |
||
|
4
|
4
220B0655
SCREW-PAN HEAD,6X55
|
220B0655 |
— | ||
| replacement | |||||
|
4
|
4
220AA0655 SCREW-PAN HEAD,6X55 |
220AA0655 |
from US $1.43 |
||
|
5
|
5
220B0635
SCREW-PAN-CROSS,6X35
Screw pan head 6x35; |
220B0635 |
— | ||
| replacement | |||||
|
5
|
5
220AA0635 SCREW-PAN-CROSS,6X35Screw pan head 6x35; |
220AA0635 |
from US $0.63 |
||
|
6
|
6
92074-021 RUBBER PLUG-CARB CAP |
92074-021 |
US $1.91 |
||
|
7
|
7
14031-038-80
COVER,L.H ENGINE,BUFF
Cover,l.h engine,buf; |
14031-038-80 |
— | ||
|
8
|
8
14026-005-E8 COVER,CHAIN-CASECover,chain-case; |
14026-005-E8 |
US $82.66 |
||
|
9
|
9
14040-003 CAP-CLUTCH HOLE |
14040-003 |
US $4.03 |
||
|
10
|
10
14045-008
GASKET-L.H ENG COVER
|
14045-008 |
— | ||
|
11
|
11
220B0625
SCREW-PAN-CROSS,6X25
Screw pan head 6x25; |
220B0625 |
— | ||
| replacement | |||||
|
11
|
11
220AA0625 SCREW-PAN-CROSS,6X25Screw pan head 6x25; |
220AA0625 |
from US $0.95 |
||
|
12
|
12
14018-004 HOLDER-TACHOMETER GR |
14018-004 |
US $21.62 |
||
|
13
|
13
610A0512 PIN DOWEL 5X12Pin dowel 5x12; |
610A0512 |
from US $0.94 |
||
|
14
|
14
92054-004 OIL SEAL |
92054-004 |
from US $9.17 |
||
|
15
|
15
92055-025 0 RING"0" ring; |
92055-025 |
from US $2.85 |
||
|
16
|
16
92028-075
BUSH
|
92028-075 |
— | ||
|
17
|
17
13223-004
GEAR-TACHOMETER
|
13223-004 |
— | ||
|
18
|
18
13224-006 PINION-TACHOMETER |
13224-006 |
US $44.50 |
||
|
19
|
19
510A3100 WOODRUFF KEYWoodruff key; |
510A3100 |
from US $3.40 |
||
|
20
|
20
16085-014 GEAR-OIL PUMP33t, 33t |
16085-014 |
US $17.89 |
||
|
21
|
21
92026-025
WASHER THRUST
|
92026-025 |
— | ||
|
22
|
22
14046-020 GASKET-R.H-ENG.CVR |
14046-020 |
US $13.09 |
||
|
23
|
23
14032-090-80 COVER,R.H ENGINE,BUFFCover,r.h engine,buf; |
14032-090-80 |
US $211.41 |
||
|
24
|
24
16135-006
GROMMET OIL PIPE
|
16135-006 |
— | ||
|
25
|
25
92065-058 GASKETGasket check valve; |
92065-058 |
from US $3.37 |
||
|
26
|
26
92067-001 PLUG, OIL DRAINPlug oil drain; |
92067-001 |
from US $3.73 |
||
|
27
|
27
16116-001 PIPE FUEL OVERFLOW |
16116-001 |
from US $5.47 |
||
|
28
|
28
92049-012 OIL SEAL SB20285Oil seal sb20285; |
92049-012 |
from US $10.67 |
||
|
29
|
29
220B0630
SCREW-PAN HEAD,6X30
Screw pan head 6x30; |
220B0630 |
— | ||
| replacement | |||||
|
29
|
29
220AA0630 SCREW-PAN HEAD,6X30Screw pan head 6x30; |
220AA0630 |
from US $1.25 |
||
|
30
|
30
14044-005 HOLDER-OIL PUMP CABLEHolder-oil pump cabl; |
14044-005 |
US $4.09 |
||
|
31
|
31
92036-017
CIRCLIP
|
92036-017 |
— | ||
|
32
|
32
220B0620 SCREW PAN HEAD 6X20Screw pan head 6x20; |
220B0620 |
US $1.27 |
||
| replacement | |||||
|
32
|
32
220AA0620 SCREW-PAN HEAD,6X20Screw pan head 6x20; |
220AA0620 |
from US $0.95 |
||
|
33
|
33
16065-010
HOLDER-CARBURETOR
|
16065-010 |
— | ||
|
34
|
34
220B0612 Screw-pan head,6x12Screw pan head 6x12; |
220B0612 |
US $1.11 |
||
| replacements | |||||
|
34
|
34
220AA0612 SCREW-PAN-CROSS,6X12Screw pan head 6x12; |
220AA0612 |
from US $0.91 |
||
|
34
|
34
214B0612
Screw-pan+-
Screw pan head 6x12; |
214B0612 |
— | ||
|
35
|
35
220B0670
SCREW-PAN HEAD,6X70
Screw pan head 6x70; |
220B0670 |
— | ||
| replacement | |||||
|
35
|
35
220AA0670 SCREW-PAN HEAD,6X70Screw pan head 6x70; |
220AA0670 |
from US $1.24 |
||
|
36
|
36
14064-001 STOPPER-CARBURETOR |
14064-001 |
US $1.17 |
||
|
37
|
37
16115-017
PLUG-OIL FILLER
|
16115-017 |
— | ||
|
38
|
38
670B2020 0 RING,20MM"0" ring,20mm; |
670B2020 |
from US $1.68 |
||
|
39
|
39
14048-002 GASKET,CARBURETOR CVRGasket-carburetor co; |
14048-002 |
US $31.90 |
||
| replacement | |||||
|
39
|
39
11060-1477
GASKET,CARBURETOR CVR
Gasket-carburetor co; |
11060-1477 |
— | ||
|
40
|
40
14030-034-80
COVER,CARBURETOR,BUFF
Cover,carburetor,buf; |
14030-034-80 |
— | ||
|
41
|
41
92067-015
PLUG,CARBURETOR COVER
Plug,carburetor cove; |
92067-015 |
— | ||
|
42
|
42
92094-010
WASHER-RUBBER
|
92094-010 |
— | ||
