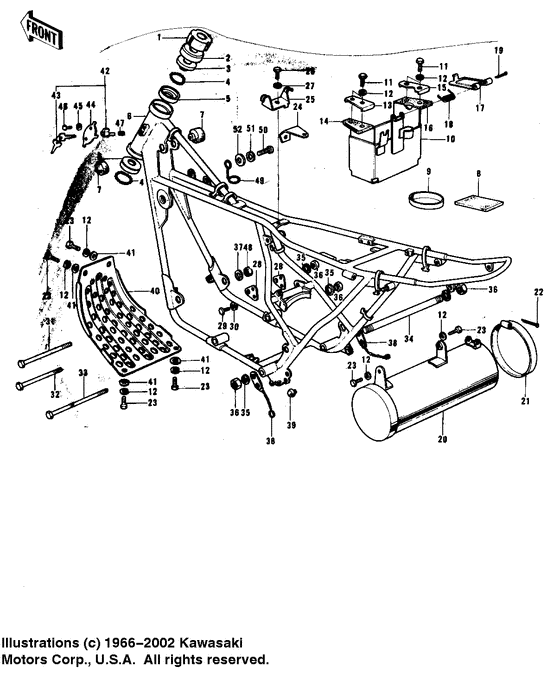

Frame/frame fittings Diagram Kawasaki Model "F" F9 Bighorn
- Year
- 1974
- Model code
- F9-B
- Sales region
- USA
- Engine Capacity
- 350
- Model
- F9
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
92090-006 NUT STEERING STEM LCKNut steering stem lc; |
92090-006 |
from US $10.67 |
||
|
2
|
2
46098-011 CAP-STEERING STEM |
46098-011 |
US $8.77 |
||
|
3
|
3
92047-003
CONE STERNG BERG UPP
|
92047-003 |
— | ||
|
4
|
4
600A0800 BALL,6.35MMBall steel 1/4'; |
600A0800 |
from US $0.91 |
||
|
5
|
5
92048-005 RACE STEERING BEARINGRace steering bearin; |
92048-005 |
from US $10.77 |
||
|
6
|
6
32002-082 FRAME |
32002-082 |
US $862.81 |
||
|
7
|
7
92075-050
DAMPER RUBB FUEL TANK
Damper rubb fuel tan; |
92075-050 |
— | ||
|
8
|
8
32103-022
MAT-BATTERY
|
32103-022 |
— | ||
|
9
|
9
32103023
MAT-BATTERY SIDE
Mat-battery side; |
32103023 |
— | ||
|
10
|
10
32097-025 CASE,BATTERYCase,battery; |
32097-025 |
US $27.16 |
||
|
11
|
11
112G0618
BOLT-UPSET
|
112G0618 |
— | ||
| replacement | |||||
|
11
|
11
112BA0618 BOLT-UPSET |
112BA0618 |
from US $0.95 |
||
|
12
|
12
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
12
|
12
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
13
|
13
32101-006 PLATE,L.H BATERY CASEPlate,l.h batery cas; |
32101-006 |
US $1.03 |
||
|
14
|
14
92075-152 DAMPER RUBBER-BATTERY |
92075-152 |
US $1.31 |
||
|
15
|
15
32101-007 PLATE,R.H BATERY CASEPlate,r.h batery cas; |
32101-007 |
US $1.03 |
||
|
16
|
16
92075-153 DAMPER RUBBER,BATTERYDamper rubber,batter; |
92075-153 |
US $1.85 |
||
|
17
|
17
92072-048 BAND,BATTERYBand,battery; |
92072-048 |
US $2.41 |
||
|
18
|
18
92083-017
SPRING-RETURN
|
92083-017 |
— | ||
|
19
|
19
550D2535 PIN-COTTER,2.5X35Pin-cotter,2.5x35; F9c, f9c |
550D2535 |
US $20.90 |
||
|
20
|
20
32098-014-21 BOX-TOOL,BLACKBox-tool,black; |
32098-014-21 |
US $38.02 |
||
|
21
|
21
32099-005
CAP-TOOL CASE
|
32099-005 |
— | ||
|
22
|
22
550D2030 PIN COTTER 2.0X30 |
550D2030 |
US $1.10 |
||
|
23
|
23
112G0612
BOLT-UPSET,6X12
Bolt-upset,6x12; |
112G0612 |
— | ||
| replacement | |||||
|
23
|
23
112BA0612 BOLT-UP SETBolt-upset,6x12; |
112BA0612 |
from US $1.25 |
||
|
24
|
24
27023-001 BRACKET-TRN.SGNL.RLY |
27023-001 |
US $3.91 |
||
|
25
|
25
32052-046 BRACKET,FUEL TANKBracket,fuel tank; |
32052-046 |
US $2.02 |
||
|
26
|
26
115G0818 BOLT-SMALL-UPSET,8X18Bolt-small-upset,8x1; |
115G0818 |
US $1.58 |
||
| replacement | |||||
|
26
|
26
115BA0818 BOLT-SMALL-UPSET,8X18Bolt-small-upset,8x1; |
115BA0818 |
from US $0.94 |
||
|
27
|
27
461F0800
WASHER-SPRING,8MM
Washer spring 8mm; |
461F0800 |
— | ||
| replacement | |||||
|
27
|
27
461DA0800 WASHER-SPRING,8MMWasher spring 8mm; |
461DA0800 |
from US $0.48 |
||
|
28
|
28
32030-020
PLATE-ENGINE MOUNT
|
32030-020 |
— | ||
|
29
|
29
115G0820 BOLT-SMALL-UPSETBolt,8x20; |
115G0820 |
US $48.10 |
||
| replacement | |||||
|
29
|
29
115BA0820 BOLT-SMALL-UPSETBolt,8x20; |
115BA0820 |
from US $1.12 |
||
|
30
|
30
461F0800
WASHER-SPRING,8MM
Washer spring 8mm; |
461F0800 |
— | ||
| replacement | |||||
|
30
|
30
461DA0800 WASHER-SPRING,8MMWasher spring 8mm; |
461DA0800 |
from US $0.48 |
||
|
31
|
31
113B12163A
BOLT-HEX HEAD,12X163
Bolt-hex head,12x163; |
113B12163A |
— | ||
|
32
|
32
113B12151A
BOLT-HEX HEAD,12X151
Bolt, hex head,12x151; |
113B12151A |
— | ||
|
33
|
33
113B12260A BOLT-HEX HEAD,12X260Bolt-hex head,12x260; |
113B12260A |
US $11 |
||
|
34
|
34
92006-002
STUD
|
92006-002 |
— | ||
|
35
|
35
461F1200 WASHER-SPRING,12MMWasher spring 12mm; |
461F1200 |
US $1.30 |
||
| replacement | |||||
|
35
|
35
461DA1200 WASHER-SPRING,12MMWasher spring 12mm; |
461DA1200 |
from US $0.86 |
||
|
36
|
36
314B1200
NUT-HEX-FINE
|
314B1200 |
— | ||
| replacement | |||||
|
36
|
36
314AA1200 NUT-HEX-FINE |
314AA1200 |
from US $1.09 |
||
|
37
|
37
410B1200 WASHER PLAIN 12MMWasher plain 12mm; G3ssd, g3ssd |
410B1200 |
from US $0.95 |
||
| replacement | |||||
|
37
|
37
410AA1200 WASHER-PLAIN-SMALL,12Washer plain 12mm; G3ssd, g3ssd |
410AA1200 |
from US $0.95 |
||
|
38
|
38
58041-007
CHAIN
|
58041-007 |
— | ||
|
39
|
39
92074-005
PLUG RUBBER
|
92074-005 |
— | ||
|
40
|
40
55011-011
GUARD-ENGINE
|
55011-011 |
— | ||
|
41
|
41
92022-125
WASHER 6.5X20X1.6T
Washer 6.5x20x1.6t; |
92022-125 |
— | ||
| replacement | |||||
|
41
|
41
92200-0283 WASHER,6.5X20X1.6Washer 6.5x20x1.6t; |
92200-0283 |
from US $0.72 |
||
|
42
|
42
27016042 LOCK ASSY,STEERINGLock assy,steering; |
27016042 |
from US $30.64 |
||
|
43
|
43
27008-063-11 KEY SET,#411Key set,#411; |
27008-063-11 |
US $21.46 |
||
|
44
|
44
11012-1134 CAP,STEERING LOCKCap,steering lock; |
11012-1134 |
from US $5.07 |
||
|
45
|
45
92003-003 BOLT,10X32Washer-wave; |
92003-003 |
US $4.16 |
||
| replacement | |||||
|
45
|
45
92150-1872 BOLT,10X32Washer-wave; |
92150-1872 |
from US $4.12 |
||
|
46
|
46
92008-007 SCREW-TAPPINGScrew-tapping; |
92008-007 |
from US $3.73 |
||
|
47
|
47
27032001 SPRING-STEERING LOCKSpring-steering lock; |
27032001 |
from US $3.37 |
||
|
48
|
48
92019-009 NUT-LOCK,12MMNut-lock,12mm; |
92019-009 |
US $8.91 |
||
| replacement | |||||
|
48
|
48
92210-1373 NUT,LOCK,12MMNut-lock,12mm; |
92210-1373 |
from US $3.96 |
||
|
49
|
49
92037-053 CLAMP |
92037-053 |
US $1.78 |
||
|
50
|
50
112G0610
BOLT,6X10
Bolt,6x10; |
112G0610 |
— | ||
| replacement | |||||
|
50
|
50
112BA0610 BOLT-UPSETBolt,6x10; |
112BA0610 |
from US $0.92 |
||
|
51
|
51
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
51
|
51
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
52
|
52
411B0600 WASHER-PLAIN,6.5X13X1Washer plain 6mm; |
411B0600 |
US $1.90 |
||
| replacement | |||||
|
52
|
52
411AA0600 WASHER-PLAIN,(6.5x13x1)Washer plain 6mm; |
411AA0600 |
from US $2.13 |
||
