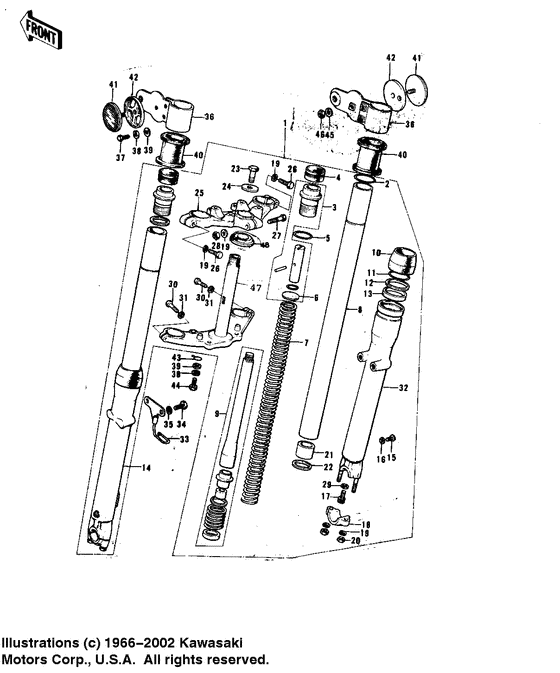

Front fork ('74-'75 f9-b/f9-c 350) Diagram Kawasaki Model "F" F9 Bighorn
- Year
- 1974
- Model code
- F9-B
- Sales region
- USA
- Engine Capacity
- 350
- Model
- F9
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44001-127 FORK-FRONT |
44001-127 |
US $1,078.51 |
||
|
2
|
2
44044-009
CIRCLIP
|
44044-009 |
— | ||
|
3
|
3
44041-047 BOLT,FORK TOPBolt,fork top; |
44041-047 |
US $41.31 |
||
|
4
|
4
44062-004 CAP-FORK TOP BOLT |
44062-004 |
US $2.41 |
||
|
5
|
5
44046-015
'O' RING FORK TOP
|
44046-015 |
— | ||
|
6
|
6
44029-015 WASHER-FORK SPRG SEATWasher-fork sprg sea; |
44029-015 |
US $0.45 |
||
|
7
|
7
44026-028 SPRING-FORK |
44026-028 |
US $32.40 |
||
|
8
|
8
44013-022
TUBE-FORK INNER
|
44013-022 |
— | ||
|
9
|
9
44022-009 CYLINDER-FORK |
44022-009 |
US $101.81 |
||
|
10
|
10
44010-019
DUST SHIELD-FORK
|
44010-019 |
— | ||
|
11
|
11
44044-005 CIRCLIP OIL SEAL FIT |
44044-005 |
US $9.05 |
||
|
12
|
12
44043-023 WASHER OIL SEAL FIT |
44043-023 |
US $2.95 |
||
|
13
|
13
44009-011 New Genuine PartOil seal,fork; F9c, f9c |
44009-011 |
US $25.20 |
||
| replacement | |||||
|
13
|
13
44009-026 OIL SEALOil seal,fork; F9c, f9c |
44009-026 |
from US $26.76 |
||
|
14
|
14
44005-053 TUBE,LH,FORK OUTERTube,lh,fork outer; |
44005-053 |
US $210.42 |
||
|
15
|
15
44041-062 SCREW |
44041-062 |
US $2.88 |
||
|
16
|
16
44045002 GASKET FORK DRAIN PLGGasket fork drain pl; |
44045002 |
from US $3.96 |
||
|
17
|
17
44041040 BOLT-FORK CYLINDERBolt-fork cylinder; |
44041040 |
from US $4.44 |
||
|
18
|
18
44063-007 HOLDER,FRONT AXLEHolder,front axle; |
44063-007 |
US $16.94 |
||
|
19
|
19
461F0800
WASHER-SPRING,8MM
Washer spring 8mm; |
461F0800 |
— | ||
| replacement | |||||
|
19
|
19
461DA0800 WASHER-SPRING,8MMWasher spring 8mm; |
461DA0800 |
from US $0.48 |
||
|
20
|
20
311B0800
Nut,8mm
Nut,8mm; |
311B0800 |
— | ||
| replacements | |||||
|
20
|
20
317AA0800 NUT-HEX-SMALLNut,8mm; |
317AA0800 |
from US $0.94 |
||
|
20
|
20
311AA0800 NUT-HEX-SMALLNut,8mm; |
311AA0800 |
US $0.40 |
||
|
21
|
21
44018-003 PISTON FORK |
44018-003 |
US $15.64 |
||
|
22
|
22
44044-008 CIRCLIP FORK PISTON |
44044-008 |
US $9.36 |
||
|
23
|
23
44041007 BOLT STRNG STEM HEAD |
44041007 |
US $14.89 |
||
|
24
|
24
44043016
WASHER STRNG STEM HD
|
44043016 |
— | ||
|
25
|
25
44039-060 HEAD,STEERING STEMHead,steering stem; |
44039-060 |
US $176.02 |
||
|
26
|
26
44041-044
BOLT-STEERING STEM HD
Bolt-steering stem h; |
44041-044 |
— | ||
|
27
|
27
44041-042
BOLT-STEERING STEM HD
Bolt-steering stem h; |
44041-042 |
— | ||
|
28
|
28
92015-1124 NUT,LOCK,8MMNut,lock,8mm; |
92015-1124 |
from US $3.17 |
||
|
29
|
29
44045-030 GASKET FORK CYL BOLT |
44045-030 |
US $3.35 |
||
|
30
|
30
92003-064 BOLT-HEX HEAD,12X36Bolt-hex head,12x36; |
92003-064 |
from US $9.49 |
||
|
31
|
31
461F1200 WASHER-SPRING,12MMWasher spring 12mm; |
461F1200 |
US $1.30 |
||
| replacement | |||||
|
31
|
31
461DA1200 WASHER-SPRING,12MMWasher spring 12mm; |
461DA1200 |
from US $0.86 |
||
|
32
|
32
44006-051 TUBE,RH,FORK OUTERTube,rh,fork outer; |
44006-051 |
US $236.90 |
||
|
33
|
33
54030-007 GUIDE-CABLE |
54030-007 |
US $6.39 |
||
|
34
|
34
114G0812 BOLT-SMALL-UPSET,8X12 |
114G0812 |
US $24.30 |
||
| replacement | |||||
|
34
|
34
115G0812 BOLT-SMALL-UPSET,8X12 |
115G0812 |
US $2.43 |
||
|
35
|
35
461F0800
WASHER-SPRING,8MM
Washer spring 8mm; |
461F0800 |
— | ||
| replacement | |||||
|
35
|
35
461DA0800 WASHER-SPRING,8MMWasher spring 8mm; |
461DA0800 |
from US $0.48 |
||
|
36
|
36
23064-010-21 BRACKET-HEAD LAMP,BLKBracket-head lamp,bl; |
23064-010-21 |
US $11 |
||
|
37
|
37
92007-027 BOLT-HEX HEAD,6X18Bolt-hex head,6x18; |
92007-027 |
US $5.26 |
||
|
38
|
38
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
38
|
38
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
39
|
39
411B0600 WASHER-PLAIN,6.5X13X1Washer plain 6mm; |
411B0600 |
US $1.90 |
||
| replacement | |||||
|
39
|
39
411AA0600 WASHER-PLAIN,(6.5x13x1)Washer plain 6mm; |
411AA0600 |
from US $2.13 |
||
|
40
|
40
92075-059
DAMPER RUBBER
|
92075-059 |
— | ||
|
41
|
41
28012-006 REFLECTOR-REFLEX,FRNTReflector-reflex,frn; |
28012-006 |
US $23.27 |
||
|
42
|
42
92075-137 DAMPER RUBBER |
92075-137 |
US $4.73 |
||
|
43
|
43
92037-083 CLAMP |
92037-083 |
US $2.32 |
||
|
44
|
44
112B0614
BOLT-UPSET
Bolt-upset 6x14; |
112B0614 |
— | ||
| replacements | |||||
|
44
|
44
112AA0614 BOLT-UPSETBolt-upset 6x14; |
112AA0614 |
from US $0.82 |
||
|
44
|
44
112BA0614 BOLT-UPSETBolt-upset 6x14; |
112BA0614 |
from US $1.43 |
||
|
45
|
45
461F0500
WASHER-SPRING
Washer spring 5mm; |
461F0500 |
— | ||
| replacement | |||||
|
45
|
45
461DA0500 WASHER-SPRINGWasher spring 5mm; |
461DA0500 |
from US $0.48 |
||
|
46
|
46
311B0500
NUT-HEX,5MM
Nut,5mm; |
311B0500 |
— | ||
| replacement | |||||
|
46
|
46
311AA0500 NUT-HEX,5MMNut,5mm; |
311AA0500 |
from US $0.78 |
||
|
47
|
47
44037-055 STEM,STEERINGStem,steering; |
44037-055 |
US $154.76 |
||
|
48
|
48
92047-010 CONE STERNG BERG LOWCone sterng berg low; |
92047-010 |
from US $9.66 |
||
