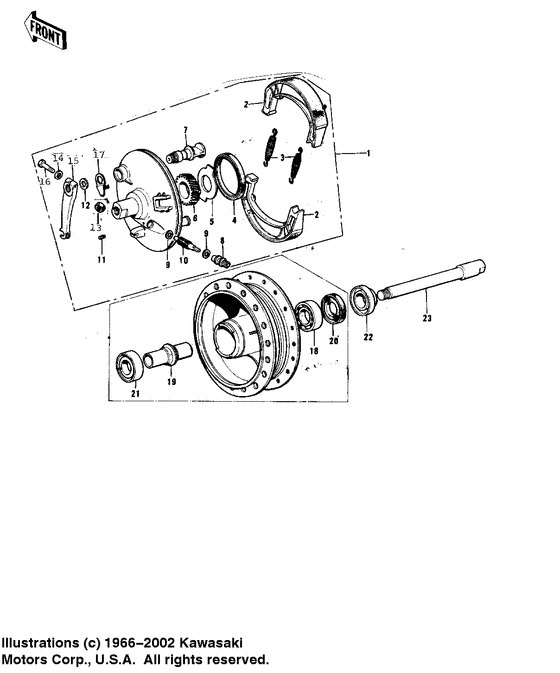

Front hub/brake ('74-'75 f9-b/f9-c 350) Diagram Kawasaki Model "F" F9 Bighorn
- Year
- 1974
- Model code
- F9-B
- Sales region
- USA
- Engine Capacity
- 350
- Model
- F9
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
42019-011
SHOE-BRAKE
Shoe,brake; F9c, f9c |
42019-011 |
— | ||
| replacement | |||||
|
2
|
2
41048-1107
SHOE-BRAKE
Shoe,brake; F9c, f9c |
41048-1107 |
— | ||
|
3
|
3
42020-004 SPRING-BRAKE SHOESpring-brake shoe; |
42020-004 |
from US $6.18 |
||
|
4
|
4
92050-010 OIL SEAL F BRK PANELOil seal f brk panel; |
92050-010 |
from US $11.51 |
||
|
5
|
5
41064-003 RECIEVER GEAR |
41064-003 |
from US $5.80 |
||
|
6
|
6
41059-011 GEAR-SPEEDOMETER28t, 28t |
41059-011 |
US $18.18 |
||
|
7
|
7
42026-021 CAM SHAFT,REAR BRAKECam shaft,rear brake; F9c, f9c |
42026-021 |
from US $18.68 |
||
|
8
|
8
41062-001 BUSH SPEEDMETER CABLEBush speedmeter cabl; F9c, f9c |
41062-001 |
US $10.22 |
||
|
9
|
9
41063001 WASHER THRST SPD PINIWasher thrst spd pin; |
41063001 |
from US $3.17 |
||
|
10
|
10
41060-010 PINION-SPEEDOMETER |
41060-010 |
US $15.95 |
||
|
11
|
11
41070-004 SCREW-BUSHING NETF9c, f9c |
41070-004 |
US $0.45 |
||
|
12
|
12
41051001 DUST SHIELD BRAKE CAMDust shield brake ca; |
41051001 |
from US $3.17 |
||
|
13
|
13
311B0600
NUT-HEX,6MM
Nut 6mm; |
311B0600 |
— | ||
| replacement | |||||
|
13
|
13
311AA0600 NUT-HEX,6MMNut 6mm; |
311AA0600 |
from US $0.63 |
||
|
14
|
14
410B0600
WASHER-PLAIN-SMALL
Washer plain 6mm; |
410B0600 |
— | ||
| replacement | |||||
|
14
|
14
410AA0600 WASHER-PLAIN-SMALLWasher plain 6mm; |
410AA0600 |
from US $0.79 |
||
|
15
|
15
42029-037
LEVER,REAR BRAKE CAM
Lever,rear brake cam; F9c, f9c |
42029-037 |
— | ||
|
16
|
16
110R0635 BOLT 6X35Bolt 6x35; F9c, f9c |
110R0635 |
from US $1.58 |
||
|
17
|
17
41085005 INDICATOR,FR BRK PNLIndicator,fr brk pnl; |
41085005 |
from US $9.19 |
||
|
18
|
18
601B6202Z
BEARING BALL #6202Z
|
601B6202Z |
— | ||
|
19
|
19
41039-004 SPACER FR HUB BEARINGSpacer fr hub bearin; F9c, f9c |
41039-004 |
from US $7.93 |
||
|
20
|
20
601B6202 BEARING BALL #6202Bearing ball #6202; |
601B6202 |
from US $10.03 |
||
|
21
|
21
92050-008 OIL SEAL RR BRK DRUM |
92050-008 |
from US $9.49 |
||
|
22
|
22
41069-004 COLLAR FRONT HUB R.HF9c, f9c |
41069-004 |
US $5.54 |
||
|
23
|
23
41068-029 AXLE-FRONTF9c, f9c |
41068-029 |
US $26.86 |
||
|
24
|
24
43007-022 TORQUE LINK-FRNT BRK |
43007-022 |
US $13.61 |
||
|
25
|
25
92088-012 WASHER-LOCK |
92088-012 |
US $5.71 |
||
|
26
|
26
92001-086 BOLT-HEA HEAD,8X20Bolt-hea head,8x20; |
92001-086 |
US $2.05 |
||
|
1
|
1
41035-045-80 PANEL-ASY,FR BRK BUFFPanel-asy,fr brk buf; Buff finish f9c, buff finish f9c |
41035-045-80 |
US $267.79 |
||
|
2
|
2
41035-045-80 PANEL-ASY,FR BRK BUFFPanel-asy,fr brk buf; Buff finish f9c, buff finish f9c |
41035-045-80 |
US $267.79 |
||
|
3
|
3
41035-045-80 PANEL-ASY,FR BRK BUFFPanel-asy,fr brk buf; Buff finish f9c, buff finish f9c |
41035-045-80 |
US $267.79 |
||
|
4
|
4
41035-045-80 PANEL-ASY,FR BRK BUFFPanel-asy,fr brk buf; Buff finish f9c, buff finish f9c |
41035-045-80 |
US $267.79 |
||
|
5
|
5
41035-045-80 PANEL-ASY,FR BRK BUFFPanel-asy,fr brk buf; Buff finish f9c, buff finish f9c |
41035-045-80 |
US $267.79 |
||
|
6
|
6
41035-045-80 PANEL-ASY,FR BRK BUFFPanel-asy,fr brk buf; Buff finish f9c, buff finish f9c |
41035-045-80 |
US $267.79 |
||
|
7
|
7
41035-045-80 PANEL-ASY,FR BRK BUFFPanel-asy,fr brk buf; Buff finish f9c, buff finish f9c |
41035-045-80 |
US $267.79 |
||
|
8
|
8
41035-045-80 PANEL-ASY,FR BRK BUFFPanel-asy,fr brk buf; Buff finish f9c, buff finish f9c |
41035-045-80 |
US $267.79 |
||
|
9
|
9
41035-045-80 PANEL-ASY,FR BRK BUFFPanel-asy,fr brk buf; Buff finish f9c, buff finish f9c |
41035-045-80 |
US $267.79 |
||
|
10
|
10
41035-045-80 PANEL-ASY,FR BRK BUFFPanel-asy,fr brk buf; Buff finish f9c, buff finish f9c |
41035-045-80 |
US $267.79 |
||
|
11
|
11
41035-045-80 PANEL-ASY,FR BRK BUFFPanel-asy,fr brk buf; Buff finish f9c, buff finish f9c |
41035-045-80 |
US $267.79 |
||
|
12
|
12
41035-045-80 PANEL-ASY,FR BRK BUFFPanel-asy,fr brk buf; Buff finish f9c, buff finish f9c |
41035-045-80 |
US $267.79 |
||
|
13
|
13
41035-045-80 PANEL-ASY,FR BRK BUFFPanel-asy,fr brk buf; Buff finish f9c, buff finish f9c |
41035-045-80 |
US $267.79 |
||
|
14
|
14
41035-045-80 PANEL-ASY,FR BRK BUFFPanel-asy,fr brk buf; Buff finish f9c, buff finish f9c |
41035-045-80 |
US $267.79 |
||
|
15
|
15
41035-045-80 PANEL-ASY,FR BRK BUFFPanel-asy,fr brk buf; Buff finish f9c, buff finish f9c |
41035-045-80 |
US $267.79 |
||
|
16
|
16
41035-045-80 PANEL-ASY,FR BRK BUFFPanel-asy,fr brk buf; Buff finish f9c, buff finish f9c |
41035-045-80 |
US $267.79 |
||
|
18
|
18
41034-022 DRUM-ASSY,FR BRKDrum-assy,fr brk; F9c, f9c |
41034-022 |
US $221.67 |
||
|
19
|
19
41034-022 DRUM-ASSY,FR BRKDrum-assy,fr brk; F9c, f9c |
41034-022 |
US $221.67 |
||
|
20
|
20
41034-022 DRUM-ASSY,FR BRKDrum-assy,fr brk; F9c, f9c |
41034-022 |
US $221.67 |
||
|
21
|
21
41034-022 DRUM-ASSY,FR BRKDrum-assy,fr brk; F9c, f9c |
41034-022 |
US $221.67 |
||
