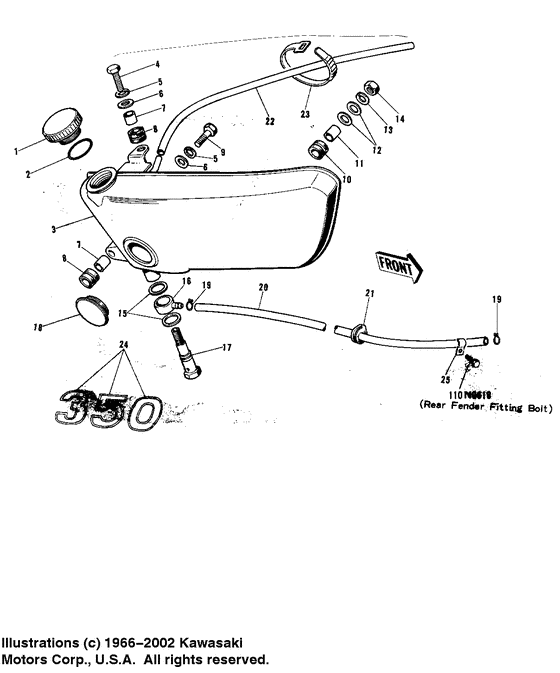

Oil tank ('74-'75 f9-b/f9-c 350) Diagram Kawasaki Model "F" F9 Bighorn
- Year
- 1974
- Model code
- F9-B
- Sales region
- USA
- Engine Capacity
- 350
- Model
- F9
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
52003-009
CAP OIL TANK
|
52003-009 |
— | ||
|
2
|
2
670B3036 0 RING,36MM"0" ring,36mm; |
670B3036 |
from US $1.45 |
||
|
3
|
3
52001-020-21
TANK,OIL,F.BLACK
Tank,oil,f.black; |
52001-020-21 |
— | ||
|
4
|
4
112G0625
BOLT-UPSET,6X25
|
112G0625 |
— | ||
| replacement | |||||
|
4
|
4
112BA0625 BOLT-UPSET,6X25 |
112BA0625 |
from US $1.07 |
||
|
5
|
5
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
5
|
5
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
6
|
6
92022-125
WASHER 6.5X20X1.6T
Washer 6.5x20x1.6t; 1.d=6.50, 1.d=6.50 |
92022-125 |
— | ||
| replacement | |||||
|
6
|
6
92200-0283 WASHER,6.5X20X1.6Washer 6.5x20x1.6t; 1.d=6.50, 1.d=6.50 |
92200-0283 |
from US $0.72 |
||
|
7
|
7
92027-103 COLLAR0.d=100, 0.d=100 |
92027-103 |
from US $2.38 |
||
|
8
|
8
92075-051 DAMPER RUBBERDamper rubber; 1.d=90, 1.d=90 |
92075-051 |
from US $2.69 |
||
|
9
|
9
112G0618
BOLT-UPSET
|
112G0618 |
— | ||
| replacement | |||||
|
9
|
9
112BA0618 BOLT-UPSET |
112BA0618 |
from US $0.95 |
||
|
10
|
10
18063005 DAMPER RUBBER-MUFFLERDamper rubber-muffle; 1.d=11.50, 1.d=11.50 |
18063005 |
US $4.28 |
||
|
11
|
11
92027-102 COLLAR0.d=120, 0.d=120 |
92027-102 |
from US $1.51 |
||
|
12
|
12
92022-035 WASHER,8X26X2.31.d=80, 1.d=80 |
92022-035 |
US $3.29 |
||
| replacement | |||||
|
12
|
12
92022-1564 WASHER,8X26X2.31.d=80, 1.d=80 |
92022-1564 |
from US $2.49 |
||
|
13
|
13
461F0800
WASHER-SPRING,8MM
Washer spring 8mm; |
461F0800 |
— | ||
| replacement | |||||
|
13
|
13
461DA0800 WASHER-SPRING,8MMWasher spring 8mm; |
461DA0800 |
from US $0.48 |
||
|
14
|
14
311B0800
Nut,8mm
Nut,8mm; |
311B0800 |
— | ||
| replacements | |||||
|
14
|
14
317AA0800 NUT-HEX-SMALLNut,8mm; |
317AA0800 |
from US $0.94 |
||
|
14
|
14
311AA0800 NUT-HEX-SMALLNut,8mm; |
311AA0800 |
US $0.40 |
||
|
15
|
15
11009-1146 GASKET,10,2X15X1.5TGasket,10,2x15x1.5t; |
11009-1146 |
from US $2.77 |
||
|
16
|
16
92061-003
CONNECTOR BANJO
|
92061-003 |
— | ||
|
17
|
17
92060-001
BOLT OIL TANK BANJO
|
92060-001 |
— | ||
|
18
|
18
52015-001
GAUGE OIL LEVEL
|
52015-001 |
— | ||
|
19
|
19
92037-010 CLAMP FUEL PIPEClamp fuel pipe; |
92037-010 |
from US $2.69 |
||
|
20
|
20
92059-064
PIPE,OIL TANK
L=580 m\m, l=580 m\m |
92059-064 |
— | ||
| replacement | |||||
|
20
|
20
92059-057
PIPE,OIL TANK
L=580 m\m, l=580 m\m |
92059-057 |
— | ||
|
21
|
21
92071-041 GROMMET-OIL PIPE |
92071-041 |
US $0.90 |
||
|
22
|
22
700Q05540 TUBE-VINYL,5X540Tube-vinyl,5x540; |
700Q05540 |
US $0.47 |
||
|
23
|
23
92072-030 BAND,SHORTBand,short; |
92072-030 |
from US $3.01 |
||
|
24
|
24
56018-132 EMBLEM,OIL TANKEmblem,oil tank; F9c, f9c |
56018-132 |
US $18.63 |
||
|
25
|
25
92037-020
CLAMP CABLE
|
92037-020 |
— | ||
