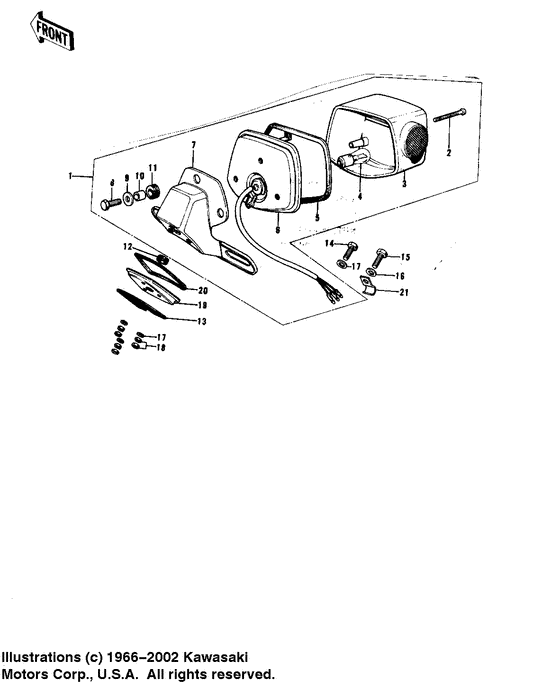

Taillight Diagram Kawasaki Model "F" F9 Bighorn
- Year
- 1974
- Model code
- F9-B
- Sales region
- USA
- Engine Capacity
- 350
- Model
- F9
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
23024-046-21 LAMP ASSY,TAIL,F.BLKLamp assy,tail,f.blk; |
23024-046-21 |
US $107.08 |
||
|
2
|
2
220R0455 SCREWF9b, f9c, f9b, f9c, f9c, f9c |
220R0455 |
from US $2.95 |
||
|
3
|
3
23026-028 LENS,TAIL LAMPLens,tail lamp; |
23026-028 |
from US $39.20 |
||
|
4
|
4
92069-074 BULB,60-32/3CPBulb,60-32/3cp; |
92069-074 |
US $3.11 |
||
|
5
|
5
23028019 GASKET,TAIL LAMP LENSGasket,tail lamp len; |
23028019 |
US $6.06 |
||
|
6
|
6
23027-1018 BODY COMP TAIL LAMP |
23027-1018 |
US $77.15 |
||
|
7
|
7
23036-036-21 BKT,LICENSE PIT,BLACKBkt,license pit,blac; |
23036-036-21 |
US $32.40 |
||
|
8
|
8
112G0620
BOLT-UPSET
Bolt-upset,6x20; |
112G0620 |
— | ||
| replacement | |||||
|
8
|
8
112BA0620 BOLT-UPSETBolt-upset,6x20; |
112BA0620 |
from US $0.95 |
||
|
9
|
9
92022-125
WASHER 6.5X20X1.6T
Washer 6.5x20x1.6t; |
92022-125 |
— | ||
| replacement | |||||
|
9
|
9
92200-0283 WASHER,6.5X20X1.6Washer 6.5x20x1.6t; |
92200-0283 |
from US $0.72 |
||
|
10
|
10
92027-129 COLLAR,6.8X10X8.5Collar,6.8x10x8.5; |
92027-129 |
from US $3.17 |
||
|
11
|
11
92075-076 DAMPER RUBBERDamper rubber; |
92075-076 |
from US $3.48 |
||
|
12
|
12
92071-019 GROMMET HARNESS 10MMGrommet harness 10mm; |
92071-019 |
from US $2.69 |
||
|
13
|
13
35039-005
DAMPER-TAIL LAMP SHCK
Damper-tail lamp shc; |
35039-005 |
— | ||
|
14
|
14
110N0632
BOLT-HEX HEAD,6X32
Bolt-hex head,6x32; F9c, f9c |
110N0632 |
— | ||
|
15
|
15
110G0650
BOLT,HEX HEAD,6X50
Bolt,hex head,6x50; |
110G0650 |
— | ||
|
16
|
16
92022-024 WASHER,7X16X1.2Washer plain; |
92022-024 |
from US $2.53 |
||
|
17
|
17
92022-125
WASHER 6.5X20X1.6T
Washer 6.5x20x1.6t; |
92022-125 |
— | ||
| replacement | |||||
|
17
|
17
92200-0283 WASHER,6.5X20X1.6Washer 6.5x20x1.6t; |
92200-0283 |
from US $0.72 |
||
|
18
|
18
312B0600 NUT-HEXNut 6mm; F9c, f9c |
312B0600 |
US $0.95 |
||
| replacement | |||||
|
18
|
18
312AA0600 NUT-HEXNut 6mm; F9c, f9c |
312AA0600 |
from US $0.94 |
||
|
19
|
19
35031-007 STAY, TAIL LAMPStay, tail lamp; |
35031-007 |
US $12.49 |
||
|
20
|
20
35016-006 DAMPER RUBBER,TAILDamper rubber,tail; |
35016-006 |
US $5.72 |
||
|
21
|
21
35024-002 CLIP WIRING HARNESS |
35024-002 |
US $2.21 |
||
