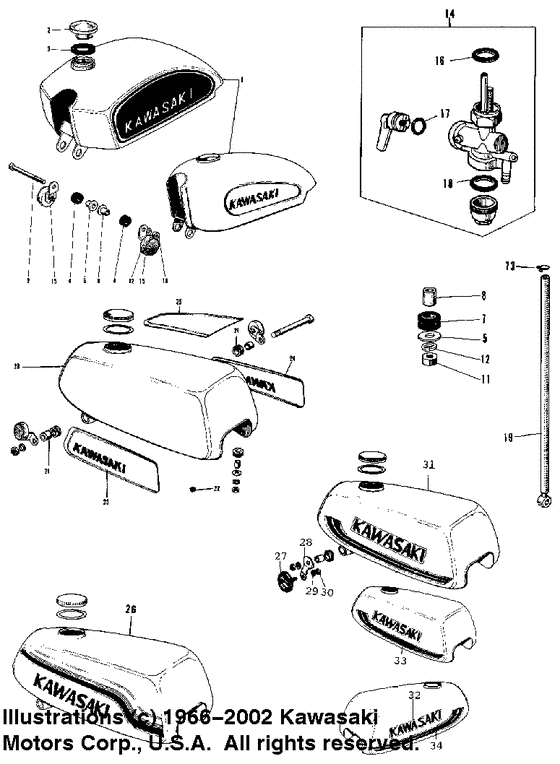

Fuel tank ('69-'73) Diagram Kawasaki Model "G" G3SS
- Year
- 1971
- Model code
- G3SS-A
- Sales region
- USA
- Engine Capacity
- 90
- Model
- G3SS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51001-060-34 TANK-FUEL,P.ORANGETank-fuel,p.orange; |
51001-060-34 |
US $198.45 |
||
|
2
|
2
51048-006 CAP,FUEL TANK LOCKINGCap,fuel tank locking; |
51048-006 |
from US $7.95 |
||
|
3
|
3
51059-003
GASKET FUEL TANK CAP
|
51059-003 |
— | ||
|
4
|
4
92075-013
DAMPER RUBB TANK FRNT
Damper rubb tank frnt; |
92075-013 |
— | ||
| replacement | |||||
|
4
|
4
92075-1057 DAMPERDamper rubb tank frnt; |
92075-1057 |
from US $3.33 |
||
|
5
|
5
92022-1564 WASHER,8X26X2.3Washer,8x26x2.3; |
92022-1564 |
from US $2.49 |
||
|
6
|
6
92027-1134 COLLAR,FUEL TANK FITTCollar,fuel tank fitt; |
92027-1134 |
from US $8.15 |
||
|
7
|
7
92075-030
DAMPER RUBB TANK REAR
|
92075-030 |
— | ||
|
8
|
8
92027-034 SPACER FUEL TANK REARSpacer fuel tank rear; |
92027-034 |
from US $3.11 |
||
|
9
|
9
115B0890
Bolt,8x90
Bolt, hex head, 8x90; |
115B0890 |
— | ||
|
10
|
10
311N0800
NUT,8M/M
Nut,8m/m; |
311N0800 |
— | ||
|
11
|
11
311B0800
Nut,8mm
Nut,8mm; |
311B0800 |
— | ||
| replacements | |||||
|
11
|
11
317AA0800 NUT-HEX-SMALLNut,8mm; |
317AA0800 |
from US $0.94 |
||
|
11
|
11
311AA0800 NUT-HEX-SMALLNut,8mm; |
311AA0800 |
US $0.40 |
||
|
12
|
12
461F0800
WASHER-SPRING,8MM
Washer spring 8mm; |
461F0800 |
— | ||
| replacement | |||||
|
12
|
12
461DA0800 WASHER-SPRING,8MMWasher spring 8mm; |
461DA0800 |
from US $0.48 |
||
|
13
|
13
92037-010 CLAMP FUEL PIPEClamp fuel pipe; |
92037-010 |
from US $2.69 |
||
|
14
|
14
51023-1123
TAP-ASSY,FUEL
Tap-assy,fuel; |
51023-1123 |
— | ||
|
15
|
15
28001-004
REFLECTOR REFLEX
|
28001-004 |
— | ||
|
16
|
16
51037-008
GASKET FUEL COCK CUP
|
51037-008 |
— | ||
|
17
|
17
92065-062
'O' RING FUEL COCK
|
92065-062 |
— | ||
|
18
|
18
11009-1567 GASKET,FUEL TAP JOINTGasket,fuel tap joint; |
11009-1567 |
from US $3.89 |
||
|
19
|
19
51044-031
PIPE-FUEL
G3-a |
51044-031 |
— | ||
|
20
|
20
51001-067-55 TANK-FUEL,ORANGETank-fuel,orange; G3tr-a, g3ss-a |
51001-067-55 |
US $224.66 |
||
|
21
|
21
92027-012 SPACER FUEL TANK MONTSpacer fuel tank mont; G3-a |
92027-012 |
from US $3.27 |
||
|
22
|
22
92071-038 GROMMET PIPEGrommet pipe; G3-a |
92071-038 |
from US $2.88 |
||
|
23
|
23
56013-028-61 EMBLEM-L.H,PURPLEEmblem-l.h,purple; G3tr-a, g3ss-a |
56013-028-61 |
US $30.15 |
||
|
24
|
24
56014-022-61 EMBLEM-R.H,PURPLEEmblem-r.h,purple; G3tr-a, g3ss-a |
56014-022-61 |
US $24.64 |
||
|
25
|
25
56027-031-61 EMBLEM-TOP,PURPLEEmblem-top,purple; G3tr-a, g3ss-a |
56027-031-61 |
US $13.30 |
||
|
26
|
26
51001-067-68 TANK-FUEL,C.REDTank-fuel,c.red; G3ss-b |
51001-067-68 |
US $224.66 |
||
|
27
|
27
28012-010 REFLECTOR-REFLEX,FRNTReflector-reflex,frnt; G3ssb/c |
28012-010 |
US $9.52 |
||
|
28
|
28
28013-003 BRACKET-REFLECTORG3ssb/c |
28013-003 |
US $8.62 |
||
|
29
|
29
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; G3ssb/c |
461F0600 |
— | ||
| replacement | |||||
|
29
|
29
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; G3ssb/c |
461DA0600 |
from US $0.55 |
||
|
30
|
30
311B0600
NUT-HEX,6MM
Nut 6mm; G3ssb/c |
311B0600 |
— | ||
| replacement | |||||
|
30
|
30
311AA0600 NUT-HEX,6MMNut 6mm; G3ssb/c |
311AA0600 |
from US $0.63 |
||
|
31
|
31
51001-067-91
TANK-FUEL,C.ORANGE
Tank-fuel,c.orange; G3ss-c |
51001-067-91 |
— | ||
|
32
|
32
51001-067-91
TANK-FUEL,C.ORANGE
Tank-fuel,c.orange; G3ss-c |
51001-067-91 |
— | ||
|
33
|
33
51001-067-91
TANK-FUEL,C.ORANGE
Tank-fuel,c.orange; G3ss-c |
51001-067-91 |
— | ||
|
34
|
34
51001-067-91
TANK-FUEL,C.ORANGE
Tank-fuel,c.orange; G3ss-c |
51001-067-91 |
— | ||
