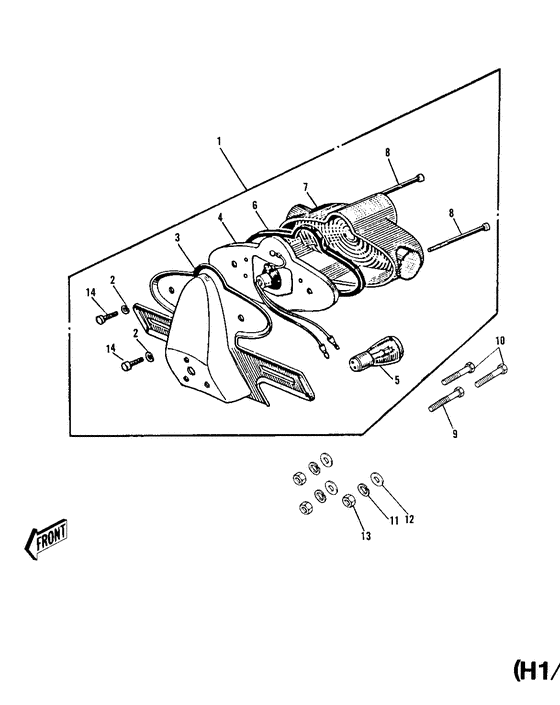

Taillight (H1/a) Diagram Kawasaki Model "H" H1 Mach III
- Year
- 1972
- Model code
- H1-C
- Sales region
- USA
- Engine Capacity
- 500
- Model
- H1 Mach III
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
23025-029-10
LAMP ASSY TAIL BLACK
|
23025-029-10 |
— | ||
| replacement | |||||
|
1
|
1
23024-020-21 LAMP ASSY-TAIL,BLACK |
23024-020-21 |
US $95.94 |
||
|
2
|
2
461F0500
WASHER-SPRING
Washer spring 5mm; |
461F0500 |
— | ||
| replacement | |||||
|
2
|
2
461DA0500 WASHER-SPRINGWasher spring 5mm; |
461DA0500 |
from US $0.48 |
||
|
3
|
3
23036-002
BKT LICENSE PLT
H1, h1-a |
23036-002 |
— | ||
|
4
|
4
23027-009
SOCKET TAIL LAMP N.L.A.
|
23027-009 |
— | ||
|
5
|
5
92069-059 BULB,12V 32/3CPBulb,12v 32/3cp; |
92069-059 |
from US $5.70 |
||
|
6
|
6
23028-008
GASKET TAIL LAMP
|
23028-008 |
— | ||
|
7
|
7
23026-010
LENS TAIL LAMP
|
23026-010 |
— | ||
|
8
|
8
220R0455 SCREW |
220R0455 |
from US $2.95 |
||
|
9
|
9
112G0640
BOLT-UPSET,6X40
Bolt-upset,6x40; |
112G0640 |
— | ||
|
10
|
10
112G0630
BOLT-UPSET
|
112G0630 |
— | ||
| replacement | |||||
|
10
|
10
112BA0630 BOLT-UPSET |
112BA0630 |
from US $0.86 |
||
|
11
|
11
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
11
|
11
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
12
|
12
411B0600 WASHER-PLAIN,6.5X13X1Washer plain 6mm; |
411B0600 |
US $1.90 |
||
| replacement | |||||
|
12
|
12
411AA0600 WASHER-PLAIN,(6.5x13x1)Washer plain 6mm; |
411AA0600 |
from US $2.13 |
||
|
13
|
13
311B0600
NUT-HEX,6MM
Nut 6mm; |
311B0600 |
— | ||
| replacement | |||||
|
13
|
13
311AA0600 NUT-HEX,6MMNut 6mm; |
311AA0600 |
from US $0.63 |
||
|
14
|
14
110N0512A BOLT HEX HEAD |
110N0512A |
US $15.50 |
||
