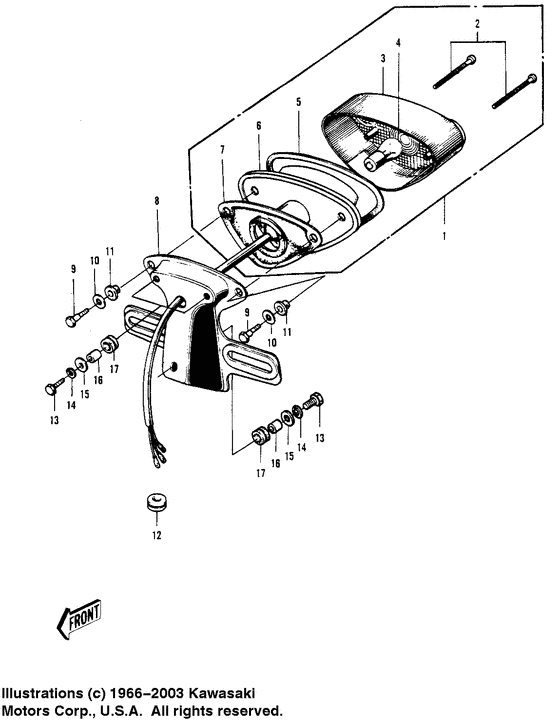

Taillight (H2/a) Diagram Kawasaki Model "H" H2 Mach IV
- Year
- 1974
- Model code
- H2-B
- Sales region
- USA
- Engine Capacity
- 750
- Model
- H2 Mach IV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
23025-044
LAMP ASSY-TAIL
|
23025-044 |
— | ||
|
2
|
2
220R0455 SCREW |
220R0455 |
from US $2.95 |
||
|
3
|
3
23026-022
LENS-TAIL LAMP
|
23026-022 |
— | ||
|
4
|
4
92069-059 BULB,12V 32/3CPBulb,12v 32/3cp; |
92069-059 |
from US $5.70 |
||
|
5
|
5
23028-016 GASKET-TAIL LAMP LENS |
23028-016 |
US $10.17 |
||
|
6
|
6
23027-029
CASE-TAIL LAMP
|
23027-029 |
— | ||
|
7
|
7
23028-015
GASKET-TAIL LAMP CASE
|
23028-015 |
— | ||
|
8
|
8
23036-012-21
BKT-LICENSE PLT,BLACK
Bkt-license plt,black; |
23036-012-21 |
— | ||
|
9
|
9
92001-105
BOLT
|
92001-105 |
— | ||
|
10
|
10
92022-1561 WASHER,8.5X20X1.6Washer,8.5x20x1.6; |
92022-1561 |
from US $2.69 |
||
|
11
|
11
92075-091
DAMPER RUBBER
|
92075-091 |
— | ||
|
12
|
12
92071-059
GROMMET
|
92071-059 |
— | ||
|
13
|
13
112G0620
BOLT-UPSET
Bolt-upset,6x20; |
112G0620 |
— | ||
| replacement | |||||
|
13
|
13
112BA0620 BOLT-UPSETBolt-upset,6x20; |
112BA0620 |
from US $0.95 |
||
|
14
|
14
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
14
|
14
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
15
|
15
92022-125
WASHER 6.5X20X1.6T
Washer 6.5x20x1.6t; |
92022-125 |
— | ||
| replacement | |||||
|
15
|
15
92200-0283 WASHER,6.5X20X1.6Washer 6.5x20x1.6t; |
92200-0283 |
from US $0.72 |
||
|
16
|
16
92027-120 COLLAR 6.8X10X10.5Collar 6.8x10x10.5; |
92027-120 |
from US $3.17 |
||
|
17
|
17
92075-112 DAMPER RUBBERDamper rubber; |
92075-112 |
from US $2.85 |
||
