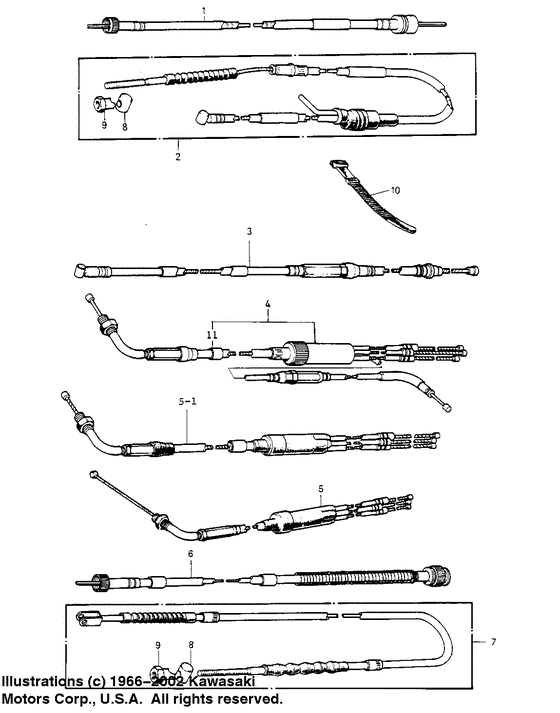

Cables Diagram Kawasaki Model "S" S2 Mach II
- Year
- 1972
- Model code
- S2
- Sales region
- USA
- Engine Capacity
- 350
- Model
- S2 Mach II
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54001-035
CABLE,SPEEDOMETER
Cable,speedometer; S2, s2-a |
54001-035 |
— | ||
|
2
|
2
54005-061
CABLE-FRONT BRAKE
S2 |
54005-061 |
— | ||
|
3
|
3
54011-053 CABLE,CLUTCHCable,clutch; |
54011-053 |
US $50.54 |
||
|
4
|
4
54012-083
CABLE-COMBINATION
S2, s2-a |
54012-083 |
— | ||
|
5
|
5
54017-051
CABLE-STARTER
S2 |
54017-051 |
— | ||
|
6
|
6
54018-016
CABLE-TACHOMETER
S2, s2-a |
54018-016 |
— | ||
|
7
|
7
54022-021
CABLE-REAR BRAKE
|
54022-021 |
— | ||
|
8
|
8
92043-053 PIN BRAKE ROD |
92043-053 |
from US $5.28 |
||
|
9
|
9
92015-041
NUT-BRAKE CABLE ADJST
|
92015-041 |
— | ||
| replacement | |||||
|
9
|
9
92015-042 NUT-BRAKE ROD ADJUST |
92015-042 |
from US $3.48 |
||
|
10
|
10
92072-035 BAND-RUBBERBand-rubber; S2 |
92072-035 |
from US $3.35 |
||
|
11
|
11
54012-084-SP CABLE,TROTTLE UPPERCable,trottle upper; S2-a |
54012-084-SP |
US $58.50 |
||
| replacement | |||||
|
11
|
11
54012-084
CABLE,CONTROL
Cable,trottle upper; S2-a |
54012-084 |
— | ||
