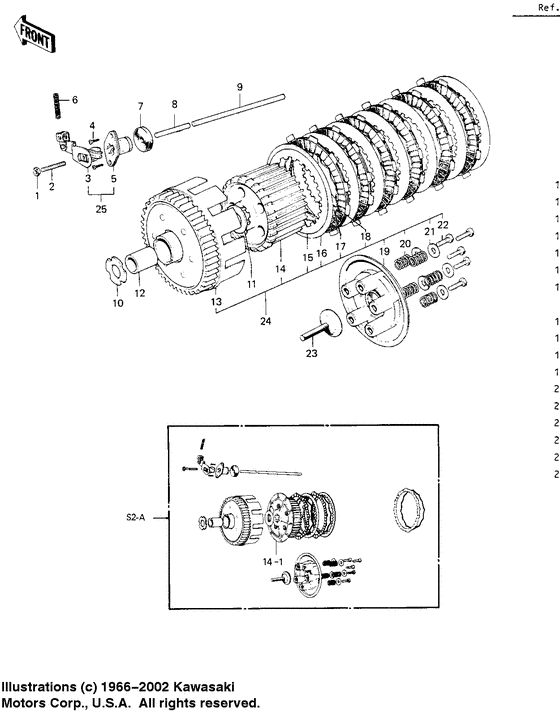

Clutch Diagram Kawasaki Model "S" S2 Mach II
- Year
- 1972
- Model code
- S2
- Sales region
- USA
- Engine Capacity
- 350
- Model
- S2 Mach II
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
311B0600
NUT-HEX,6MM
Nut 6mm; |
311B0600 |
— | ||
| replacement | |||||
|
1
|
1
311AA0600 NUT-HEX,6MMNut 6mm; |
311AA0600 |
from US $0.63 |
||
|
2
|
2
291Z0622
SCREW SLOTTED
|
291Z0622 |
— | ||
|
3
|
3
13102-017
INNER,CLUTCH RELEASE
Inner,clutch release; |
13102-017 |
— | ||
|
4
|
4
221B0616 SCREW-CSK-CROSScrew cntsnk hd 6x16; |
221B0616 |
from US $0.34 |
||
| replacement | |||||
|
4
|
4
221AA0616 SCREW-CSK-CROSScrew cntsnk hd 6x16; |
221AA0616 |
from US $0.92 |
||
|
5
|
5
13118-008
OUTER,CLUTCH RELEASE
Outer,clutch release; |
13118-008 |
— | ||
|
6
|
6
92081-096 SPRING-CLUTCH RELEASESpring-clutch release; |
92081-096 |
from US $3.11 |
||
|
7
|
7
92050-010 OIL SEAL F BRK PANELOil seal f brk panel; |
92050-010 |
from US $11.51 |
||
|
8
|
8
13116-010
ROD CLUTCH PUSH SHORT
|
13116-010 |
— | ||
|
9
|
9
13116-019 ROD-CLUTCH PUSH,LONGRod-clutch push,long; |
13116-019 |
US $11.05 |
||
|
10
|
10
92022-119
WASHER THRUST
|
92022-119 |
— | ||
|
11
|
11
92022-189 WASHER-PLAIN,20MMWasher-plain,20mm; |
92022-189 |
US $6.77 |
||
|
12
|
12
92028-045
BUSH CLUTCH
|
92028-045 |
— | ||
|
13
|
13
13095-032
HOUSING-CLUTCH
|
13095-032 |
— | ||
|
14
|
14
13087-033
HUB,CLUTCH
Hub,clutch; S2 |
13087-033 |
— | ||
|
15
|
15
13090-002 PLATE CLUTCH OUTERS2 |
13090-002 |
US $5.45 |
||
|
16
|
16
13089-003 PLATE CLUTCH STEEL |
13089-003 |
from US $8.40 |
||
|
17
|
17
13088-1015 PLATE-FRICTION |
13088-1015 |
from US $15.71 |
||
|
18
|
18
13229-002 RING-CLUTCH STEEL |
13229-002 |
US $9.76 |
||
|
19
|
19
13187-004 PLATE-CLUTCH SPRING |
13187-004 |
US $33.16 |
||
|
20
|
20
92081-095 SPRING-CLUTCH |
92081-095 |
US $11.83 |
||
|
21
|
21
92022-167
WASHER-PLAIN,5MM
Washer-plain,5mm; |
92022-167 |
— | ||
|
22
|
22
92003-078
BOLT,5X18
Bolt,5x18; |
92003-078 |
— | ||
|
23
|
23
13116-016
PUSHER-CLTCH SPRG PLT
|
13116-016 |
— | ||
|
24
|
24
13081-055 CLUTCH ASSY |
13081-055 |
US $379.96 |
||
|
25
|
25
13231-010
RELEASE ASSY,CLUTCH
Release assy,clutch; |
13231-010 |
— | ||
