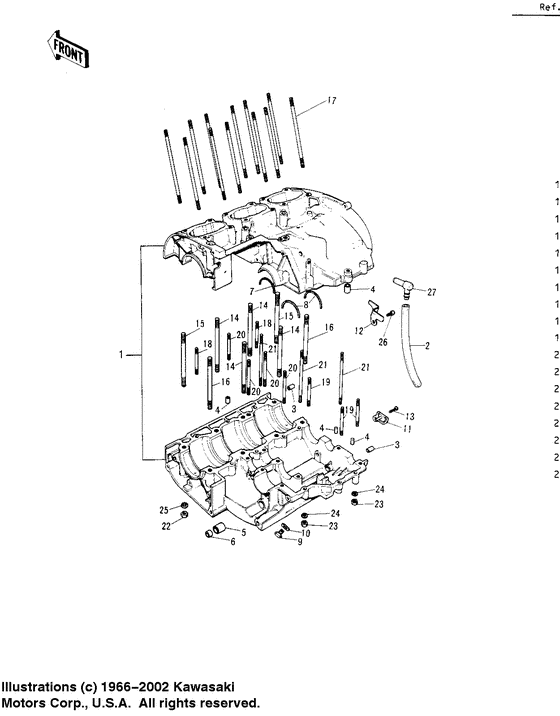

Crankcase Diagram Kawasaki Model "S" S2 Mach II
- Year
- 1972
- Model code
- S2
- Sales region
- USA
- Engine Capacity
- 350
- Model
- S2 Mach II
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14001-049 CRANKCASE SETIncludes ref. no's. 3-5 |
14001-049 |
US $779.26 |
||
|
2
|
2
92059-061
PIPE-BREATHER
|
92059-061 |
— | ||
|
3
|
3
92043-1037 PIN,DOWEL,10X8.2X14Pin,dowel,10x8.2x14; |
92043-1037 |
from US $0.97 |
||
|
4
|
4
92042-016
PIN DOWEL 6MM
Pin dowel 6mm; |
92042-016 |
— | ||
| replacement | |||||
|
4
|
4
92043-1690 PIN,6X16Pin dowel 6mm; |
92043-1690 |
from US $2.85 |
||
|
5
|
5
92028-071 BUSH CHANGE PEDAL SHT |
92028-071 |
US $73.46 |
||
|
6
|
6
92049-004 OIL SEAL SB12205Oil seal sb12205; |
92049-004 |
from US $5.28 |
||
|
7
|
7
14013013 RING-BEARING SETRing-bearing set; |
14013013 |
US $8.24 |
||
|
8
|
8
14013-004 RING BEARING SETTINGRing bearing setting; |
14013-004 |
from US $7.44 |
||
|
9
|
9
92067-001 PLUG, OIL DRAINPlug oil drain; |
92067-001 |
from US $3.73 |
||
|
10
|
10
92065-058 GASKETGasket check valve; |
92065-058 |
from US $3.37 |
||
|
11
|
11
14015-001
RECEIVER OIL
|
14015-001 |
— | ||
|
12
|
12
14015-003 RECEIVER-OIL |
14015-003 |
US $2.56 |
||
|
13
|
13
221B0616 SCREW-CSK-CROSScrew cntsnk hd 6x16; |
221B0616 |
from US $0.34 |
||
| replacement | |||||
|
13
|
13
221AA0616 SCREW-CSK-CROSScrew cntsnk hd 6x16; |
221AA0616 |
from US $0.92 |
||
|
14
|
14
172G1050 STUD 10X50 |
172G1050 |
US $2.52 |
||
|
15
|
15
172G1070 STUD,10X70Stud,10x70; |
172G1070 |
US $8.75 |
||
|
16
|
16
172G1080 STUD,10X80Stud,10x80; |
172G1080 |
US $8.10 |
||
|
17
|
17
172G08115 STUD,8X115Stud 8x115; |
172G08115 |
US $8.84 |
||
| replacement | |||||
|
17
|
17
172BA08115 STUD,8X115Stud 8x115; |
172BA08115 |
from US $2.79 |
||
|
18
|
18
172G0622
STUD,6X22
Stud 6x22; |
172G0622 |
— | ||
| replacement | |||||
|
18
|
18
172BA0622
STUD,6X22
Stud 6x22; |
172BA0622 |
— | ||
|
19
|
19
172G0635
STUD 6X35
|
172G0635 |
— | ||
|
20
|
20
172G0645 BOLT-STUD,6X45Stud,6x45; |
172G0645 |
from US $1.21 |
||
|
21
|
21
172G0665 STUD,6X65Stud,6x65; |
172G0665 |
US $1.17 |
||
|
22
|
22
317B1000 NUT-HEX-SMALLNut,10mm; |
317B1000 |
US $0.34 |
||
| replacement | |||||
|
22
|
22
317AA1000 NUT-HEX-SMALLNut,10mm; |
317AA1000 |
from US $0.92 |
||
|
23
|
23
311B0600
NUT-HEX,6MM
Nut 6mm; |
311B0600 |
— | ||
| replacement | |||||
|
23
|
23
311AA0600 NUT-HEX,6MMNut 6mm; |
311AA0600 |
from US $0.63 |
||
|
24
|
24
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
24
|
24
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
25
|
25
461F1000 WASHER SPRING 10MMWasher spring 10mm; |
461F1000 |
US $0.95 |
||
| replacement | |||||
|
25
|
25
461DA1000 WASHER-SPRINGWasher spring 10mm; |
461DA1000 |
from US $0.90 |
||
|
26
|
26
220B0610 SCREW-PAN HEAD,6X10Screw pan head 6x10; |
220B0610 |
US $1.27 |
||
| replacement | |||||
|
26
|
26
220AA0610 SCREW-PAN HEAD,6X10Screw pan head 6x10; |
220AA0610 |
from US $0.95 |
||
|
27
|
27
14069003 BREATHER |
14069003 |
from US $7.92 |
||
