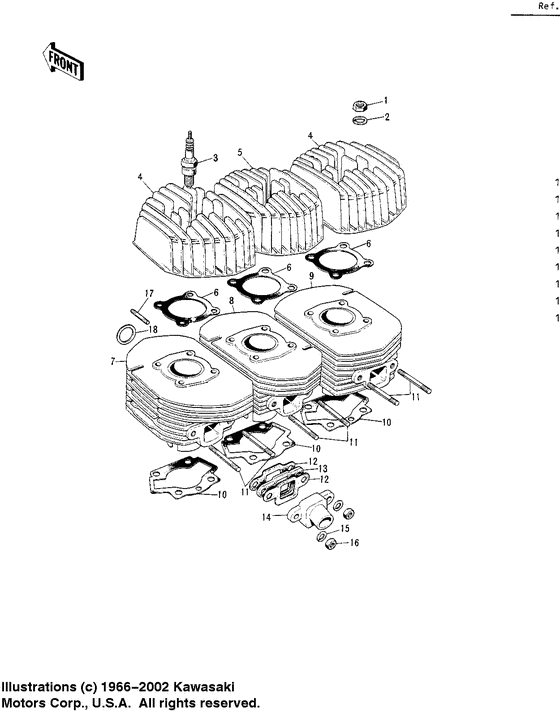

Cylinder heads/cylinders Diagram Kawasaki Model "S" S2 Mach II
- Year
- 1972
- Model code
- S2
- Sales region
- USA
- Engine Capacity
- 350
- Model
- S2 Mach II
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
311B0800
Nut,8mm
Nut,8mm; |
311B0800 |
— | ||
| replacements | |||||
|
1
|
1
317AA0800 NUT-HEX-SMALLNut,8mm; |
317AA0800 |
from US $0.94 |
||
|
1
|
1
311AA0800 NUT-HEX-SMALLNut,8mm; |
311AA0800 |
US $0.40 |
||
|
2
|
2
461F0800
WASHER-SPRING,8MM
Washer spring 8mm; |
461F0800 |
— | ||
| replacement | |||||
|
2
|
2
461DA0800 WASHER-SPRING,8MMWasher spring 8mm; |
461DA0800 |
from US $0.48 |
||
|
3
|
3
92070-011A
Superceded
|
92070-011A |
— | ||
| replacement | |||||
|
3
|
3
B9HS
KA SPARK PLUG B9HS
|
B9HS |
— | ||
|
4
|
4
11001-053-80
CYLINDER HEAD,BUFF
Cylinder head,buff; |
11001-053-80 |
— | ||
|
5
|
5
11001-054 CYLINDER HEAD,CENTERCylinder head,center; |
11001-054 |
US $237.47 |
||
|
6
|
6
11004-043 GASKET-CYLINDER HEAD |
11004-043 |
US $23.29 |
||
|
7
|
7
11005-068
CYLINDER,L.H
Cylinder,l.h; |
11005-068 |
— | ||
|
8
|
8
11005-069
CYLINDER-CENTER
|
11005-069 |
— | ||
|
9
|
9
11005-070
CYLINDER,R.H
Cylinder,r.h; |
11005-070 |
— | ||
|
10
|
10
11009-027 GASKET,CYLINDER BASE |
11009-027 |
US $6.93 |
||
| replacement | |||||
|
10
|
10
11060-1380 GASKET,CYLINDER BASE |
11060-1380 |
from US $5.60 |
||
|
11
|
11
172G0820
STUD,8X20
Stud 8x20; |
172G0820 |
— | ||
| replacement | |||||
|
11
|
11
172BA0820 STUD,8X20Stud 8x20; |
172BA0820 |
from US $1.40 |
||
|
12
|
12
16062-014
GASKET, AIR INTAKE
|
16062-014 |
— | ||
| replacement | |||||
|
12
|
12
11060-1483 GASKET, AIR INTAKE |
11060-1483 |
from US $4.82 |
||
|
13
|
13
16061-012
INSULATOR-HEAT
|
16061-012 |
— | ||
|
14
|
14
16060-012
INLET-AIR
|
16060-012 |
— | ||
|
15
|
15
461F0800
WASHER-SPRING,8MM
Washer spring 8mm; |
461F0800 |
— | ||
| replacement | |||||
|
15
|
15
461DA0800 WASHER-SPRING,8MMWasher spring 8mm; |
461DA0800 |
from US $0.48 |
||
|
16
|
16
311B0800
Nut,8mm
Nut,8mm; |
311B0800 |
— | ||
| replacements | |||||
|
16
|
16
317AA0800 NUT-HEX-SMALLNut,8mm; |
317AA0800 |
from US $0.94 |
||
|
16
|
16
311AA0800 NUT-HEX-SMALLNut,8mm; |
311AA0800 |
US $0.40 |
||
|
17
|
17
92004-1009 STUD,8X35Stud,8x35; |
92004-1009 |
from US $3.96 |
||
|
18
|
18
11009-1992 GASKET,EXHAUST PIPEGasket,exhaust pipe; |
11009-1992 |
from US $6.34 |
||
