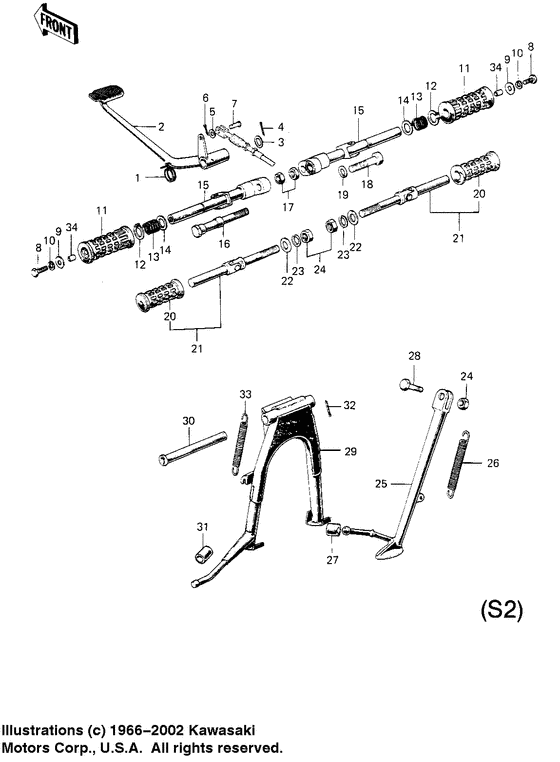

Footrests/stands/brake pedal (S2) Diagram Kawasaki Model "S" S2 Mach II
- Year
- 1972
- Model code
- S2
- Sales region
- USA
- Engine Capacity
- 350
- Model
- S2 Mach II
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43005-033
SPRING,BRAKE PEDAL
Spring,brake pedal; |
43005-033 |
— | ||
|
2
|
2
43001-038
PEDAL-BRAKE
|
43001-038 |
— | ||
| replacement | |||||
|
2
|
2
43001-060
PEDAL,BRAKE
|
43001-060 |
— | ||
|
3
|
3
92022-085 WASHER BRAKE PEDALWasher brake pedal; |
92022-085 |
from US $3 |
||
|
4
|
4
550D3020 PIN-COTTER,3.0X20Pin cotter 3.0x20; |
550D3020 |
US $1.11 |
||
| replacement | |||||
|
4
|
4
550AA3020 PIN-COTTER,3.0X20Pin cotter 3.0x20; |
550AA3020 |
from US $1.11 |
||
|
5
|
5
410B0600
WASHER-PLAIN-SMALL
Washer plain 6mm; |
410B0600 |
— | ||
| replacement | |||||
|
5
|
5
410AA0600 WASHER-PLAIN-SMALLWasher plain 6mm; |
410AA0600 |
from US $0.79 |
||
|
6
|
6
550D2015
PIN-COTTER,2.0X15
Pin cotter 2.0x15; |
550D2015 |
— | ||
| replacement | |||||
|
6
|
6
550AA2015 PIN-COTTER,2.0X15Pin cotter 2.0x15; |
550AA2015 |
from US $0.63 |
||
|
7
|
7
92043-034
PIN R BRK CABLE JOINT
|
92043-034 |
— | ||
|
8
|
8
112G0618
BOLT-UPSET
|
112G0618 |
— | ||
| replacement | |||||
|
8
|
8
112BA0618 BOLT-UPSET |
112BA0618 |
from US $0.95 |
||
|
9
|
9
92022-125
WASHER 6.5X20X1.6T
Washer 6.5x20x1.6t; |
92022-125 |
— | ||
| replacement | |||||
|
9
|
9
92200-0283 WASHER,6.5X20X1.6Washer 6.5x20x1.6t; |
92200-0283 |
from US $0.72 |
||
|
10
|
10
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
10
|
10
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
11
|
11
92076-019
RUBBER-FOOTREST
|
92076-019 |
— | ||
|
12
|
12
480J1600 CIRCLIP 16MMCirclip 16mm; |
480J1600 |
from US $1.43 |
||
|
13
|
13
34006-002
SPRING FOOTREST PEG
|
34006-002 |
— | ||
|
14
|
14
92022-049
WASHER FOLDING PEG
|
92022-049 |
— | ||
|
15
|
15
34003-028
BAR-FOOTREST
|
34003-028 |
— | ||
|
16
|
16
92003-076
BOLT-L.H FOOTREST FIT
|
92003-076 |
— | ||
|
17
|
17
315B1200
NUT-HEX-FINE
Nut-hex-fine,12mm; |
315B1200 |
— | ||
| replacement | |||||
|
17
|
17
315AA1200 NUT-HEX-FINENut-hex-fine,12mm; |
315AA1200 |
from US $1.09 |
||
|
18
|
18
92001-1068
BOLT,R.H.FOOTREST FIT
Bolt,r.h.footrest fit; |
92001-1068 |
— | ||
|
19
|
19
461F1200 WASHER-SPRING,12MMWasher spring 12mm; |
461F1200 |
US $1.30 |
||
| replacement | |||||
|
19
|
19
461DA1200 WASHER-SPRING,12MMWasher spring 12mm; |
461DA1200 |
from US $0.86 |
||
|
20
|
20
92076-008
RUBBER REAR FOOTREST
|
92076-008 |
— | ||
|
21
|
21
34030-001
BAR SET-REAR FOOTREST
|
34030-001 |
— | ||
|
22
|
22
410B1000
W-PLAIN-S
Washer plain 10mm; |
410B1000 |
— | ||
| replacement | |||||
|
22
|
22
410AA1000 W-PLAIN-SWasher plain 10mm; |
410AA1000 |
from US $0.81 |
||
|
23
|
23
461F1000 WASHER SPRING 10MMWasher spring 10mm; |
461F1000 |
US $0.95 |
||
| replacement | |||||
|
23
|
23
461DA1000 WASHER-SPRINGWasher spring 10mm; |
461DA1000 |
from US $0.90 |
||
|
24
|
24
314B1000
NUT-HEX-FINE
Nut,10mm; |
314B1000 |
— | ||
| replacement | |||||
|
24
|
24
314AA1000 NUT-HEX-FINENut,10mm; |
314AA1000 |
from US $1.01 |
||
|
25
|
25
34024-051
STAND-SIDE
|
34024-051 |
— | ||
|
26
|
26
34023-005 SPRING MAIN STAND |
34023-005 |
from US $8.31 |
||
|
27
|
27
92075-031 DAMPER,SIDE STAND |
92075-031 |
US $10.13 |
||
| replacement | |||||
|
27
|
27
92160-1655 DAMPER,SIDE STAND |
92160-1655 |
from US $6.18 |
||
|
29
|
29
34011-028
STAND-MAIN
|
34011-028 |
— | ||
|
30
|
30
34019-011
SHAFT MAIN STAND
|
34019-011 |
— | ||
|
31
|
31
92075-115
DAMPER RUBB-MAIN STND
|
92075-115 |
— | ||
|
32
|
32
550D3025 PIN-COTTER,3.0X25Cotter pin,3.0x25; |
550D3025 |
from US $0.27 |
||
| replacement | |||||
|
32
|
32
550AA3025 PIN-COTTER,3.0X25Cotter pin,3.0x25; |
550AA3025 |
from US $0.95 |
||
|
33
|
33
34023-010
SPRING-MAIN STAND
|
34023-010 |
— | ||
|
34
|
34
92027-103 COLLAR |
92027-103 |
from US $2.38 |
||
