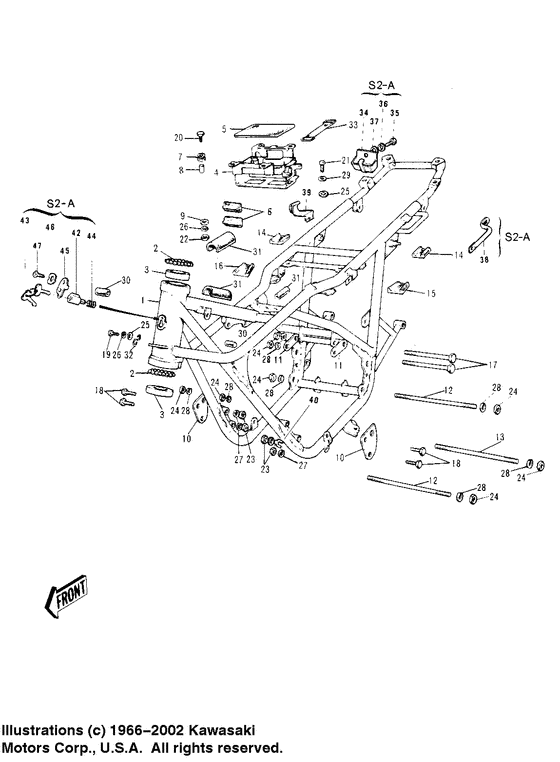

Frame/frame fittings Diagram Kawasaki Model "S" S2 Mach II
- Year
- 1972
- Model code
- S2
- Sales region
- USA
- Engine Capacity
- 350
- Model
- S2 Mach II
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32002-046 FRAMES2, s2-a |
32002-046 |
US $765.59 |
||
|
2
|
2
600A0800 BALL,6.35MMBall steel 1/4'; |
600A0800 |
from US $0.91 |
||
|
3
|
3
92048-006
RACE STRNG STEM BERNG
Race strng stem berng; |
92048-006 |
— | ||
| replacement | |||||
|
3
|
3
92048-0036 Race,steering Stem BeRace strng stem berng; |
92048-0036 |
from US $9.35 |
||
|
4
|
4
32099-008 CASE-BATTERY |
32099-008 |
US $44.77 |
||
|
5
|
5
32103-006
MAT BATTERY
|
32103-006 |
— | ||
|
6
|
6
32103-003
SEAT RECTIFIER RUBBER
|
32103-003 |
— | ||
|
7
|
7
92075-076 DAMPER RUBBERDamper rubber; |
92075-076 |
from US $3.48 |
||
|
8
|
8
92027-129 COLLAR,6.8X10X8.5Collar,6.8x10x8.5; |
92027-129 |
from US $3.17 |
||
|
9
|
9
92022-125
WASHER 6.5X20X1.6T
Washer 6.5x20x1.6t; |
92022-125 |
— | ||
| replacement | |||||
|
9
|
9
92200-0283 WASHER,6.5X20X1.6Washer 6.5x20x1.6t; |
92200-0283 |
from US $0.72 |
||
|
10
|
10
32030-022 PLATE-ENGINE MOUNT |
32030-022 |
US $4.97 |
||
|
11
|
11
32030-023
PLATE-ENGINE MOUNT
|
32030-023 |
— | ||
|
12
|
12
92003-182
BOLT,10X237
Bolt,10x237; |
92003-182 |
— | ||
|
13
|
13
92003-181
BOLT,10X225
Bolt,10x225; |
92003-181 |
— | ||
|
14
|
14
31082-007
RUBBER PAD
|
31082-007 |
— | ||
|
15
|
15
31082-008
RUBBER PAD
|
31082-008 |
— | ||
|
16
|
16
31082-009
RUBBER PAD
|
31082-009 |
— | ||
|
17
|
17
92001-1602 BOLT, FLANGED, 10X110Bolt, flanged, 10x110; |
92001-1602 |
from US $6.49 |
||
|
18
|
18
92001-1182
BOLT,10X45
Bolt,10x45; |
92001-1182 |
— | ||
|
19
|
19
112G0612
BOLT-UPSET,6X12
Bolt-upset,6x12; |
112G0612 |
— | ||
| replacement | |||||
|
19
|
19
112BA0612 BOLT-UP SETBolt-upset,6x12; |
112BA0612 |
from US $1.25 |
||
|
20
|
20
112B0622
BOLT-UPSET
Bolt 6x22; |
112B0622 |
— | ||
| replacement | |||||
|
20
|
20
112BA0622 BOLT-UPSETBolt 6x22; |
112BA0622 |
from US $1.61 |
||
|
21
|
21
220B0614
SCREW-PAN-CROS,6X14
Screw pan head 6x14; |
220B0614 |
— | ||
| replacement | |||||
|
21
|
21
220AA0614 SCREW-PAN-CROS,6X14Screw pan head 6x14; |
220AA0614 |
from US $0.95 |
||
|
22
|
22
311B0600
NUT-HEX,6MM
Nut 6mm; |
311B0600 |
— | ||
| replacement | |||||
|
22
|
22
311AA0600 NUT-HEX,6MMNut 6mm; |
311AA0600 |
from US $0.63 |
||
|
23
|
23
311B0800
Nut,8mm
Nut,8mm; |
311B0800 |
— | ||
| replacements | |||||
|
23
|
23
317AA0800 NUT-HEX-SMALLNut,8mm; |
317AA0800 |
from US $0.94 |
||
|
23
|
23
311AA0800 NUT-HEX-SMALLNut,8mm; |
311AA0800 |
US $0.40 |
||
|
24
|
24
314B1000
NUT-HEX-FINE
Nut,10mm; |
314B1000 |
— | ||
| replacement | |||||
|
24
|
24
314AA1000 NUT-HEX-FINENut,10mm; |
314AA1000 |
from US $1.01 |
||
|
25
|
25
410B0600
WASHER-PLAIN-SMALL
Washer plain 6mm; |
410B0600 |
— | ||
| replacement | |||||
|
25
|
25
410AA0600 WASHER-PLAIN-SMALLWasher plain 6mm; |
410AA0600 |
from US $0.79 |
||
|
26
|
26
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
26
|
26
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
27
|
27
461F0800
WASHER-SPRING,8MM
Washer spring 8mm; |
461F0800 |
— | ||
| replacement | |||||
|
27
|
27
461DA0800 WASHER-SPRING,8MMWasher spring 8mm; |
461DA0800 |
from US $0.48 |
||
|
28
|
28
461F1000 WASHER SPRING 10MMWasher spring 10mm; |
461F1000 |
US $0.95 |
||
| replacement | |||||
|
28
|
28
461DA1000 WASHER-SPRINGWasher spring 10mm; |
461DA1000 |
from US $0.90 |
||
|
29
|
29
464H0600
WASHER LOCK 6MM
|
464H0600 |
— | ||
|
30
|
30
92075-044 DAMPER RUBBERDamper rubber; |
92075-044 |
from US $2.79 |
||
|
31
|
31
51067-002
MAT FUEL TANK
|
51067-002 |
— | ||
|
32
|
32
92037-108
CLAMP
|
92037-108 |
— | ||
|
33
|
33
92072-012 BAND TOOLBand tool; |
92072-012 |
from US $4.80 |
||
|
34
|
34
32132-001 COVER-SPARK PLUGS2-a |
32132-001 |
US $2.02 |
||
|
35
|
35
112B0614
BOLT-UPSET
Bolt-upset 6x14; S2-a |
112B0614 |
— | ||
| replacements | |||||
|
35
|
35
112AA0614 BOLT-UPSETBolt-upset 6x14; S2-a |
112AA0614 |
from US $0.82 |
||
|
35
|
35
112BA0614 BOLT-UPSETBolt-upset 6x14; S2-a |
112BA0614 |
from US $1.43 |
||
|
36
|
36
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; S2-a |
461F0600 |
— | ||
| replacement | |||||
|
36
|
36
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; S2-a |
461DA0600 |
from US $0.55 |
||
|
37
|
37
92022-024 WASHER,7X16X1.2Washer plain; S2-a |
92022-024 |
from US $2.53 |
||
|
38
|
38
32109-013
FRAME GRIP
S2-a |
32109-013 |
— | ||
|
39
|
39
32122-006
BRACKET-HELMET HOLDER
S2-a |
32122-006 |
— | ||
|
42
|
42
27016-030
LOCK ASSY-STEERING
S2-a |
27016-030 |
— | ||
|
44
|
44
27032001 SPRING-STEERING LOCKSpring-steering lock; S2-a |
27032001 |
from US $3.37 |
||
|
45
|
45
11012-1134 CAP,STEERING LOCKCap,steering lock; S2-a, s2-a |
11012-1134 |
from US $5.07 |
||
|
46
|
46
92097-003 WASHERS2-a |
92097-003 |
from US $3.17 |
||
|
47
|
47
92008-007 SCREW-TAPPINGScrew-tapping; S2-a |
92008-007 |
from US $3.73 |
||
