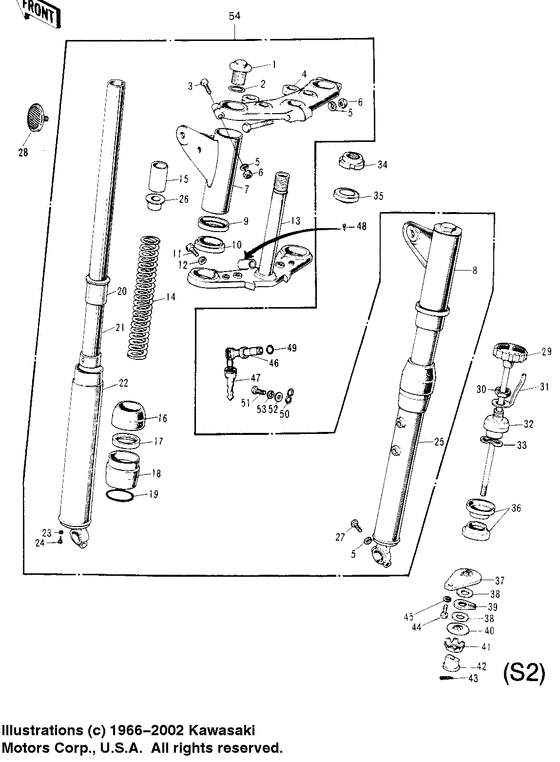

Front fork (S2) Diagram Kawasaki Model "S" S2 Mach II
- Year
- 1972
- Model code
- S2
- Sales region
- USA
- Engine Capacity
- 350
- Model
- S2 Mach II
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44041-037 BOLT-FORK FITTING |
44041-037 |
US $44.50 |
||
|
2
|
2
44046-015
'O' RING FORK TOP
|
44046-015 |
— | ||
|
3
|
3
92001-1398 BOLT FLANGED 8X55 |
92001-1398 |
US $3.55 |
||
|
4
|
4
44039-037
HEAD-STEERING STEM
|
44039-037 |
— | ||
|
5
|
5
461F0800
WASHER-SPRING,8MM
Washer spring 8mm; |
461F0800 |
— | ||
| replacement | |||||
|
5
|
5
461DA0800 WASHER-SPRING,8MMWasher spring 8mm; |
461DA0800 |
from US $0.48 |
||
|
6
|
6
311B0800
Nut,8mm
Nut,8mm; |
311B0800 |
— | ||
| replacements | |||||
|
6
|
6
317AA0800 NUT-HEX-SMALLNut,8mm; |
317AA0800 |
from US $0.94 |
||
|
6
|
6
311AA0800 NUT-HEX-SMALLNut,8mm; |
311AA0800 |
US $0.40 |
||
|
7
|
7
44033-038-21 COVER-L.H FORK,BLACKCover-l.h fork,black; |
44033-038-21 |
US $65.30 |
||
|
8
|
8
44034-037-21 COVER-R.H FORK,BLACKCover-r.h fork,black; |
44034-037-21 |
US $97.47 |
||
|
9
|
9
44043-034
WASHER FORK COVER
|
44043-034 |
— | ||
|
10
|
10
44045-029
GASKET FORK COVER
|
44045-029 |
— | ||
|
11
|
11
92001-1252
BOLT,HEX HEAD 10X35
Bolt,hex head 10x35; |
92001-1252 |
— | ||
|
12
|
12
461F1000 WASHER SPRING 10MMWasher spring 10mm; |
461F1000 |
US $0.95 |
||
| replacement | |||||
|
12
|
12
461DA1000 WASHER-SPRINGWasher spring 10mm; |
461DA1000 |
from US $0.90 |
||
|
13
|
13
44037-037 STEM-STEERING |
44037-037 |
US $154.76 |
||
|
14
|
14
44026-038 SPRING-FORK |
44026-038 |
US $39.87 |
||
|
15
|
15
44028-022
SPACER-FORK SPRG GIDE
|
44028-022 |
— | ||
|
16
|
16
44010-017
DUST SHIELD
|
44010-017 |
— | ||
|
17
|
17
44009-020
OIL SEAL
Oil seal,fork; |
44009-020 |
— | ||
| replacement | |||||
|
17
|
17
44009-026 OIL SEALOil seal,fork; |
44009-026 |
from US $26.76 |
||
|
18
|
18
44007-015 NUT FORK OUTER TUBE |
44007-015 |
US $60.25 |
||
|
19
|
19
44046-016
'O' RING OUTER TUBE
|
44046-016 |
— | ||
|
20
|
20
44015-011 GUIDE FORK INNER TUBE |
44015-011 |
US $23.08 |
||
|
21
|
21
44013-031
TUBE-FORK INNER
|
44013-031 |
— | ||
|
22
|
22
44005-039
TUBE,LH,FORK OUTER
Tube,lh,fork outer; |
44005-039 |
— | ||
|
23
|
23
44045002 GASKET FORK DRAIN PLGGasket fork drain plg; |
44045002 |
from US $3.96 |
||
|
24
|
24
220B0408
SCREW-PAN-CROS
Screw pan head 4x8; |
220B0408 |
— | ||
| replacement | |||||
|
24
|
24
220AA0408 SCREW-PAN-CROSScrew pan head 4x8; |
220AA0408 |
from US $0.79 |
||
|
25
|
25
44006-037
TUBE,RH,FORK OUTER
Tube,rh,fork outer; |
44006-037 |
— | ||
|
26
|
26
44029-019
GUIDE-FORK SPRING
|
44029-019 |
— | ||
|
27
|
27
44041-017 BOLT FRNT AXLE PINCH |
44041-017 |
US $3.24 |
||
|
28
|
28
28001-008
REFLECTOR-REFLEX,FRNT
Reflector-reflex,frnt; |
28001-008 |
— | ||
|
29
|
29
46101-004
KNOB STEERING DAMPER
|
46101-004 |
— | ||
|
30
|
30
315N1200A NUT 12MM |
315N1200A |
US $4.81 |
||
|
31
|
31
46126-001
SPRING STRG DAMP KNOB
|
46126-001 |
— | ||
|
32
|
32
92090-020 BOLT-STEERING STEM |
92090-020 |
US $56.65 |
||
|
33
|
33
46100-002 WASHER-WAVE |
46100-002 |
US $10.10 |
||
|
34
|
34
92090-007 NUT, STEERING STEM LOCKNut steering stem lck; |
92090-007 |
from US $7.13 |
||
|
35
|
35
46098-016 CAP, STEERING STEMCap, steering stem; |
46098-016 |
from US $4.75 |
||
|
36
|
36
92047-006 CONE STRNG STEM BERNGCone strng stem berng; |
92047-006 |
from US $9.98 |
||
|
37
|
37
46106-005
PLATE STRG DAMP STEEL
|
46106-005 |
— | ||
|
38
|
38
46104-005
PLATE STRG DAMP FRCTN
|
46104-005 |
— | ||
|
39
|
39
46105-005
PLATE STRG DAMP ANCHR
|
46105-005 |
— | ||
|
40
|
40
46106-006 PLATE STRG DAMP STEEL |
46106-006 |
US $4.81 |
||
|
41
|
41
46124-006
SPRING-STEERING DAMP
|
46124-006 |
— | ||
|
42
|
42
46125-005
NUT STRG DAMPER GUIDE
|
46125-005 |
— | ||
|
43
|
43
550D1615
PIN COTTER 1.6X15
Pin cotter 1.6x15; |
550D1615 |
— | ||
| replacement | |||||
|
43
|
43
550AA1615 PIN-COTTER,1.6X15Pin cotter 1.6x15; |
550AA1615 |
from US $0.72 |
||
|
44
|
44
114G0812 BOLT-SMALL-UPSET,8X12 |
114G0812 |
US $24.30 |
||
| replacement | |||||
|
44
|
44
115G0812 BOLT-SMALL-UPSET,8X12 |
115G0812 |
US $2.43 |
||
|
45
|
45
461F0800
WASHER-SPRING,8MM
Washer spring 8mm; |
461F0800 |
— | ||
| replacement | |||||
|
45
|
45
461DA0800 WASHER-SPRING,8MMWasher spring 8mm; |
461DA0800 |
from US $0.48 |
||
|
46
|
46
27016-024
LOCK ASSY-STEERING
|
27016-024 |
— | ||
|
48
|
48
92099-001 SCREW RIVETScrew rivet; |
92099-001 |
from US $2.53 |
||
|
49
|
49
92033-024 CIRCLIP-STEERING LOCK |
92033-024 |
US $8.10 |
||
|
50
|
50
92037-046
CLAMP-CABLE
Clamp-cable; |
92037-046 |
— | ||
|
51
|
51
112G0612
BOLT-UPSET,6X12
Bolt-upset,6x12; |
112G0612 |
— | ||
| replacement | |||||
|
51
|
51
112BA0612 BOLT-UP SETBolt-upset,6x12; |
112BA0612 |
from US $1.25 |
||
|
52
|
52
410B0600
WASHER-PLAIN-SMALL
Washer plain 6mm; |
410B0600 |
— | ||
| replacement | |||||
|
52
|
52
410AA0600 WASHER-PLAIN-SMALLWasher plain 6mm; |
410AA0600 |
from US $0.79 |
||
|
53
|
53
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
53
|
53
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
54
|
54
44001-078-21 FRONT FORK ASSY,BLACKFront fork assy,black; |
44001-078-21 |
US $1,078.51 |
||
