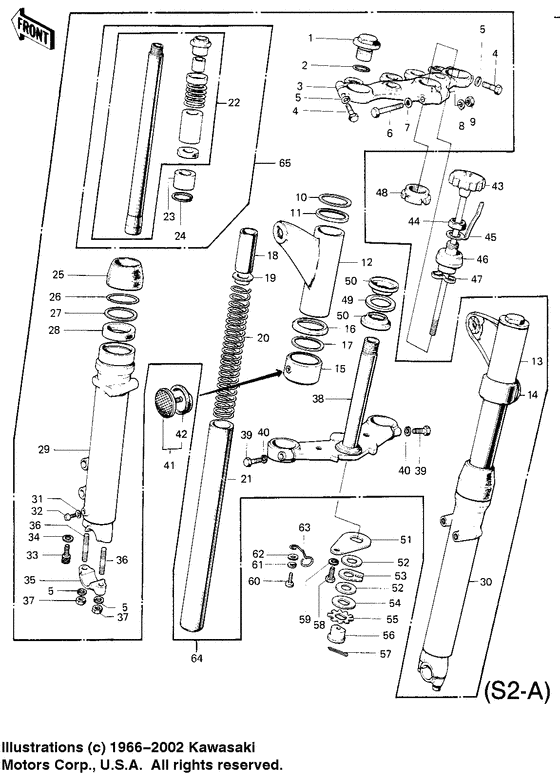

Front fork (S2-a) Diagram Kawasaki Model "S" S2 Mach II
- Year
- 1972
- Model code
- S2
- Sales region
- USA
- Engine Capacity
- 350
- Model
- S2 Mach II
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44041-037 BOLT-FORK FITTING |
44041-037 |
US $44.50 |
||
|
2
|
2
92055-1012 O RING,FORK TOP"o" ring,fork top; |
92055-1012 |
from US $3.89 |
||
|
3
|
3
44039-051 HEAD-STEERING STEM |
44039-051 |
US $161.66 |
||
|
4
|
4
44041-044
BOLT-STEERING STEM HD
|
44041-044 |
— | ||
|
5
|
5
461F0800
WASHER-SPRING,8MM
Washer spring 8mm; |
461F0800 |
— | ||
| replacement | |||||
|
5
|
5
461DA0800 WASHER-SPRING,8MMWasher spring 8mm; |
461DA0800 |
from US $0.48 |
||
|
6
|
6
44041-042
BOLT-STEERING STEM HD
|
44041-042 |
— | ||
|
7
|
7
463H0800 WASHER-LOCK,8MM |
463H0800 |
US $1.37 |
||
| replacement | |||||
|
7
|
7
463EA0800 WASHER-LOCK,8MM |
463EA0800 |
from US $0.78 |
||
|
8
|
8
410B0800 WASHER-PLAIN-SMALL,8MWasher plain 8mm; |
410B0800 |
US $0.79 |
||
| replacement | |||||
|
8
|
8
410AA0800 WASHER-PLAIN-SMALL,8MWasher plain 8mm; |
410AA0800 |
from US $0.63 |
||
|
9
|
9
92015-1124 NUT,LOCK,8MMNut,lock,8mm; |
92015-1124 |
from US $3.17 |
||
|
10
|
10
44045-039 GASKET,FORK COVERGasket,fork cover; |
44045-039 |
US $4.52 |
||
|
11
|
11
44043-047
WASHER,FORK COVER
Washer,fork cover; |
44043-047 |
— | ||
|
12
|
12
44033-053-21 COVER-L.H FORK,BLACKCover-l.h fork,black; |
44033-053-21 |
US $83.95 |
||
|
13
|
13
44034-053-21
COVER-R.H FORK,BLACK
Cover-r.h fork,black; |
44034-053-21 |
— | ||
|
14
|
14
44064-009 GUIDE-FORK COVER,R.HGuide-fork cover,r.h; |
44064-009 |
US $17.64 |
||
|
15
|
15
44064-010
GUIDE-FORK COVER,L.H
Guide-fork cover,l.h; |
44064-010 |
— | ||
|
16
|
16
44032-005
CAP,FORK COVER
Cap,fork cover; |
44032-005 |
— | ||
|
17
|
17
44045-029
GASKET FORK COVER
|
44045-029 |
— | ||
|
18
|
18
44028-026 SPACER-FORK SP GUIDE |
44028-026 |
US $12.24 |
||
|
19
|
19
44029-019
GUIDE-FORK SPRING
|
44029-019 |
— | ||
|
20
|
20
44026-043 SPRING-FORK |
44026-043 |
US $72.04 |
||
|
21
|
21
44013-038 TUBE-FORK INNER |
44013-038 |
US $420.21 |
||
|
22
|
22
44023-005 CYLINDER-FORKUse for 44023-005 |
44023-005 |
US $91.19 |
||
|
23
|
23
44018-001 PISTON FORK |
44018-001 |
US $12.06 |
||
|
24
|
24
44044-008 CIRCLIP FORK PISTON |
44044-008 |
US $9.36 |
||
|
25
|
25
44010-019
DUST SHIELD-FORK
|
44010-019 |
— | ||
|
26
|
26
44044-005 CIRCLIP OIL SEAL FIT |
44044-005 |
US $9.05 |
||
|
27
|
27
44043-023 WASHER OIL SEAL FIT |
44043-023 |
US $2.95 |
||
|
28
|
28
44009-020
OIL SEAL
Oil seal,fork; |
44009-020 |
— | ||
| replacement | |||||
|
28
|
28
44009-026 OIL SEALOil seal,fork; |
44009-026 |
from US $26.76 |
||
|
30
|
30
44006-044 TUBE,RH,FORK OUTERTube,rh,fork outer; |
44006-044 |
US $212.67 |
||
|
31
|
31
44045002 GASKET FORK DRAIN PLGGasket fork drain plg; |
44045002 |
from US $3.96 |
||
|
32
|
32
220B0408
SCREW-PAN-CROS
Screw pan head 4x8; |
220B0408 |
— | ||
| replacement | |||||
|
32
|
32
220AA0408 SCREW-PAN-CROSScrew pan head 4x8; |
220AA0408 |
from US $0.79 |
||
|
33
|
33
44041040 BOLT-FORK CYLINDERBolt-fork cylinder; |
44041040 |
from US $4.44 |
||
|
34
|
34
44045057 GASKET,FORK CYLINDERGasket,fork cylinder; |
44045057 |
from US $3.33 |
||
|
35
|
35
44063-006 HOLDER-FRONT AXLE |
44063-006 |
US $25.61 |
||
|
36
|
36
172G0830 STUD,8X30Stud 8x30; |
172G0830 |
from US $1.27 |
||
| replacement | |||||
|
36
|
36
172BA0830 STUD,8X30Stud 8x30; |
172BA0830 |
from US $1.24 |
||
|
37
|
37
311B0800
Nut,8mm
Nut,8mm; |
311B0800 |
— | ||
| replacements | |||||
|
37
|
37
317AA0800 NUT-HEX-SMALLNut,8mm; |
317AA0800 |
from US $0.94 |
||
|
37
|
37
311AA0800 NUT-HEX-SMALLNut,8mm; |
311AA0800 |
US $0.40 |
||
|
38
|
38
44037-058 STEM-STEERING |
44037-058 |
US $170.68 |
||
|
39
|
39
44005-046 TUBE,LH,FORK OUTERTube,lh,fork outer; |
44005-046 |
US $342.74 |
||
|
40
|
40
461F1000 WASHER SPRING 10MMWasher spring 10mm; |
461F1000 |
US $0.95 |
||
| replacement | |||||
|
40
|
40
461DA1000 WASHER-SPRINGWasher spring 10mm; |
461DA1000 |
from US $0.90 |
||
|
41
|
41
28001-029
REFLECTOR,REFLEX,FRNT
Reflector,reflex,frnt; |
28001-029 |
— | ||
|
42
|
42
28016-002
DAMPER RUBBER-REFLEX
|
28016-002 |
— | ||
|
43
|
43
46101-007
KNOB-STEERING DAMPER
|
46101-007 |
— | ||
|
44
|
44
315N1200A NUT 12MM |
315N1200A |
US $4.81 |
||
|
45
|
45
46126-001
SPRING STRG DAMP KNOB
|
46126-001 |
— | ||
|
46
|
46
92090-020 BOLT-STEERING STEM |
92090-020 |
US $56.65 |
||
|
47
|
47
46100-002 WASHER-WAVE |
46100-002 |
US $10.10 |
||
|
48
|
48
92090-007 NUT, STEERING STEM LOCKNut steering stem lck; |
92090-007 |
from US $7.13 |
||
|
49
|
49
46098-016 CAP, STEERING STEMCap, steering stem; |
46098-016 |
from US $4.75 |
||
|
50
|
50
92047-006 CONE STRNG STEM BERNGCone strng stem berng; |
92047-006 |
from US $9.98 |
||
|
51
|
51
46106-007
PLATE-STRG DAMP STEEL
|
46106-007 |
— | ||
|
52
|
52
46104-005
PLATE STRG DAMP FRCTN
|
46104-005 |
— | ||
|
53
|
53
46105-005
PLATE STRG DAMP ANCHR
|
46105-005 |
— | ||
|
54
|
54
46106-008
PLATE-STRG DAMP STEEL
|
46106-008 |
— | ||
|
55
|
55
46124-006
SPRING-STEERING DAMP
|
46124-006 |
— | ||
|
56
|
56
46125-005
NUT STRG DAMPER GUIDE
|
46125-005 |
— | ||
|
57
|
57
550D1615
PIN COTTER 1.6X15
Pin cotter 1.6x15; |
550D1615 |
— | ||
| replacement | |||||
|
57
|
57
550AA1615 PIN-COTTER,1.6X15Pin cotter 1.6x15; |
550AA1615 |
from US $0.72 |
||
|
58
|
58
114G0812 BOLT-SMALL-UPSET,8X12 |
114G0812 |
US $24.30 |
||
| replacement | |||||
|
58
|
58
115G0812 BOLT-SMALL-UPSET,8X12 |
115G0812 |
US $2.43 |
||
|
59
|
59
461F0800
WASHER-SPRING,8MM
Washer spring 8mm; |
461F0800 |
— | ||
| replacement | |||||
|
59
|
59
461DA0800 WASHER-SPRING,8MMWasher spring 8mm; |
461DA0800 |
from US $0.48 |
||
|
60
|
60
112G0610
BOLT,6X10
Bolt,6x10; |
112G0610 |
— | ||
| replacement | |||||
|
60
|
60
112BA0610 BOLT-UPSETBolt,6x10; |
112BA0610 |
from US $0.92 |
||
|
61
|
61
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
61
|
61
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
62
|
62
410B0600
WASHER-PLAIN-SMALL
Washer plain 6mm; |
410B0600 |
— | ||
| replacement | |||||
|
62
|
62
410AA0600 WASHER-PLAIN-SMALLWasher plain 6mm; |
410AA0600 |
from US $0.79 |
||
|
63
|
63
92037-099
CLAMP-CABLE
|
92037-099 |
— | ||
|
64
|
64
44001-144 FORK-FRONT |
44001-144 |
US $1,170.40 |
||
|
65
|
65
44023-005 CYLINDER-FORK |
44023-005 |
US $91.19 |
||
