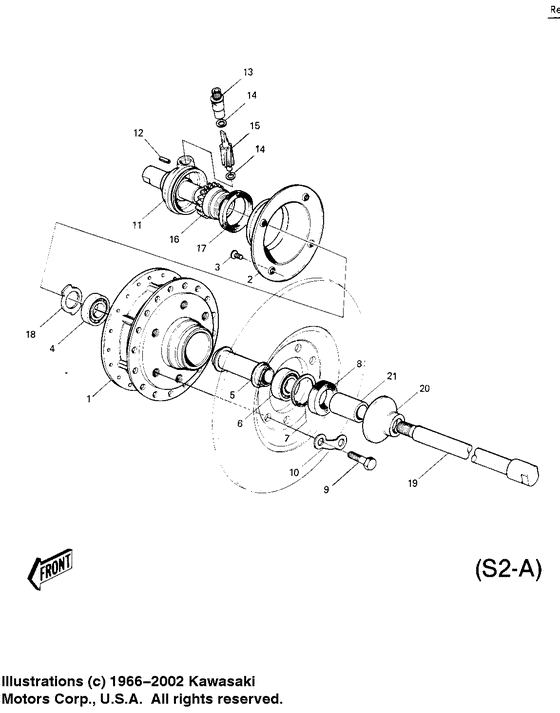

Front hub (S2-a) Diagram Kawasaki Model "S" S2 Mach II
- Year
- 1972
- Model code
- S2
- Sales region
- USA
- Engine Capacity
- 350
- Model
- S2 Mach II
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41034-024 DRUM-ASSY,FR BRKDrum-assy,fr brk; Includes ref. #'s 1~10 |
41034-024 |
US $178 |
||
|
2
|
2
41042-011 DUST COVER |
41042-011 |
US $15.64 |
||
|
3
|
3
222E0408A SCREW OVL CNTSNK 4X8 |
222E0408A |
US $2.66 |
||
|
4
|
4
601B6302Z BEARING BALL #6302Z |
601B6302Z |
from US $10.27 |
||
|
5
|
5
41039-021 SPACER-FR AXLE BRG |
41039-021 |
US $6.46 |
||
|
6
|
6
601B6302
BEARING BALL #6302
Bearing ball #6302; |
601B6302 |
— | ||
|
7
|
7
92033-1041 CIRCLIP,42MMCirclip,42mm; |
92033-1041 |
from US $3.48 |
||
|
8
|
8
92052-005 OIL SEAL WTC25428 |
92052-005 |
from US $13.06 |
||
|
9
|
9
92001-104 BOLT-HEX HEAD,8X28Bolt-hex head,8x28; |
92001-104 |
from US $5.60 |
||
|
10
|
10
92088-016
WASHER-LOCK
|
92088-016 |
— | ||
|
11
|
11
41078-002 GEAR BOX ASSYIncludes ref. #'s 11~18 |
41078-002 |
US $78.88 |
||
|
12
|
12
41082001 PIN,SPRINGPin,spring; |
41082001 |
from US $3.01 |
||
|
13
|
13
41062005 BUSH,SPEEDMETER CABLEBush,speedmeter cable; |
41062005 |
from US $14.89 |
||
|
14
|
14
41063001 WASHER THRST SPD PINIWasher thrst spd pini; |
41063001 |
from US $3.17 |
||
|
15
|
15
41060-013 PINION-SPEEDOMETER |
41060-013 |
US $16.94 |
||
|
16
|
16
41059-017 GEAR-SPEEDOMETER,25TGear-speedometer,25t; 25t |
41059-017 |
US $25.58 |
||
|
17
|
17
92050-049 OIL SEAL |
92050-049 |
US $22.37 |
||
|
18
|
18
41064-1005 RECEIVER,SPEED GEARReceiver,speed gear; |
41064-1005 |
US $10.78 |
||
|
19
|
19
41068-038 AXLE-FRONT |
41068-038 |
US $27.92 |
||
|
20
|
20
41042-012 DUST COVER-FRONT AXLE |
41042-012 |
US $16.29 |
||
|
21
|
21
41069-020 COLLAR-FRONT AXLE |
41069-020 |
US $9.04 |
