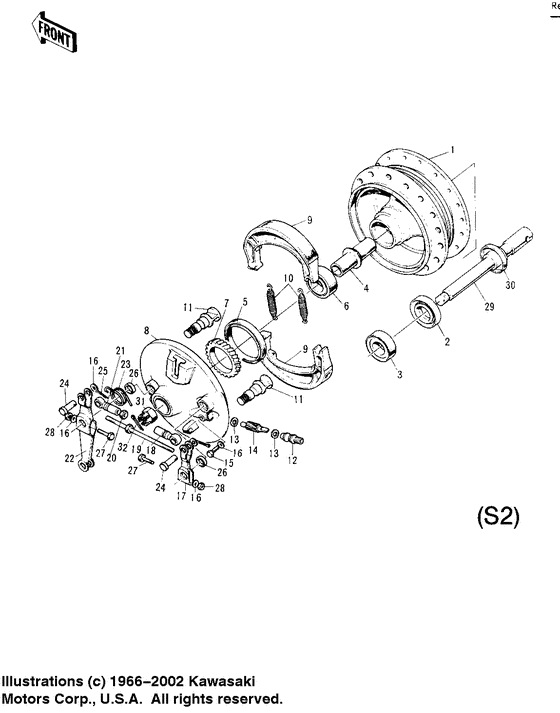

Front hub/brake (S2) Diagram Kawasaki Model "S" S2 Mach II
- Year
- 1972
- Model code
- S2
- Sales region
- USA
- Engine Capacity
- 350
- Model
- S2 Mach II
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41034-007
DRUM-ASSY,FR BRK
Drum-assy,fr brk; Includes ref. #'s 1~6 |
41034-007 |
— | ||
|
2
|
2
92052-005 OIL SEAL WTC25428 |
92052-005 |
from US $13.06 |
||
|
3
|
3
601B6302
BEARING BALL #6302
Bearing ball #6302; |
601B6302 |
— | ||
|
4
|
4
41039-011 SPACER F AXLE BEARING |
41039-011 |
US $8.41 |
||
|
5
|
5
92050-017
OIL SEAL WOC55687
|
92050-017 |
— | ||
|
6
|
6
601B6302Z BEARING BALL #6302Z |
601B6302Z |
from US $10.27 |
||
|
7
|
7
41059-009 GEAR SPEEDOMETER |
41059-009 |
US $22.28 |
||
|
8
|
8
41035-066-80 PANEL-ASY,FR BRK BUFFPanel-asy,fr brk buff; Includes ref. #'s 7~28 |
41035-066-80 |
US $435.49 |
||
|
9
|
9
41048-019 SHOE-BRAKEShoe,brake; |
41048-019 |
US $59.30 |
||
| replacement | |||||
|
9
|
9
41048-1090 SHOE-BRAKEShoe,brake; |
41048-1090 |
US $59.30 |
||
|
10
|
10
41049-004 SPRING FRNT BRK SHOE |
41049-004 |
from US $3.76 |
||
|
11
|
11
41050-004 CAM SHAFT FRONT BRAKE |
41050-004 |
US $12.37 |
||
|
12
|
12
41062-003
BUSH SPEDMETER PINION
|
41062-003 |
— | ||
|
13
|
13
41063-003
WASHER PINION THRUST
|
41063-003 |
— | ||
|
14
|
14
41060-007 PINION SPEEDOMETER |
41060-007 |
from US $13.52 |
||
|
15
|
15
112G0618
BOLT-UPSET
|
112G0618 |
— | ||
| replacement | |||||
|
15
|
15
112BA0618 BOLT-UPSET |
112BA0618 |
from US $0.95 |
||
|
16
|
16
411B0600 WASHER-PLAIN,6.5X13X1Washer plain 6mm; |
411B0600 |
US $1.90 |
||
| replacement | |||||
|
16
|
16
411AA0600 WASHER-PLAIN,(6.5x13x1)Washer plain 6mm; |
411AA0600 |
from US $2.13 |
||
|
17
|
17
41053012 LEVER FRT BRK CAM 2ND |
41053012 |
US $21.07 |
||
|
18
|
18
41058009 ROD END,BRK CONNECTRod end,brk connect; |
41058009 |
US $15.05 |
||
|
19
|
19
41057-004
ROD BRK CAM LEV CONCT
|
41057-004 |
— | ||
|
20
|
20
311B0500
NUT-HEX,5MM
Nut,5mm; |
311B0500 |
— | ||
| replacement | |||||
|
20
|
20
311AA0500 NUT-HEX,5MMNut,5mm; |
311AA0500 |
from US $0.78 |
||
|
21
|
21
41058008 ROD END,BRK CONNECTRod end,brk connect; |
41058008 |
US $15.05 |
||
|
22
|
22
41053011 LEVER FRT BRK CAM 1ST |
41053011 |
US $26.63 |
||
|
23
|
23
41056001 SPRING FR BRK CAM LEV |
41056001 |
from US $8.73 |
||
|
24
|
24
41055003 PIN BRAKE CONNECT RODPin brake connect rod; |
41055003 |
from US $6.55 |
||
|
25
|
25
550D1210
PIN COTTER 1.2X10
Pin cotter 1.2x10; |
550D1210 |
— | ||
| replacement | |||||
|
25
|
25
550AA1210 PIN-COTTER,1.2X10Pin cotter 1.2x10; |
550AA1210 |
from US $1.12 |
||
|
26
|
26
41051001 DUST SHIELD BRAKE CAMDust shield brake cam; |
41051001 |
from US $3.17 |
||
|
27
|
27
112G0630
BOLT-UPSET
|
112G0630 |
— | ||
| replacement | |||||
|
27
|
27
112BA0630 BOLT-UPSET |
112BA0630 |
from US $0.86 |
||
|
28
|
28
311B0600
NUT-HEX,6MM
Nut 6mm; |
311B0600 |
— | ||
| replacement | |||||
|
28
|
28
311AA0600 NUT-HEX,6MMNut 6mm; |
311AA0600 |
from US $0.63 |
||
|
29
|
29
41068-035 AXLE-FRONT |
41068-035 |
US $21.62 |
||
|
30
|
30
41069-007
COLLAR F AXL OIL SEAL
|
41069-007 |
— | ||
|
31
|
31
320B1400 NUT-CASTLE,14MMNut-castle,14mm; |
320B1400 |
US $5.89 |
||
|
32
|
32
550D3030 PIN COTTER 3.0X30Pin cotter 3.0x30; |
550D3030 |
US $1.27 |
||
| replacement | |||||
|
32
|
32
550AA3030 PIN-COTTER,3.0X30Pin cotter 3.0x30; |
550AA3030 |
from US $0.95 |
||
