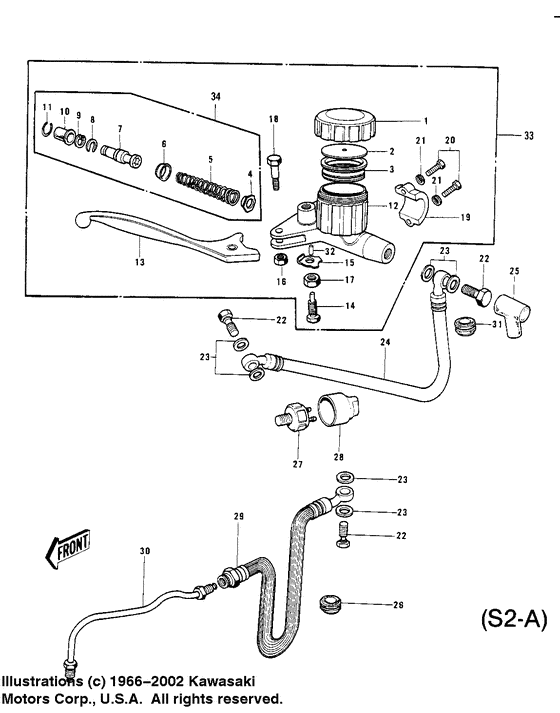

Front master cylinder (S2-a) Diagram Kawasaki Model "S" S2 Mach II
- Year
- 1972
- Model code
- S2
- Sales region
- USA
- Engine Capacity
- 350
- Model
- S2 Mach II
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43026-003
CAP-BRAKE
Cap,oil cup; |
43026-003 |
— | ||
| replacement | |||||
|
1
|
1
43026-1054
CAP-BRAKE
Cap,oil cup; |
43026-1054 |
— | ||
|
2
|
2
43027-001
PLATE-MASTER CYLINDER
|
43027-001 |
— | ||
|
3
|
3
43028-001 DIAPHRAGM |
43028-001 |
from US $19.90 |
||
|
4
|
4
43017-001
VALVE ASSY-CHECK
|
43017-001 |
— | ||
|
5
|
5
43018-001
SPRING ASSY-RETURN
|
43018-001 |
— | ||
|
6
|
6
43019-001
CUP-PRIMARY
|
43019-001 |
— | ||
|
7
|
7
43072-001
PISTON ASSY
|
43072-001 |
— | ||
|
8
|
8
43022-001
STOPPER-PISTON
|
43022-001 |
— | ||
|
9
|
9
481J1800 CIRCLIP,18MMCirclip,18mm; |
481J1800 |
from US $1.11 |
||
|
10
|
10
43024-001
BOOTS
|
43024-001 |
— | ||
|
11
|
11
43025-001
STOPPER-BOOTS
|
43025-001 |
— | ||
|
12
|
12
43016-002 BODY, MASTER CYLINDERBody, master cylinder; |
43016-002 |
US $319.93 |
||
|
13
|
13
43029-003 LEVER,FRONT BRAKELever,front brake; |
43029-003 |
from US $47.89 |
||
|
14
|
14
43030-002
BOLT-LEVER ADJUST
Use for 43015-001, use for 43015-032 |
43030-002 |
— | ||
|
15
|
15
43031-001
WASHER-LOCK,8MM
Washer-lock,8mm; |
43031-001 |
— | ||
|
16
|
16
312N0600 NUT,6MMNut,6mm; |
312N0600 |
US $36.90 |
||
|
17
|
17
314N0800 NUT,8MMNut,8mm; |
314N0800 |
from US $0.62 |
||
|
18
|
18
43033-001
BOLT-LEVER FITTING
Use for 43015-001, use for 43015-032 |
43033-001 |
— | ||
|
19
|
19
43034-001 HOLDER-MASTER CYL |
43034-001 |
US $41.92 |
||
|
20
|
20
110N0625 BOLT-UPSET |
110N0625 |
US $35.80 |
||
| replacement | |||||
|
20
|
20
112N0625 BOLT-UPSET |
112N0625 |
from US $1.09 |
||
|
21
|
21
410B0600
WASHER-PLAIN-SMALL
Washer plain 6mm; |
410B0600 |
— | ||
| replacement | |||||
|
21
|
21
410AA0600 WASHER-PLAIN-SMALLWasher plain 6mm; |
410AA0600 |
from US $0.79 |
||
|
22
|
22
92002-1888
BOLT,OIL,L=23
Bolt,oil,l=23; |
92002-1888 |
— | ||
| replacement | |||||
|
22
|
22
92153-0627 BOLT,OIL,L=23Bolt,oil,l=23; |
92153-0627 |
from US $2.85 |
||
|
23
|
23
43067-001 WASHER-SEAL,10.1X14.5Washer-oil bolt; |
43067-001 |
US $4.12 |
||
| replacement | |||||
|
23
|
23
49091-0001 WASHER-SEAL,10.1X14.5Washer-oil bolt; |
49091-0001 |
from US $1.27 |
||
|
24
|
24
43059-006
HOSE-FRONT BRAKE
|
43059-006 |
— | ||
|
25
|
25
49006-1041 BOOT,DUSTBoot,dust; |
49006-1041 |
from US $9.35 |
||
|
26
|
26
43064-001
GROMMET-HOSE BRACKET
|
43064-001 |
— | ||
| replacement | |||||
|
26
|
26
43064006 DAMPER RUBBER,CYL HSE |
43064006 |
from US $3.17 |
||
|
27
|
27
43065-001
SWITCH-FRONT BRAKE
|
43065-001 |
— | ||
|
28
|
28
11012-1037
CAP,FRONT BRK SWITCH
Cap,front brk switch; |
11012-1037 |
— | ||
|
29
|
29
43059-008 HOSE-FRONT BRAKE |
43059-008 |
US $131.49 |
||
|
30
|
30
43060-003 PIPE-BRIDGE |
43060-003 |
US $16.70 |
||
|
31
|
31
43064-005
DAMPER RUBBER
|
43064-005 |
— | ||
|
32
|
32
43074-001
TUBE
Use for 43015-001 |
43074-001 |
— | ||
|
33
|
33
43015-032
CYLINDER ASSY,MASTER
Cylinder assy,master; |
43015-032 |
— | ||
|
34
|
34
43073-001 REPAIR SET-MASTER CYL |
43073-001 |
from US $74.97 |
||
