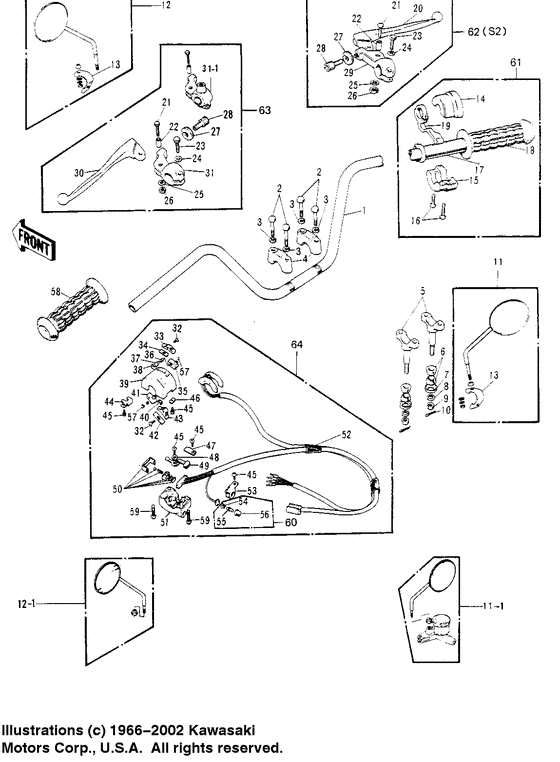

Handlebar Diagram Kawasaki Model "S" S2 Mach II
- Year
- 1972
- Model code
- S2
- Sales region
- USA
- Engine Capacity
- 350
- Model
- S2 Mach II
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46003-026
HANDLEBAR
S2, s2-a |
46003-026 |
— | ||
|
2
|
2
92001-1405 BOLT 8X38 |
92001-1405 |
from US $11.23 |
||
|
3
|
3
461F0800
WASHER-SPRING,8MM
Washer spring 8mm; |
461F0800 |
— | ||
| replacement | |||||
|
3
|
3
461DA0800 WASHER-SPRING,8MMWasher spring 8mm; |
461DA0800 |
from US $0.48 |
||
|
4
|
4
46012008 HOLDER-HANDLEBARHolder-handlebar; |
46012008 |
from US $24.53 |
||
|
5
|
5
46012010 HOLDER-HANDLEBAR LOWHolder-handlebar low; |
46012010 |
US $25.58 |
||
|
6
|
6
92075-039 DAMPER RUBBER HANDLEDamper rubber handle; |
92075-039 |
from US $3.01 |
||
|
7
|
7
46016-003 CAP, HANDLEBAR HOLDERCap handlebar holder; |
46016-003 |
from US $4.91 |
||
|
8
|
8
461F1000 WASHER SPRING 10MMWasher spring 10mm; |
461F1000 |
US $0.95 |
||
| replacement | |||||
|
8
|
8
461DA1000 WASHER-SPRINGWasher spring 10mm; |
461DA1000 |
from US $0.90 |
||
|
9
|
9
31381-000
New Genuine Part
|
31381-000 |
— | ||
|
10
|
10
554A0800 PIN-SNAPPin,snap; |
554A0800 |
from US $2.09 |
||
| replacement | |||||
|
10
|
10
554DA0800 PIN-SNAPPin,snap; |
554DA0800 |
from US $0.63 |
||
|
11
|
11
56002-024
REAR VIEW MIRROR R.H.
S2 |
56002-024 |
— | ||
|
12
|
12
56003-016
REAR VIEW MIRROR LH
S2 |
56003-016 |
— | ||
|
13
|
13
56006-001
BRACKET
S2 |
56006-001 |
— | ||
|
14
|
14
46041-006 CASE-R.H UPPER |
46041-006 |
US $15.17 |
||
|
15
|
15
46023-006
CASE-R.H LOWER
|
46023-006 |
— | ||
|
16
|
16
220B0522 SCREW-PAN-CROSScrew pan head 5x22; |
220B0522 |
US $0.95 |
||
| replacement | |||||
|
16
|
16
220AA0522 SCREW-PAN-CROSScrew pan head 5x22; |
220AA0522 |
from US $0.82 |
||
|
17
|
17
46019-017
GRIP ASSY-THROTTLE
S2, s2-a |
46019-017 |
— | ||
|
18
|
18
46061-012
RUBBER-R.H GRIP
|
46061-012 |
— | ||
|
19
|
19
46096-007
LEVER-STARTER
|
46096-007 |
— | ||
|
20
|
20
46058-004 LEVER, FRONT BRAKELever front brake; S2 |
46058-004 |
from US $24.91 |
||
|
21
|
21
92007-020
BOLT HEX HEAD 5X20
Use 1 of each for s2-a |
92007-020 |
— | ||
|
22
|
22
46059-011
COLLAR LEVER
Use 1 of each for s2-a |
46059-011 |
— | ||
|
23
|
23
110N0622
BOLT, HEX HEAD 6X22
Bolt, hex head 6x22; S2, s2-a |
110N0622 |
— | ||
|
24
|
24
410B0600
WASHER-PLAIN-SMALL
Washer plain 6mm; Use 1 of each for s2-a |
410B0600 |
— | ||
| replacement | |||||
|
24
|
24
410AA0600 WASHER-PLAIN-SMALLWasher plain 6mm; Use 1 of each for s2-a |
410AA0600 |
from US $0.79 |
||
|
25
|
25
464H0500
Washer-lock,5mm
Use 1 of each for s2-a |
464H0500 |
— | ||
| replacement | |||||
|
25
|
25
464EA0500
Washer-toothed
Use 1 of each for s2-a |
464EA0500 |
— | ||
|
26
|
26
312B0500
NUT-HEX
Nut 5mm; Use 1 of each for s2-a |
312B0500 |
— | ||
| replacement | |||||
|
26
|
26
312AA0500 NUT-HEXNut 5mm; Use 1 of each for s2-a |
312AA0500 |
from US $0.78 |
||
|
27
|
27
46056005 NUT-LOCKNut-lock; Use 1 of each for s2-a |
46056005 |
from US $6.02 |
||
|
28
|
28
46055-006 SCREW ADJUSTUse 1 of each for s2-a |
46055-006 |
US $19.31 |
||
|
29
|
29
46060-006
HOLDER-FR BRAKE LEVER
S2 |
46060-006 |
— | ||
|
30
|
30
46092015 LEVER-CLUTCHLever-clutch; S2, s2-a |
46092015 |
from US $20.45 |
||
|
31
|
31
46094-010
HOLDER,CLUTCH LEVER
Holder,clutch lever; S2, s2-a |
46094-010 |
— | ||
|
32
|
32
221B0308A
SCREW CNTSNK HD 3X8
|
221B0308A |
— | ||
|
33
|
33
46044-008 KNOB-L.H SWITCH,BKnob-l.h switch,b; |
46044-008 |
US $4.97 |
||
|
34
|
34
46031-006 SPRING-L.H SW KNOB,BSpring-l.h sw knob,b; |
46031-006 |
US $4.18 |
||
|
35
|
35
46089-005
SWITCH-L.H,A
Switch-l.h,a; |
46089-005 |
— | ||
|
36
|
36
46031-007 SPRING-L.H SWITCH |
46031-007 |
US $2.02 |
||
|
37
|
37
46079-004 CONTACT-L.H SWITCH |
46079-004 |
US $1.44 |
||
|
38
|
38
46080-004 PLATE-L.H SW CNTACT,BPlate-l.h sw cntact,b; |
46080-004 |
US $4.16 |
||
|
39
|
39
46086-014 CASE-L.H UPPER |
46086-014 |
US $13.41 |
||
|
40
|
40
46080-003 PLATE-L.H SW CNTACT,APlate-l.h sw cntact,a; |
46080-003 |
US $4.18 |
||
|
41
|
41
46089-006
SWITCH-L.H,B
Switch-l.h,b; |
46089-006 |
— | ||
|
42
|
42
46031-003
SPRING L.H SW KNOB
|
46031-003 |
— | ||
|
43
|
43
46044-011
KNOB-L.H SWITCH
|
46044-011 |
— | ||
|
44
|
44
46085-018 HOLDER-L.H SW UPPER,AHolder-l.h sw upper,a; |
46085-018 |
US $1.31 |
||
|
45
|
45
220B0305A
SCREW,PAN HEAD,3X5
|
220B0305A |
— | ||
| replacement | |||||
|
45
|
45
92009-1123 SCREW,PAN HEAD,3X5 |
92009-1123 |
from US $0.79 |
||
|
46
|
46
46085-019 HOLDER-L.H SW UPPER,BHolder-l.h sw upper,b; |
46085-019 |
US $0.65 |
||
|
47
|
47
46085-016 HOLDER-L.H SW LOWER,AHolder-l.h sw lower,a; |
46085-016 |
US $3.40 |
||
|
48
|
48
92095-010
WASHER
|
92095-010 |
— | ||
|
49
|
49
46044-007 KNOB-SWITCH |
46044-007 |
US $9.32 |
||
|
50
|
50
46089-007 SLIDE BLOCK AY-L.H SW |
46089-007 |
US $15.97 |
||
|
51
|
51
46077-016 CASE-L.H LOWER |
46077-016 |
US $25.56 |
||
|
52
|
52
46082-018 WIRING HARNESS-L.H SW |
46082-018 |
US $54.20 |
||
|
53
|
53
46085-017 HOLDER-L.H SW LOWER,BHolder-l.h sw lower,b; |
46085-017 |
US $0.90 |
||
|
54
|
54
27010-1009 SWITCH ASSY,HORN BUTNSwitch assy,horn butn; |
27010-1009 |
from US $6.49 |
||
|
55
|
55
27010-1009 SWITCH ASSY,HORN BUTNSwitch assy,horn butn; |
27010-1009 |
from US $6.49 |
||
|
56
|
56
27010-1009 SWITCH ASSY,HORN BUTNSwitch assy,horn butn; |
27010-1009 |
from US $6.49 |
||
|
57
|
57
46079-004 CONTACT-L.H SWITCH |
46079-004 |
US $1.44 |
||
|
58
|
58
46075-017
RUBBER-L.H GRIP
|
46075-017 |
— | ||
|
59
|
59
220B0522 SCREW-PAN-CROSScrew pan head 5x22; |
220B0522 |
US $0.95 |
||
| replacement | |||||
|
59
|
59
220AA0522 SCREW-PAN-CROSScrew pan head 5x22; |
220AA0522 |
from US $0.82 |
||
|
60
|
60
27010-1009 SWITCH ASSY,HORN BUTNSwitch assy,horn butn; |
27010-1009 |
from US $6.49 |
||
|
61
|
61
46018-018
CASE ASSY-R.H
|
46018-018 |
— | ||
|
62
|
62
46021-025 LEVER ASSY,FRNT BRAKELever assy,frnt brake; S2 |
46021-025 |
US $60.41 |
||
|
63
|
63
46076-026
LEVER ASSY-CLUTCH
S2, s2-a |
46076-026 |
— | ||
|
64
|
64
46091-005
CASE ASSY-L.H
|
46091-005 |
— | ||
