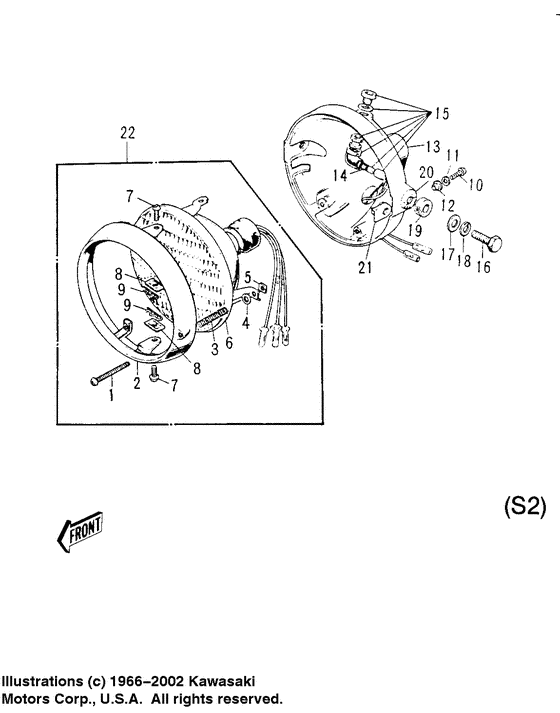

Headlight (S2) Diagram Kawasaki Model "S" S2 Mach II
- Year
- 1972
- Model code
- S2
- Sales region
- USA
- Engine Capacity
- 350
- Model
- S2 Mach II
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
23019021 SCREW FORCUS ADJUSTScrew forcus adjust; |
23019021 |
from US $3.17 |
||
|
2
|
2
23006-025
RIM-HEAD LAMP
|
23006-025 |
— | ||
|
3
|
3
23014005 SPRING FOCUS ADJUSTSpring focus adjust; |
23014005 |
from US $3.01 |
||
|
4
|
4
23021004 WASHER |
23021004 |
from US $3.48 |
||
|
5
|
5
23020-016
NUT
|
23020-016 |
— | ||
|
6
|
6
23007-030 SEALED BEAM UNIT |
23007-030 |
US $110.14 |
||
|
7
|
7
23019-018
SCREW LENS UNIT FITT
|
23019-018 |
— | ||
|
8
|
8
23020-009 NUT LENS UNIT FITTING |
23020-009 |
US $3.15 |
||
|
9
|
9
23022-001 PIN LENS UNIT FITTING |
23022-001 |
US $2.93 |
||
|
10
|
10
92011-024 SCREW,5MMScrew-pan head,5mm; |
92011-024 |
from US $3.06 |
||
| replacement | |||||
|
10
|
10
92009-1947 SCREW,5MMScrew-pan head,5mm; |
92009-1947 |
from US $1.43 |
||
|
11
|
11
461F0500
WASHER-SPRING
Washer spring 5mm; |
461F0500 |
— | ||
| replacement | |||||
|
11
|
11
461DA0500 WASHER-SPRINGWasher spring 5mm; |
461DA0500 |
from US $0.48 |
||
|
12
|
12
23021010 WASHER |
23021010 |
from US $3.01 |
||
|
13
|
13
23005-032-10
BODY-HEAD LAMP,BLACK
Body-head lamp,black; |
23005-032-10 |
— | ||
|
14
|
14
92069-017 BULB 12V 1.5W |
92069-017 |
US $2.95 |
||
|
15
|
15
23016-006
LAMP ASSY-PILOT
|
23016-006 |
— | ||
|
16
|
16
92007-024 BOLT,10MMBolt,10mm; |
92007-024 |
US $6.81 |
||
|
17
|
17
411B1000 WASHER-PLAIN,10MMWasher plain 10mm; |
411B1000 |
from US $1.26 |
||
| replacement | |||||
|
17
|
17
411AA1000 WASHER-PLAIN,10MMWasher plain 10mm; |
411AA1000 |
from US $0.72 |
||
|
18
|
18
461F1000 WASHER SPRING 10MMWasher spring 10mm; |
461F1000 |
US $0.95 |
||
| replacement | |||||
|
18
|
18
461DA1000 WASHER-SPRINGWasher spring 10mm; |
461DA1000 |
from US $0.90 |
||
|
19
|
19
92075-079 DAMPER RUBBER |
92075-079 |
US $4.25 |
||
|
20
|
20
23021-011 WASHER-LOCK |
23021-011 |
US $4.57 |
||
|
21
|
21
23020-017 NUT |
23020-017 |
US $4.16 |
||
|
22
|
22
23003-014
LAMP UNIT-HEAD
|
23003-014 |
— | ||
