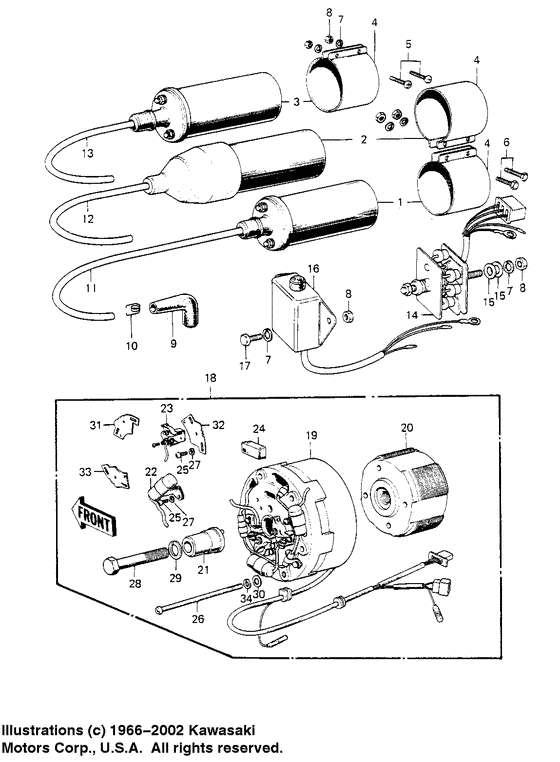

Ignition/generator/regulator Diagram Kawasaki Model "S" S2 Mach II
- Year
- 1972
- Model code
- S2
- Sales region
- USA
- Engine Capacity
- 350
- Model
- S2 Mach II
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21121-051
COIL-IGNITION,L.H
Coil-ignition,l.h; |
21121-051 |
— | ||
|
2
|
2
21121-052
COIL-IGNITION,CENTER
Coil-ignition,center; |
21121-052 |
— | ||
|
3
|
3
21121-053
COIL-IGNITION,R.H
Coil-ignition,r.h; |
21121-053 |
— | ||
|
4
|
4
21126-004
BAND-IGNITION COIL
|
21126-004 |
— | ||
|
5
|
5
220B0640
SCREW-PAN HEAD,6X40
Screw pan head 6x40; |
220B0640 |
— | ||
| replacement | |||||
|
5
|
5
220AA0640 SCREW-PAN HEAD,6X40Screw pan head 6x40; |
220AA0640 |
from US $0.95 |
||
|
6
|
6
112G0616
BOLT-UPSET,6X16
Bolt-upset,6x16; |
112G0616 |
— | ||
| replacement | |||||
|
6
|
6
112BA0616 BOLT-UPSET,6X16Bolt-upset,6x16; |
112BA0616 |
from US $0.86 |
||
|
7
|
7
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
7
|
7
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
8
|
8
311B0600
NUT-HEX,6MM
Nut 6mm; |
311B0600 |
— | ||
| replacement | |||||
|
8
|
8
311AA0600 NUT-HEX,6MMNut 6mm; |
311AA0600 |
from US $0.63 |
||
|
9
|
9
21130009 CAP SPARK PLUGCap spark plug; |
21130009 |
from US $16.79 |
||
|
10
|
10
92101001 SPRING-SPARK PLUG CAPSpring-spark plug cap; |
92101001 |
US $2.23 |
||
|
11
|
11
21133-020
CORD-HIGH TENSION,L.H
Cord-high tension,l.h; |
21133-020 |
— | ||
|
12
|
12
21133-021
CORD-HIGH TENSION,CNT
Cord-high tension,cnt; |
21133-021 |
— | ||
|
13
|
13
21133-022
CORD-HIGH TENSION,R.H
Cord-high tension,r.h; |
21133-022 |
— | ||
|
14
|
14
21061-011 RECTIFIER |
21061-011 |
US $137.12 |
||
|
15
|
15
411B0600 WASHER-PLAIN,6.5X13X1Washer plain 6mm; |
411B0600 |
US $1.90 |
||
| replacement | |||||
|
15
|
15
411AA0600 WASHER-PLAIN,(6.5x13x1)Washer plain 6mm; |
411AA0600 |
from US $2.13 |
||
|
16
|
16
21066-020 REGULATOR,VOLTAGERegulator,voltage; |
21066-020 |
US $355.90 |
||
|
17
|
17
112G0612
BOLT-UPSET,6X12
Bolt-upset,6x12; |
112G0612 |
— | ||
| replacement | |||||
|
17
|
17
112BA0612 BOLT-UP SETBolt-upset,6x12; |
112BA0612 |
from US $1.25 |
||
|
18
|
18
21001-019 ALTERNATOR~e/no. 11110, e/no. 11111~ |
21001-019 |
US $786.10 |
||
|
19
|
19
21003-015
STATOR ASSY
~e/no. 11110, e/no. 11111~ |
21003-015 |
— | ||
|
20
|
20
21007-020
ROTOR
|
21007-020 |
— | ||
|
21
|
21
21014-008
CAM
|
21014-008 |
— | ||
|
22
|
22
21013-026
CONDENSER
|
21013-026 |
— | ||
|
23
|
23
21008-019
BREAKER-CONTACT
Breaker-contact; |
21008-019 |
— | ||
|
24
|
24
21019-011 FELT-OIL |
21019-011 |
US $4.16 |
||
|
25
|
25
220B0408
SCREW-PAN-CROS
Screw pan head 4x8; |
220B0408 |
— | ||
| replacement | |||||
|
25
|
25
220AA0408 SCREW-PAN-CROSScrew pan head 4x8; |
220AA0408 |
from US $0.79 |
||
|
26
|
26
220E0580A SCREW PAN HEAD 5X80~e/no. 11110, e/no. 11111~ |
220E0580A |
US $3.55 |
||
|
27
|
27
461F0400
WASHER-SPRING
Washer spring 4mm; |
461F0400 |
— | ||
| replacement | |||||
|
27
|
27
461DA0400 WASHER-SPRINGWasher spring 4mm; |
461DA0400 |
from US $0.78 |
||
|
28
|
28
114B0870
BOLT HEX HEAD 8X70
|
114B0870 |
— | ||
|
29
|
29
461F0800
WASHER-SPRING,8MM
Washer spring 8mm; |
461F0800 |
— | ||
| replacement | |||||
|
29
|
29
461DA0800 WASHER-SPRING,8MMWasher spring 8mm; |
461DA0800 |
from US $0.48 |
||
|
30
|
30
411B0500
W-PLAIN-S
Washer plain 5mm; ~e/no. 11110 |
411B0500 |
— | ||
| replacements | |||||
|
30
|
30
411AA0500 WASHER-PLAIN,5MMWasher plain 5mm; ~e/no. 11110 |
411AA0500 |
from US $0.88 |
||
|
30
|
30
410AA0500 W-PLAIN-SWasher plain 5mm; ~e/no. 11110 |
410AA0500 |
from US $0.78 |
||
|
31
|
31
21156-003 PLATE-CNTCT BRKER,L.HPlate-cntct brker,l.h; |
21156-003 |
US $29.38 |
||
|
32
|
32
21156-004 PLATE-CNTCT BRKER,CENPlate-cntct brker,cen; |
21156-004 |
US $29.38 |
||
|
33
|
33
21156-005 PLATE-CNTCT BRKER,R.HPlate-cntct brker,r.h; |
21156-005 |
US $27.22 |
||
|
34
|
34
461F0500
WASHER-SPRING
Washer spring 5mm; ~e/no. 11110 |
461F0500 |
— | ||
| replacement | |||||
|
34
|
34
461DA0500 WASHER-SPRINGWasher spring 5mm; ~e/no. 11110 |
461DA0500 |
from US $0.48 |
||
