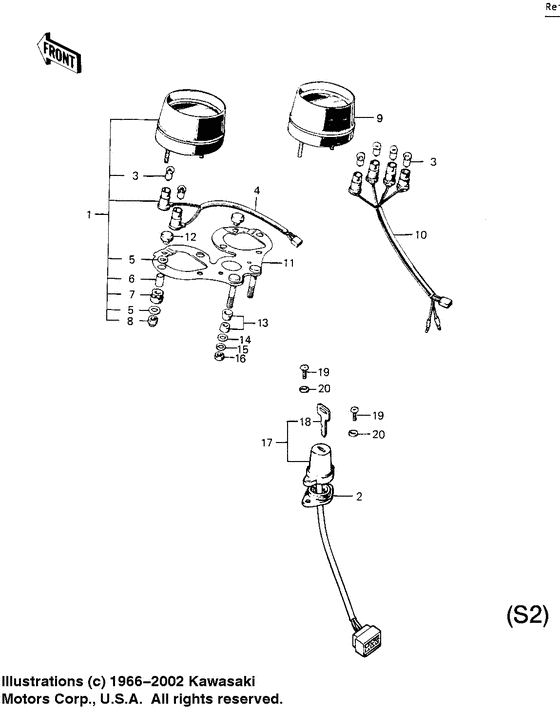

Meters/ignition switch (S2) Diagram Kawasaki Model "S" S2 Mach II
- Year
- 1972
- Model code
- S2
- Sales region
- USA
- Engine Capacity
- 350
- Model
- S2 Mach II
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
25005-050
SPEEDOMETER ASSY,MPH
Speedometer assy,mph; Mph |
25005-050 |
— | ||
|
2
|
2
92075-077
DAMPER RUBBER
|
92075-077 |
— | ||
|
3
|
3
92069-018 BULB 12V 3WBulb 12v 3w; |
92069-018 |
from US $3.90 |
||
|
4
|
4
25011-020
SOCKET-SPEEDOMETER
|
25011-020 |
— | ||
|
5
|
5
92022-194
WASHER-METER FITTING
|
92022-194 |
— | ||
|
6
|
6
92027-140
COLLAR
|
92027-140 |
— | ||
|
7
|
7
92075-089
DAMPER RUBBER-MTR FIT
|
92075-089 |
— | ||
|
8
|
8
92015-009
NUT,6MM
Nut,6mm; |
92015-009 |
— | ||
|
9
|
9
25016-011
TACHOMETER ASSY
Incl. ref. no's 3, 5-10 |
25016-011 |
— | ||
|
10
|
10
25011-021
SOCKET-TACHOMETER
|
25011-021 |
— | ||
|
11
|
11
25008-014
BRAKCET-METER
|
25008-014 |
— | ||
|
12
|
12
92075-090
DAMPER RUBBER-MTR BKT
|
92075-090 |
— | ||
|
13
|
13
92075-080 DAMPER RUBBER |
92075-080 |
from US $5.18 |
||
|
14
|
14
411B0800
WASHER PLAIN 8MM
Washer plain 8mm; |
411B0800 |
— | ||
| replacement | |||||
|
14
|
14
411AA0800 WASHER-PLAINWasher plain 8mm; |
411AA0800 |
from US $0.72 |
||
|
15
|
15
461F0800
WASHER-SPRING,8MM
Washer spring 8mm; |
461F0800 |
— | ||
| replacement | |||||
|
15
|
15
461DA0800 WASHER-SPRING,8MMWasher spring 8mm; |
461DA0800 |
from US $0.48 |
||
|
16
|
16
311B0800
Nut,8mm
Nut,8mm; |
311B0800 |
— | ||
| replacements | |||||
|
16
|
16
317AA0800 NUT-HEX-SMALLNut,8mm; |
317AA0800 |
from US $0.94 |
||
|
16
|
16
311AA0800 NUT-HEX-SMALLNut,8mm; |
311AA0800 |
US $0.40 |
||
|
17
|
17
27005-036 SWITCH-ASSY-IGNITIONWhn exh use 27005-1058 |
27005-036 |
US $103.27 |
||
| replacement | |||||
|
17
|
17
27005-1058
SWITCH-ASSY-IGNITION
Whn exh use 27005-1058 |
27005-1058 |
— | ||
|
18
|
18
27008-042-85
KEY SET #685
|
27008-042-85 |
— | ||
|
19
|
19
92011-022 SCREW-PAN HEAD |
92011-022 |
US $1.85 |
||
|
20
|
20
410B0800 WASHER-PLAIN-SMALL,8MWasher plain 8mm; |
410B0800 |
US $0.79 |
||
| replacement | |||||
|
20
|
20
410AA0800 WASHER-PLAIN-SMALL,8MWasher plain 8mm; |
410AA0800 |
from US $0.63 |
||
