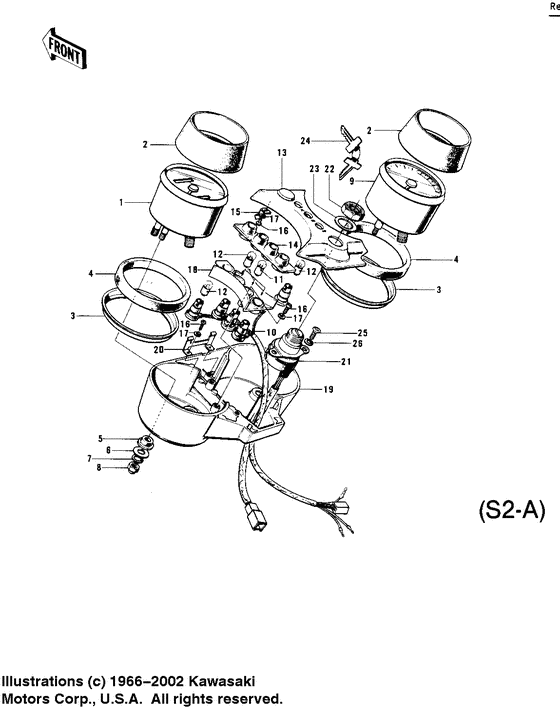

Meters/ignition switch (S2-a) Diagram Kawasaki Model "S" S2 Mach II
- Year
- 1972
- Model code
- S2
- Sales region
- USA
- Engine Capacity
- 350
- Model
- S2 Mach II
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
25005-124 SPEEDOMETER ASSY,MPHSpeedometer assy,mph; Includes ref. #'s 2-8, includes ref. #'s 2-8 |
25005-124 |
US $626.74 |
||
|
2
|
2
25012-012
COVER-METER
|
25012-012 |
— | ||
|
3
|
3
25026-001
RING-METER
|
25026-001 |
— | ||
|
4
|
4
25019-015
DAMPER RUBBER-METER
|
25019-015 |
— | ||
|
5
|
5
25019013 DAMPER RUBBER-METERDamper rubber-meter; |
25019013 |
from US $4.59 |
||
|
6
|
6
411B0500
W-PLAIN-S
Washer plain 5mm; |
411B0500 |
— | ||
| replacements | |||||
|
6
|
6
411AA0500 WASHER-PLAIN,5MMWasher plain 5mm; |
411AA0500 |
from US $0.88 |
||
|
6
|
6
410AA0500 W-PLAIN-SWasher plain 5mm; |
410AA0500 |
from US $0.78 |
||
|
7
|
7
461F0500
WASHER-SPRING
Washer spring 5mm; |
461F0500 |
— | ||
| replacement | |||||
|
7
|
7
461DA0500 WASHER-SPRINGWasher spring 5mm; |
461DA0500 |
from US $0.48 |
||
|
8
|
8
92015-059 NUT,5MMNut,5mm; |
92015-059 |
US $102.53 |
||
|
9
|
9
25016-020 TACHOMETER ASSYIncludes ref. #'s 2-8 |
25016-020 |
US $397.30 |
||
|
10
|
10
25011-029 SOCKET-METER |
25011-029 |
US $65.21 |
||
|
11
|
11
92069-017 BULB 12V 1.5W |
92069-017 |
US $2.95 |
||
|
12
|
12
92069-018 BULB 12V 3WBulb 12v 3w; |
92069-018 |
from US $3.90 |
||
|
13
|
13
25023-002
COVER-METER CASE
|
25023-002 |
— | ||
|
14
|
14
25019-014 DAMPER RUBBER-METER |
25019-014 |
US $27.88 |
||
|
15
|
15
25014-004 HOLDER-METER CASE COV |
25014-004 |
US $2.50 |
||
|
16
|
16
220B0408
SCREW-PAN-CROS
Screw pan head 4x8; |
220B0408 |
— | ||
| replacement | |||||
|
16
|
16
220AA0408 SCREW-PAN-CROSScrew pan head 4x8; |
220AA0408 |
from US $0.79 |
||
|
17
|
17
461F0400
WASHER-SPRING
Washer spring 4mm; |
461F0400 |
— | ||
| replacement | |||||
|
17
|
17
461DA0400 WASHER-SPRINGWasher spring 4mm; |
461DA0400 |
from US $0.78 |
||
|
18
|
18
25023-003 COVER-METER SOCKET |
25023-003 |
US $10.08 |
||
|
19
|
19
25008-026
CASE-METER
|
25008-026 |
— | ||
|
20
|
20
25014-003 HOLDER-METER CASE |
25014-003 |
US $7.07 |
||
|
21
|
21
27005-1021
SWITCH-ASSY
Includes ref. #'s 22-24, includes ref. #'s 22-24 |
27005-1021 |
— | ||
|
22
|
22
27007-003 NUT-IGNITION SWITCH |
27007-003 |
US $5.36 |
||
|
23
|
23
27019-002 WASHER-IGNITION |
27019-002 |
US $4.16 |
||
|
24
|
24
27008-048-81 KEY SET,#181Key set,#181; |
27008-048-81 |
US $11.74 |
||
|
25
|
25
220B0508
SCREW-PAN-CROS
Screw pan head 5x8; |
220B0508 |
— | ||
| replacement | |||||
|
25
|
25
220AA0508 SCREW-PAN-CROSScrew pan head 5x8; |
220AA0508 |
from US $0.78 |
||
|
26
|
26
461F0500
WASHER-SPRING
Washer spring 5mm; |
461F0500 |
— | ||
| replacement | |||||
|
26
|
26
461DA0500 WASHER-SPRINGWasher spring 5mm; |
461DA0500 |
from US $0.48 |
||
