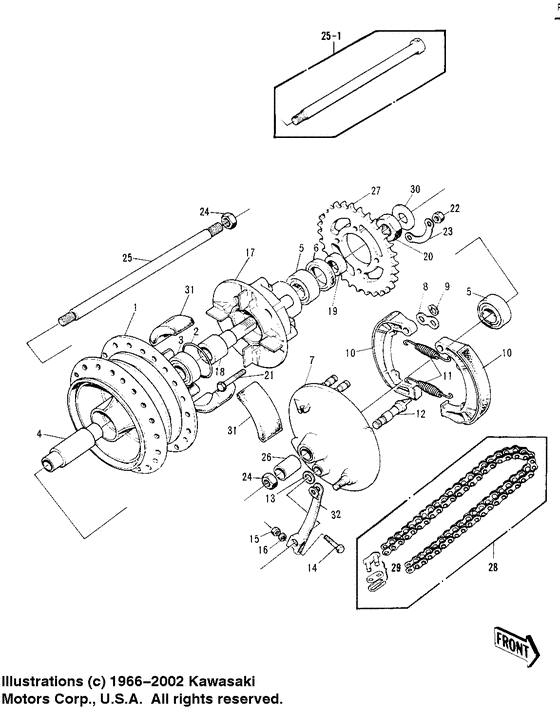

Rear hub/brake/chain Diagram Kawasaki Model "S" S2 Mach II
- Year
- 1972
- Model code
- S2
- Sales region
- USA
- Engine Capacity
- 350
- Model
- S2 Mach II
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42005-009 DRUM ASSY REAR BRAKEIncludes ref. #'s 1-16 |
42005-009 |
US $223.94 |
||
| replacement | |||||
|
1
|
1
41034-5001 DRUM-ASSY,RR BRKIncludes ref. #'s 1-16 |
41034-5001 |
US $587.84 |
||
|
2
|
2
671B2560 0 RING,60MM"0" ring,60mm; |
671B2560 |
from US $5.39 |
||
|
3
|
3
601B6205 BEARING BALL #6205Bearing ball #6205; |
601B6205 |
from US $13.81 |
||
|
4
|
4
42010-008 SPACER RR HUB BEARING |
42010-008 |
US $8.01 |
||
|
5
|
5
601B6205Z BEARING BALL #6205Z |
601B6205Z |
US $22.55 |
||
|
6
|
6
92052-006 SEAL-OILOil seal wtc35527; |
92052-006 |
US $14.41 |
||
| replacement | |||||
|
6
|
6
92049-1287 SEAL-OILOil seal wtc35527; |
92049-1287 |
from US $8.24 |
||
|
7
|
7
42006-007-80 PANEL-ASY,RR BRK,BUFFPanel-asy,rr brk,buff; Includes ref. #'s 7-16,32 |
42006-007-80 |
US $315.85 |
||
|
8
|
8
41045-007
WASHER,BRAKE SHOE
Washer,brake shoe; |
41045-007 |
— | ||
|
9
|
9
480J1400 CIRCLIP 14MMCirclip 14mm; |
480J1400 |
from US $1.11 |
||
|
10
|
10
42019-003 SHOE-BRAKE |
42019-003 |
US $89.86 |
||
| replacement | |||||
|
10
|
10
41048-1122 SHOE-BRAKE |
41048-1122 |
from US $83.98 |
||
|
11
|
11
41049-003
SPRING BRAKE SHOE
|
41049-003 |
— | ||
|
12
|
12
42026-015 CAM SHAFT,REAR BRAKECam shaft,rear brake; |
42026-015 |
US $41.56 |
||
|
13
|
13
41051001 DUST SHIELD BRAKE CAMDust shield brake cam; |
41051001 |
from US $3.17 |
||
|
14
|
14
112G0640
BOLT-UPSET,6X40
Bolt-upset,6x40; |
112G0640 |
— | ||
|
15
|
15
311B0600
NUT-HEX,6MM
Nut 6mm; |
311B0600 |
— | ||
| replacement | |||||
|
15
|
15
311AA0600 NUT-HEX,6MMNut 6mm; |
311AA0600 |
from US $0.63 |
||
|
16
|
16
410B0600
WASHER-PLAIN-SMALL
Washer plain 6mm; |
410B0600 |
— | ||
| replacement | |||||
|
16
|
16
410AA0600 WASHER-PLAIN-SMALLWasher plain 6mm; |
410AA0600 |
from US $0.79 |
||
|
17
|
17
42008-012 COUPLING ASSY,RR HUBCoupling assy,rr hub; Includes ref. #'s 17-23,31 |
42008-012 |
US $237.74 |
||
|
18
|
18
42036-006 SLEEVE REAR AXLE |
42036-006 |
US $23.18 |
||
|
19
|
19
42037-006 COLLER RR AXLE SLEEVE |
42037-006 |
US $25.56 |
||
|
20
|
20
42045-006 NUT SLEEVE |
42045-006 |
US $10.69 |
||
|
21
|
21
92003-087
BOLT-REAR SPROCKET
|
92003-087 |
— | ||
|
22
|
22
314B1000
NUT-HEX-FINE
Nut,10mm; |
314B1000 |
— | ||
| replacement | |||||
|
22
|
22
314AA1000 NUT-HEX-FINENut,10mm; |
314AA1000 |
from US $1.01 |
||
|
23
|
23
92088-005 WASHER, SPROCKET LOCKWasher sprocket lock; |
92088-005 |
from US $3.80 |
||
|
24
|
24
314B1600 NUT,16MMNut,16mm; 1 req'd for 42031-033 |
314B1600 |
US $2.11 |
||
|
25
|
25
42031-033 AXLE-REARS2 |
42031-033 |
US $77.56 |
||
|
26
|
26
42032-008 COLLAR REAR HUB R.H |
42032-008 |
US $19.73 |
||
|
27
|
27
42041-102 REAR SPROCKET 43T |
42041-102 |
US $111.29 |
||
|
28
|
28
92057-014 DR CHAIN 530X98Includes ref. # 29 |
92057-014 |
US $252.67 |
||
|
29
|
29
92058-008 CHAIN JOINT 530 |
92058-008 |
US $6.05 |
||
|
30
|
30
42046009 WASHER SLEEVEWasher sleeve; |
42046009 |
from US $5.54 |
||
|
31
|
31
42014-008
DAMPER REAR HUB SHOCK
|
42014-008 |
— | ||
|
32
|
32
42029-037
LEVER,REAR BRAKE CAM
Lever,rear brake cam; |
42029-037 |
— | ||
