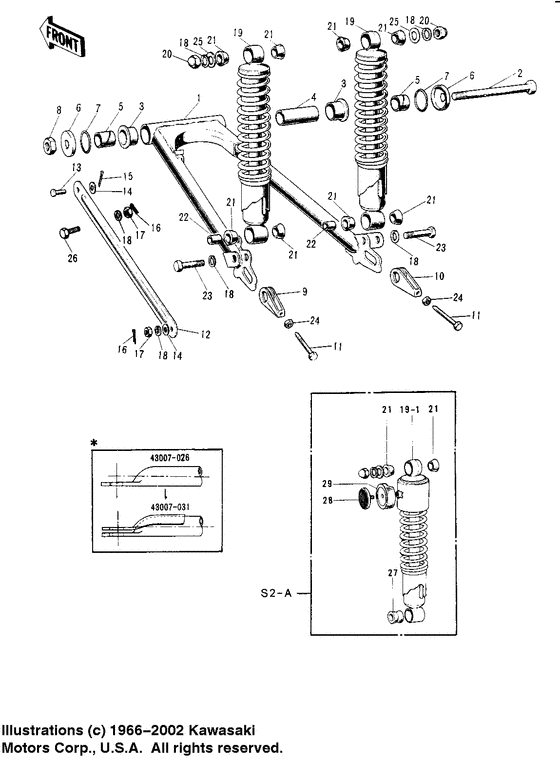

Swing arm/shock absorbers Diagram Kawasaki Model "S" S2 Mach II
- Year
- 1972
- Model code
- S2
- Sales region
- USA
- Engine Capacity
- 350
- Model
- S2 Mach II
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
*
|
*
43007-031 TORQUE LINK-RR BRAKE |
43007-031 |
US $25.31 |
||
|
1
|
1
33001-039 ARM-SWING |
33001-039 |
US $173.90 |
||
|
2
|
2
33032-037
SHAFT-SWING ARM PIVOT
|
33032-037 |
— | ||
|
3
|
3
33033009
BUSHING-SWING ARM
|
33033009 |
— | ||
|
4
|
4
33034-012 SLEEVE-SWING ARM,LONGSleeve-swing arm,long; |
33034-012 |
US $12.02 |
||
|
5
|
5
33034-013
SLEEVE-SWING ARM,SHRT
Sleeve-swing arm,shrt; |
33034-013 |
— | ||
|
6
|
6
33035-004
CAP-SWING ARM
|
33035-004 |
— | ||
|
7
|
7
671B2530 0 RING,30MM"0" ring,30mm; |
671B2530 |
from US $3.17 |
||
|
8
|
8
92019-011
NUT-LOCK,14MM
Nut-lock,14mm; |
92019-011 |
— | ||
|
9
|
9
33040-032
ADJUSTER CHAIN L.H
|
33040-032 |
— | ||
|
10
|
10
33040-033
ADJUSTER CHAIN R.H
|
33040-033 |
— | ||
|
11
|
11
92001-1399
BOLT,8X50
Bolt,8x50; |
92001-1399 |
— | ||
| replacement | |||||
|
11
|
11
92002-1076 BOLT,8X50Bolt,8x50; |
92002-1076 |
from US $6.34 |
||
|
13
|
13
43009001 PIN REAR TORQUE LINKPin rear torque link; Use for 43007-026 |
43009001 |
from US $4.91 |
||
|
14
|
14
410B1000
W-PLAIN-S
Washer plain 10mm; |
410B1000 |
— | ||
| replacement | |||||
|
14
|
14
410AA1000 W-PLAIN-SWasher plain 10mm; |
410AA1000 |
from US $0.81 |
||
|
15
|
15
550D2520 PIN COTTER 2.5X20Pin cotter 2.5x20; Use for 43007-026 |
550D2520 |
from US $1.27 |
||
| replacement | |||||
|
15
|
15
550AA2520 PIN-COTTER,2.5X20Pin cotter 2.5x20; Use for 43007-026 |
550AA2520 |
from US $0.63 |
||
|
16
|
16
554A0800 PIN-SNAPPin,snap; |
554A0800 |
from US $2.09 |
||
| replacement | |||||
|
16
|
16
554DA0800 PIN-SNAPPin,snap; |
554DA0800 |
from US $0.63 |
||
|
17
|
17
314B1000
NUT-HEX-FINE
Nut,10mm; |
314B1000 |
— | ||
| replacement | |||||
|
17
|
17
314AA1000 NUT-HEX-FINENut,10mm; |
314AA1000 |
from US $1.01 |
||
|
18
|
18
461F1000 WASHER SPRING 10MMWasher spring 10mm; |
461F1000 |
US $0.95 |
||
| replacement | |||||
|
18
|
18
461DA1000 WASHER-SPRINGWasher spring 10mm; |
461DA1000 |
from US $0.90 |
||
|
19
|
19
45014-062 SHOCK ABSBR RRS2 |
45014-062 |
US $134.59 |
||
|
20
|
20
92020-003 NUT SHOCK ABSORBERNut shock absorber; |
92020-003 |
from US $3.80 |
||
|
21
|
21
45017-001 BUSH SHCK ABS RUBBERS2 *, s2-a |
45017-001 |
from US $5.13 |
||
| replacement | |||||
|
21
|
21
45017-018
BUSHING,SHCK ABS RUB - N.L.A.
S2 *, s2-a |
45017-018 |
— | ||
|
22
|
22
45016003
BUSH SHCK ABS PVT SFT
Bush shck abs pvt sft; |
45016003 |
— | ||
| replacement | |||||
|
22
|
22
45017-011
BUSHING,SHCK ABSORBER
Bush shck abs pvt sft; |
45017-011 |
— | ||
|
23
|
23
113N1035 BOLT-UPSET |
113N1035 |
US $37.80 |
||
| replacement | |||||
|
23
|
23
112N1035 BOLT-UPSET |
112N1035 |
from US $1.40 |
||
|
24
|
24
312B0800
NUT-HEX-SMALL
|
312B0800 |
— | ||
| replacement | |||||
|
24
|
24
318AA0800 NUT-HEX-SMALL |
318AA0800 |
from US $0.92 |
||
|
25
|
25
92022-044 WASHER-PL-10.5X26X2.3Washer-pl-10.5x26x2.3; |
92022-044 |
from US $3.20 |
||
|
26
|
26
92003-096 BOLT,10X29Use for 43007-031 |
92003-096 |
from US $7.76 |
||
| replacement | |||||
|
26
|
26
92151-1876 BOLT,10X29Use for 43007-031 |
92151-1876 |
from US $7.13 |
||
|
27
|
27
45017-018
BUSHING,SHCK ABS RUB - N.L.A.
Bushing,shck abs rub; S2-a |
45017-018 |
— | ||
|
28
|
28
28001-030
REFLECTOR,REFLEX,REAR
Reflector,reflex,rear; S2-a, s2-a |
28001-030 |
— | ||
|
29
|
29
28016-002
DAMPER RUBBER-REFLEX
S2-a |
28016-002 |
— | ||
