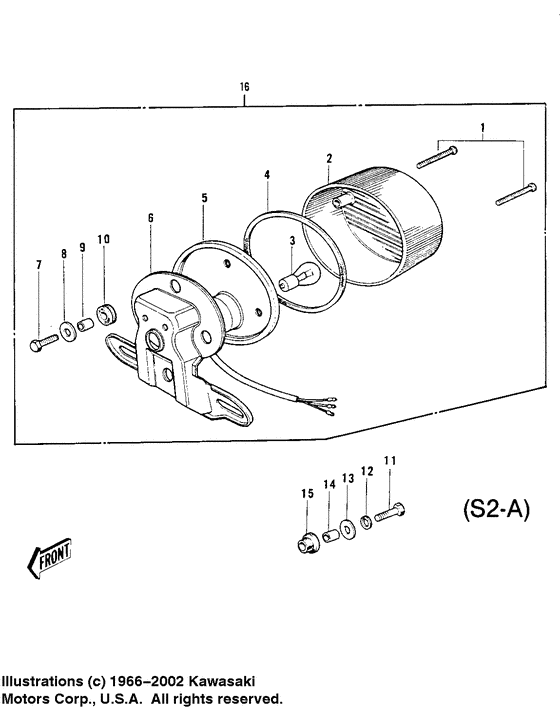

Taillight (S2-a) Diagram Kawasaki Model "S" S2 Mach II
- Year
- 1972
- Model code
- S2
- Sales region
- USA
- Engine Capacity
- 350
- Model
- S2 Mach II
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
220E0435
New Genuine Part
|
220E0435 |
— | ||
|
2
|
2
23026-023 LENS-TAIL LAMP |
23026-023 |
from US $63.30 |
||
|
3
|
3
92069-059 BULB,12V 32/3CPBulb,12v 32/3cp; |
92069-059 |
from US $5.70 |
||
|
4
|
4
23028-018
GASKET-TAIL LAMP LENS
|
23028-018 |
— | ||
|
5
|
5
23027-030
CASE,TAIL LAMP
Case,tail lamp; |
23027-030 |
— | ||
|
6
|
6
23036-022-21 BKT-LICENSE PLT,BLACKBkt-license plt,black; |
23036-022-21 |
US $112.32 |
||
|
7
|
7
112G0620
BOLT-UPSET
Bolt-upset,6x20; |
112G0620 |
— | ||
| replacement | |||||
|
7
|
7
112BA0620 BOLT-UPSETBolt-upset,6x20; |
112BA0620 |
from US $0.95 |
||
|
8
|
8
92022-125
WASHER 6.5X20X1.6T
Washer 6.5x20x1.6t; |
92022-125 |
— | ||
| replacement | |||||
|
8
|
8
92200-0283 WASHER,6.5X20X1.6Washer 6.5x20x1.6t; |
92200-0283 |
from US $0.72 |
||
|
9
|
9
92027-129 COLLAR,6.8X10X8.5Collar,6.8x10x8.5; |
92027-129 |
from US $3.17 |
||
|
10
|
10
92075-076 DAMPER RUBBERDamper rubber; |
92075-076 |
from US $3.48 |
||
|
11
|
11
112B0622
BOLT-UPSET
Bolt 6x22; |
112B0622 |
— | ||
| replacement | |||||
|
11
|
11
112BA0622 BOLT-UPSETBolt 6x22; |
112BA0622 |
from US $1.61 |
||
|
12
|
12
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
12
|
12
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
13
|
13
92022-125
WASHER 6.5X20X1.6T
Washer 6.5x20x1.6t; |
92022-125 |
— | ||
| replacement | |||||
|
13
|
13
92200-0283 WASHER,6.5X20X1.6Washer 6.5x20x1.6t; |
92200-0283 |
from US $0.72 |
||
|
14
|
14
92027-120 COLLAR 6.8X10X10.5Collar 6.8x10x10.5; |
92027-120 |
from US $3.17 |
||
|
15
|
15
92075-112 DAMPER RUBBERDamper rubber; |
92075-112 |
from US $2.85 |
||
|
16
|
16
23024-026-21 LAMP ASSY-TAIL,BLACKLamp assy-tail,black; |
23024-026-21 |
US $168.41 |
||
