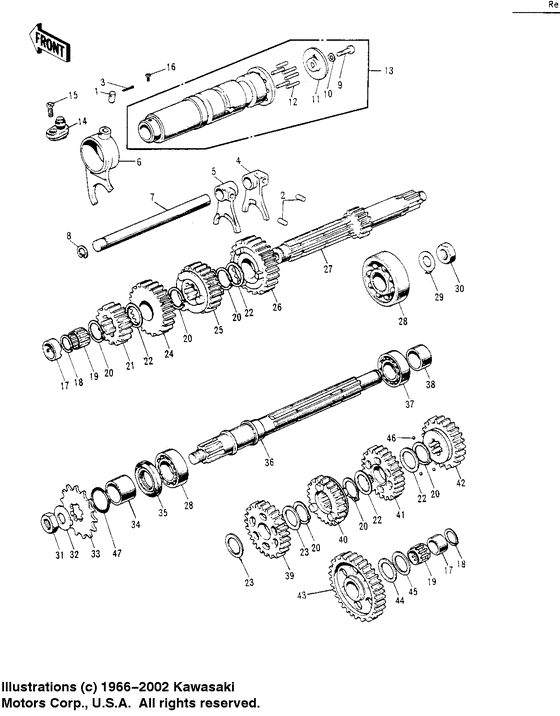

Transmission/change drum Diagram Kawasaki Model "S" S2 Mach II
- Year
- 1972
- Model code
- S2
- Sales region
- USA
- Engine Capacity
- 350
- Model
- S2 Mach II
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
92042-021 DOWEL PIN,8X18Dowel pin,8x18; |
92042-021 |
from US $7.92 |
||
|
2
|
2
92042-022 DOWEL PIN,8X16Dowel pin,8x16; |
92042-022 |
US $1.85 |
||
|
3
|
3
550D3020 PIN-COTTER,3.0X20Pin cotter 3.0x20; |
550D3020 |
US $1.11 |
||
| replacement | |||||
|
3
|
3
550AA3020 PIN-COTTER,3.0X20Pin cotter 3.0x20; |
550AA3020 |
from US $1.11 |
||
|
4
|
4
13140-053 SELECTOR FORK,LOWSelector fork,low; |
13140-053 |
US $89.01 |
||
|
5
|
5
13140-054 SELECTOR FORK,2ND&3RDSelector fork,2nd&3rd; |
13140-054 |
US $85.52 |
||
|
6
|
6
13140-037
FORK-SELECTOR,4TH&TOP
Fork-selector,4th⊤ |
13140-037 |
— | ||
|
7
|
7
13209-006 ROD-SHIFT |
13209-006 |
US $11.81 |
||
|
8
|
8
482J0100 CIRCLIP 10MMCirclip 10mm; |
482J0100 |
from US $1.11 |
||
|
9
|
9
220B0614
SCREW-PAN-CROS,6X14
Screw pan head 6x14; |
220B0614 |
— | ||
| replacement | |||||
|
9
|
9
220AA0614 SCREW-PAN-CROS,6X14Screw pan head 6x14; |
220AA0614 |
from US $0.95 |
||
|
10
|
10
464H0600
WASHER LOCK 6MM
|
464H0600 |
— | ||
|
11
|
11
13142-008 PLATE CHANGE DRUM PIN |
13142-008 |
US $2.95 |
||
|
12
|
12
92042-014 PIN GEAR CHANGE DRUMPin gear change drum; |
92042-014 |
from US $0.75 |
||
|
13
|
13
13239-003 DRUM ASSY-GEAR CHANGE |
13239-003 |
US $168.41 |
||
|
14
|
14
13151-021
SWITCH,NEUTRAL
Switch,neutral; |
13151-021 |
— | ||
|
15
|
15
221B0616 SCREW-CSK-CROSScrew cntsnk hd 6x16; |
221B0616 |
from US $0.34 |
||
| replacement | |||||
|
15
|
15
221AA0616 SCREW-CSK-CROSScrew cntsnk hd 6x16; |
221AA0616 |
from US $0.92 |
||
|
16
|
16
211B0406A SCREW PAN HEAD 4X6 |
211B0406A |
US $6.30 |
||
| replacement | |||||
|
16
|
16
211B0406 SCREW PAN HEAD 4X6 |
211B0406 |
US $0.63 |
||
|
17
|
17
92028-043 BUSH TRANSMMISION SFT |
92028-043 |
US $29.18 |
||
|
18
|
18
92033-009 CIRCLIP 17MM |
92033-009 |
US $2.66 |
||
|
19
|
19
92046-005 BEARING NEEDLE |
92046-005 |
US $14.13 |
||
|
20
|
20
92033-025 CIRCLIP,25MMCirclip,25mm; |
92033-025 |
from US $3.73 |
||
|
21
|
21
13130-028 2ND GEAR-DRIVE SHAFT |
13130-028 |
US $81.77 |
||
|
22
|
22
92024-034 WASHER-LOCK |
92024-034 |
from US $1.91 |
||
|
23
|
23
92024-035 WASHER-LOCK |
92024-035 |
US $6.46 |
||
|
24
|
24
13136-038 TOP GEAR-DRIVE SHAFT |
13136-038 |
US $84.24 |
||
|
25
|
25
13132-027 3RD GEAR-DRIVE SHAFT |
13132-027 |
US $137.43 |
||
|
26
|
26
13134-013 4TH GEAR-DRIVE SHAFT |
13134-013 |
US $115.61 |
||
|
27
|
27
13127-034 SHAFT-DRIVE |
13127-034 |
US $279.04 |
||
|
28
|
28
92045-010 BEARING-BALL,#6205NX3 |
92045-010 |
US $22.86 |
||
| replacement | |||||
|
28
|
28
92045-1013 BEARING-BALL,#6205NX3 |
92045-1013 |
from US $20.75 |
||
|
29
|
29
92024-046
WASHER-LOCK,14MM
Washer-lock,14mm; |
92024-046 |
— | ||
|
30
|
30
315B1400 NUT,14MMNut 14mm; |
315B1400 |
US $3.65 |
||
| replacement | |||||
|
30
|
30
315AA1400 NUT,14MMNut 14mm; |
315AA1400 |
from US $1.24 |
||
|
31
|
31
92015-019 NUT 18MMNut 18mm; |
92015-019 |
from US $4.80 |
||
|
32
|
32
92024-067
WASHER,LOCK,18MM
Washer,lock,18mm; |
92024-067 |
— | ||
|
33
|
33
13144-035
ENGINE SPROCKET 15T
|
13144-035 |
— | ||
| replacement | |||||
|
33
|
33
13144-030
ENGINE SPROCKET 15T
|
13144-030 |
— | ||
|
34
|
34
92026-1024
SPACER-ENG SPROCKET
|
92026-1024 |
— | ||
|
35
|
35
92050-024
SEAL-OIL,HTC 32 52 10
Oil seal sc325210; |
92050-024 |
— | ||
| replacement | |||||
|
35
|
35
92049-1506 SEAL-OIL,HTC 32 52 10Oil seal sc325210; |
92049-1506 |
from US $5.23 |
||
|
36
|
36
13128-5004 SHAFT,OUTPUTShaft,output; |
13128-5004 |
US $159.80 |
||
|
37
|
37
601B6005 BEARING BALL #6005Bearing ball #6005; |
601B6005 |
from US $10.93 |
||
|
38
|
38
92027-135 COLLAR |
92027-135 |
US $5.06 |
||
|
39
|
39
13131-034
2ND GEAR-OUTPUT SHAFT
|
13131-034 |
— | ||
|
40
|
40
13137-022
TOP GEAR-OUTPUT SHAFT
|
13137-022 |
— | ||
|
41
|
41
13133-027 3RD GEAR-OUTPUT SHAFT |
13133-027 |
US $94.36 |
||
|
42
|
42
13135-017 4TH GEAR-OUTPUT SHAFT |
13135-017 |
US $93.65 |
||
|
43
|
43
13129-038 LOW GEAR-OUTPUT SHAFT |
13129-038 |
US $139.09 |
||
|
44
|
44
92026-021 WASHER THRUST |
92026-021 |
US $9.97 |
||
|
45
|
45
92022-075 WASHER 17MM |
92022-075 |
US $6.80 |
||
|
46
|
46
600A0500 BALL STEEL 5/32'Ball steel 5/32'; |
600A0500 |
from US $0.91 |
||
|
47
|
47
92055-035 O-RING"o" ring; |
92055-035 |
from US $3.01 |
||
